Installation Guide 5
E444xAU IF Output Options E444xAU Options H20, H25 and H70
Installation Procedure
Installation Procedure
Removing the Feet, Handles and Covers
NOTE Keep all of the hardware (screws, nuts, etc.) for re-use when installing the
assemblies.
Follow the steps outlined below to install the Option IF Output retrofit kit.
1. Remove the four rear panel feet on the PSA, using a #20 Torx driver. Refer to
Figure 1. Upon re-installation torque to 21 in-lb.

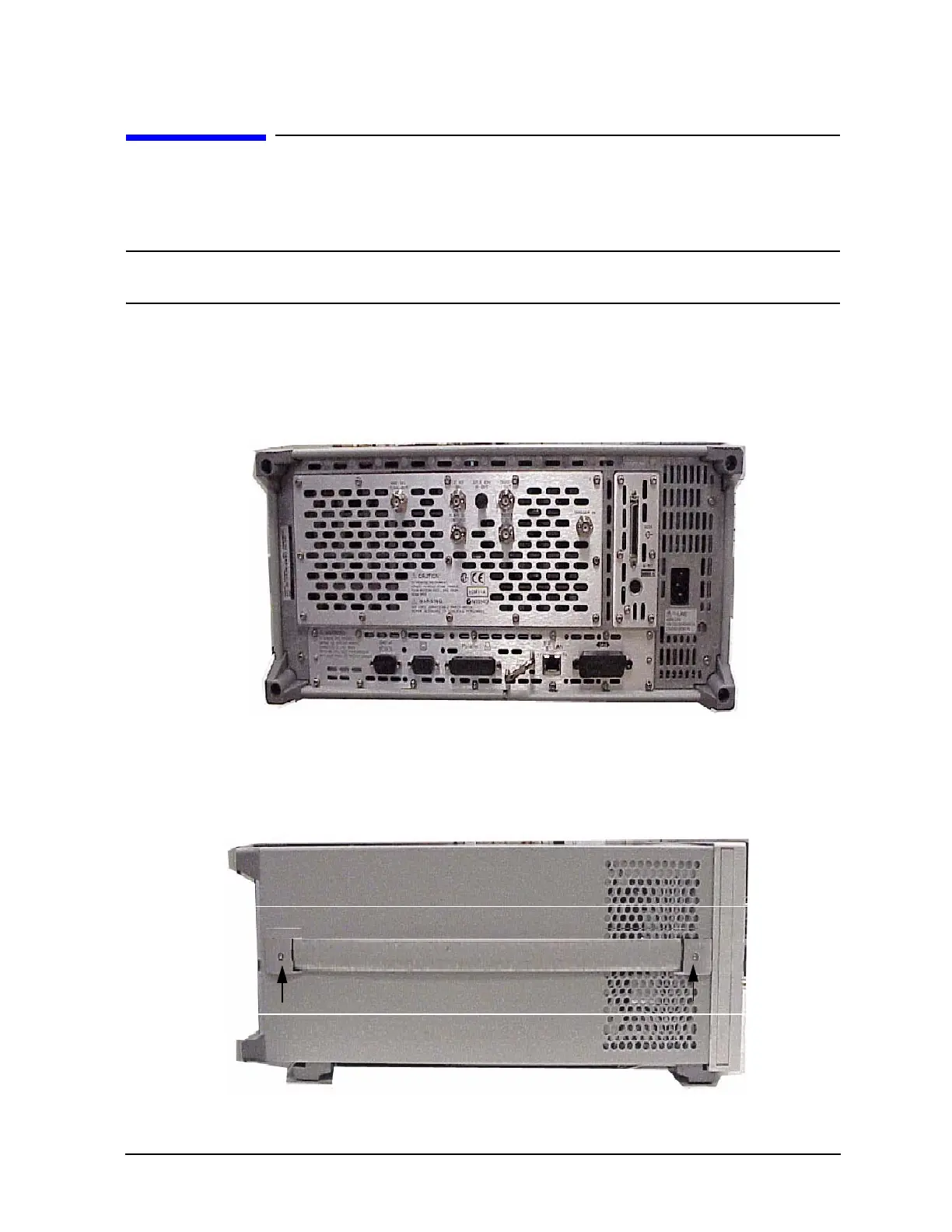

Figure 1 Rear Panel Feet
2. Remove the two side handles on the PSA, using a #20 Torx driver. Refer to
Figure 2. Upon re-installation torque to 21 in-lb.
Figure 2 Side Handles
