Agilent Technologies E4445A Installation Guide

Installation Guide 11
E444xAU IF Output Options E444xAU Options H20, H25 and H70
Installation Procedure
Installing the Rear Panel with H7L or HNQ
1. Connect the BNC and SMA connectors as labeled in step 7 on Page 8, using the
previously removed hardware. Carefully route the new cables (W41 and W52) through
the rear frame, near Slot 2. (To be connected to the Option IF board later in this
procedure). Refer to Figure 12 on page 13.
2. Connect the new rear panel plate to the rear panel, using the previously removed
screws. Torque to 9 in-lb.
3. Partially insert the Option IF board into Option Slot 2. See Figure 9.

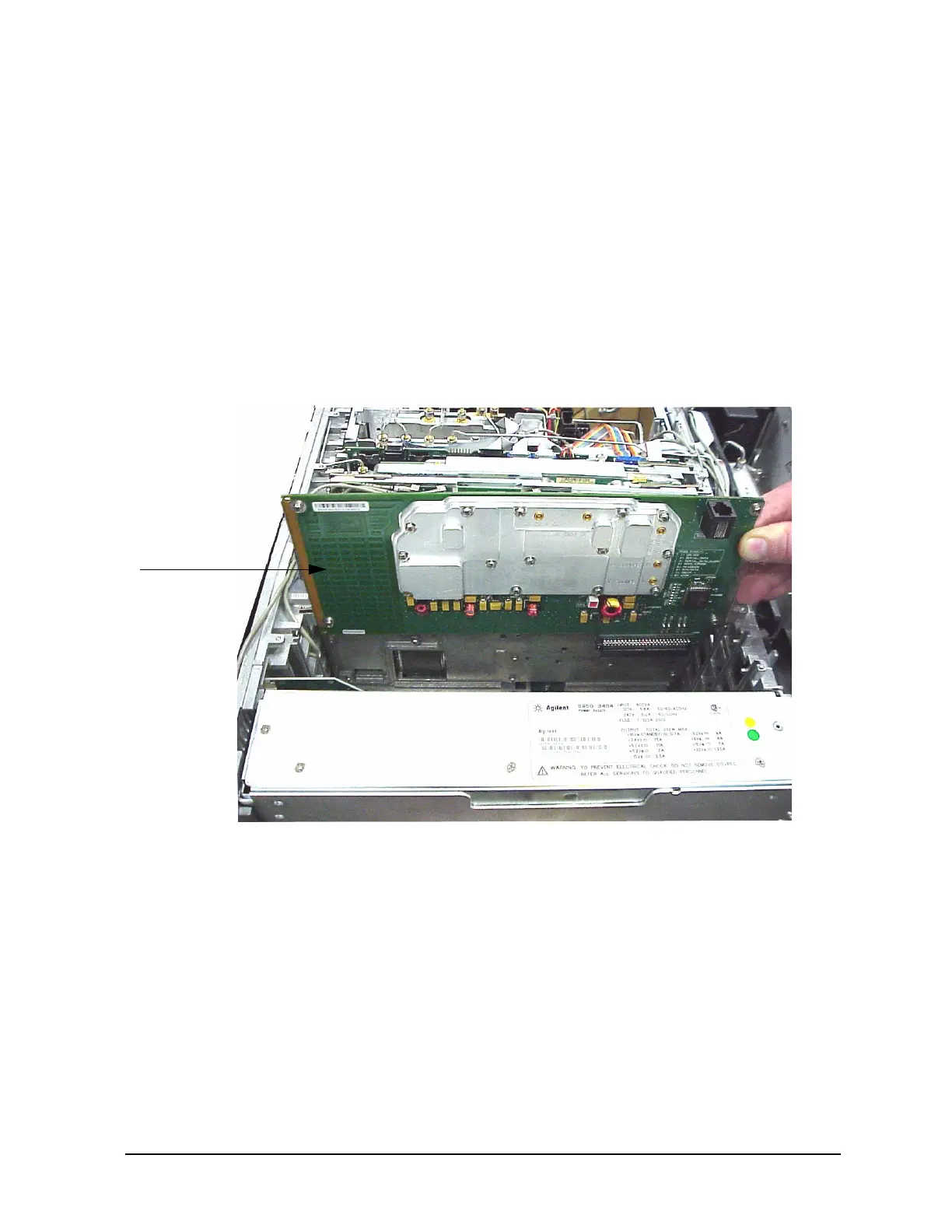

Figure 9 Option IF Board Insertion
Option IF
Out Board
