14 Installation and Operation Guide
1 Introduction
Part Identification

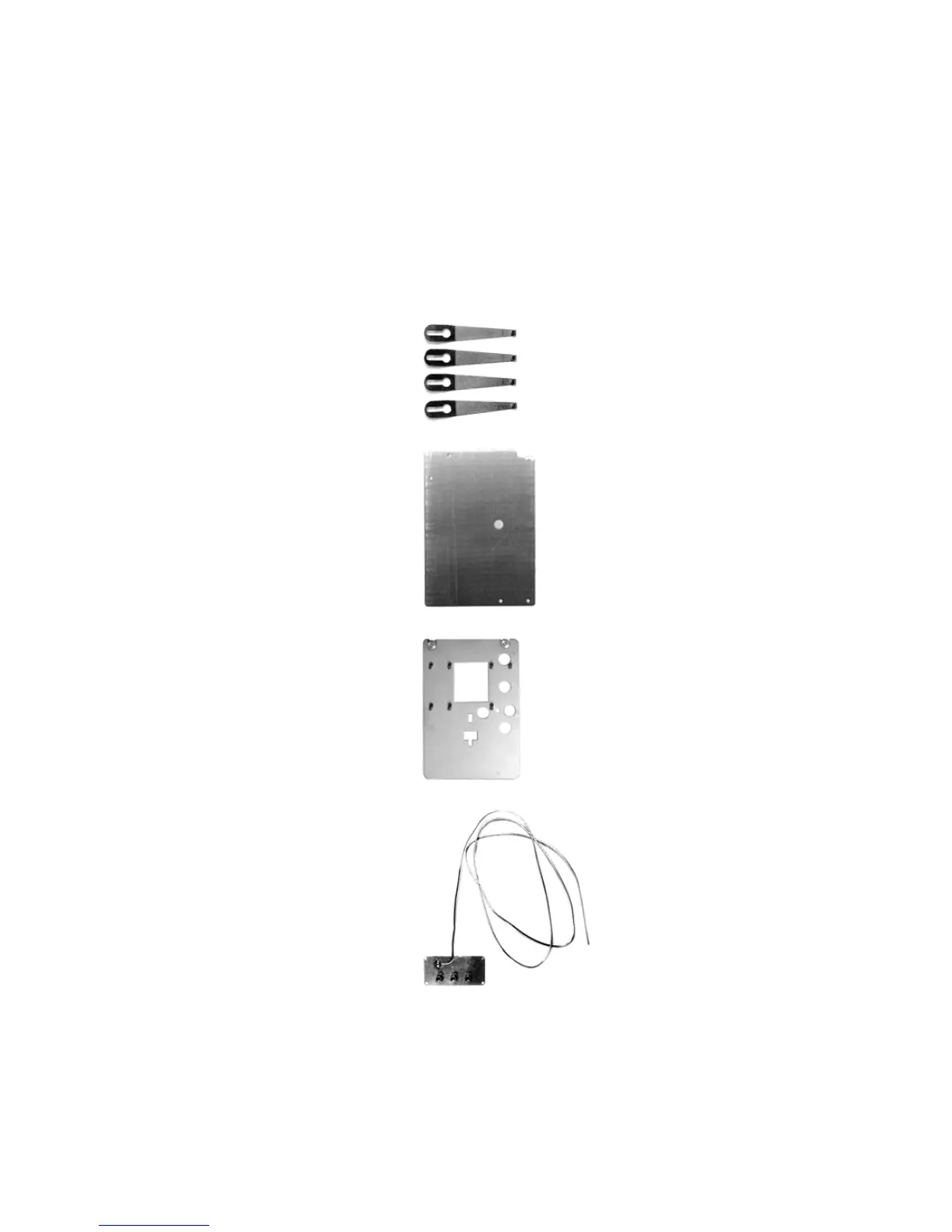

Most of the kit parts are easily recognized. The unique ones are identified in
Figure 2.
Figure 2 Part identification
Capillary column
spring clips
Valve box
Oven bracket
Compact splitter
blanking plate
assembly
with makeup gas
assembly
This assembly is shipped in a
plastic bag to keep contaminants
out of the tubing and the fittings.
Do not open the bag until you are
ready to install the splitter.
