Display Annunciators

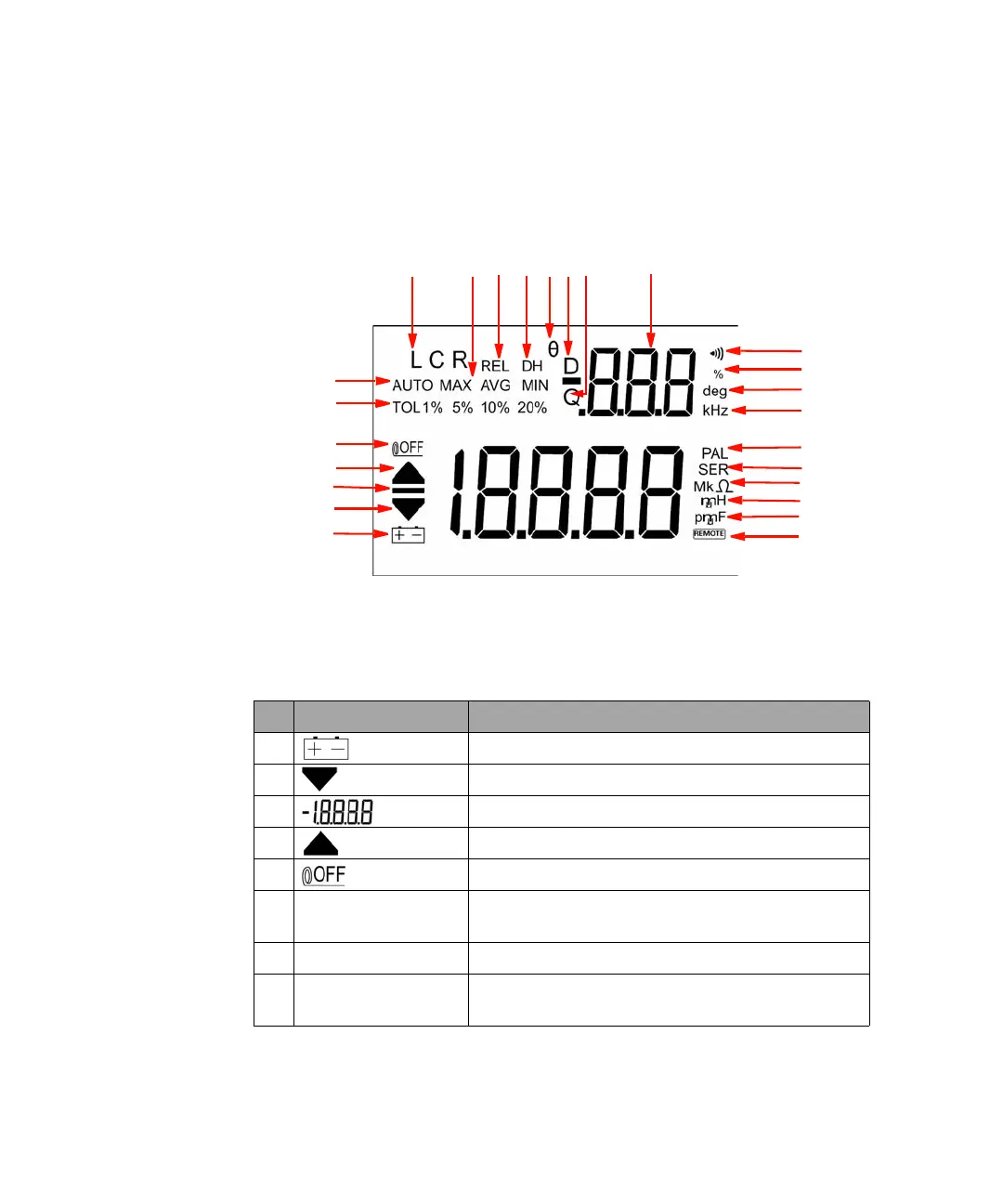

Figure 1-2 LCD display
Table 1 - 1 Descriptions of each annunciator
No. Symbols Descriptions
1 Low battery indicator
2 Reading out of LO limit
3 Primary display
4 Reading out of HI limit
5 Auto power off indicator
6
TOL 1% 5% 10% 20% Tolerance mode, to set 1%, 5%, 10%, and 20% for sorting
capacitance
7 AUTO AUTO range
8
C Inductance, Capacitance, or Resistance (L,C, or R) function
indicator
15
5
4
3
2
6
1
8
17
21
23
24
7
11
14
20
22
25
16
18
19
13
10
12
9
