return the sensor to it’s original elevation. This feature is a valuable asset when building ditch
banks, house pads or when leveling extremely large acreage using two transmitters set at
different elevations.
SLEEP:
Pressing the SELECT button will, after a short delay, put the MODEL 304 into the SLEEP
mode. Though the display goes dark, all changes made will be stored as default until repro-
grammed.

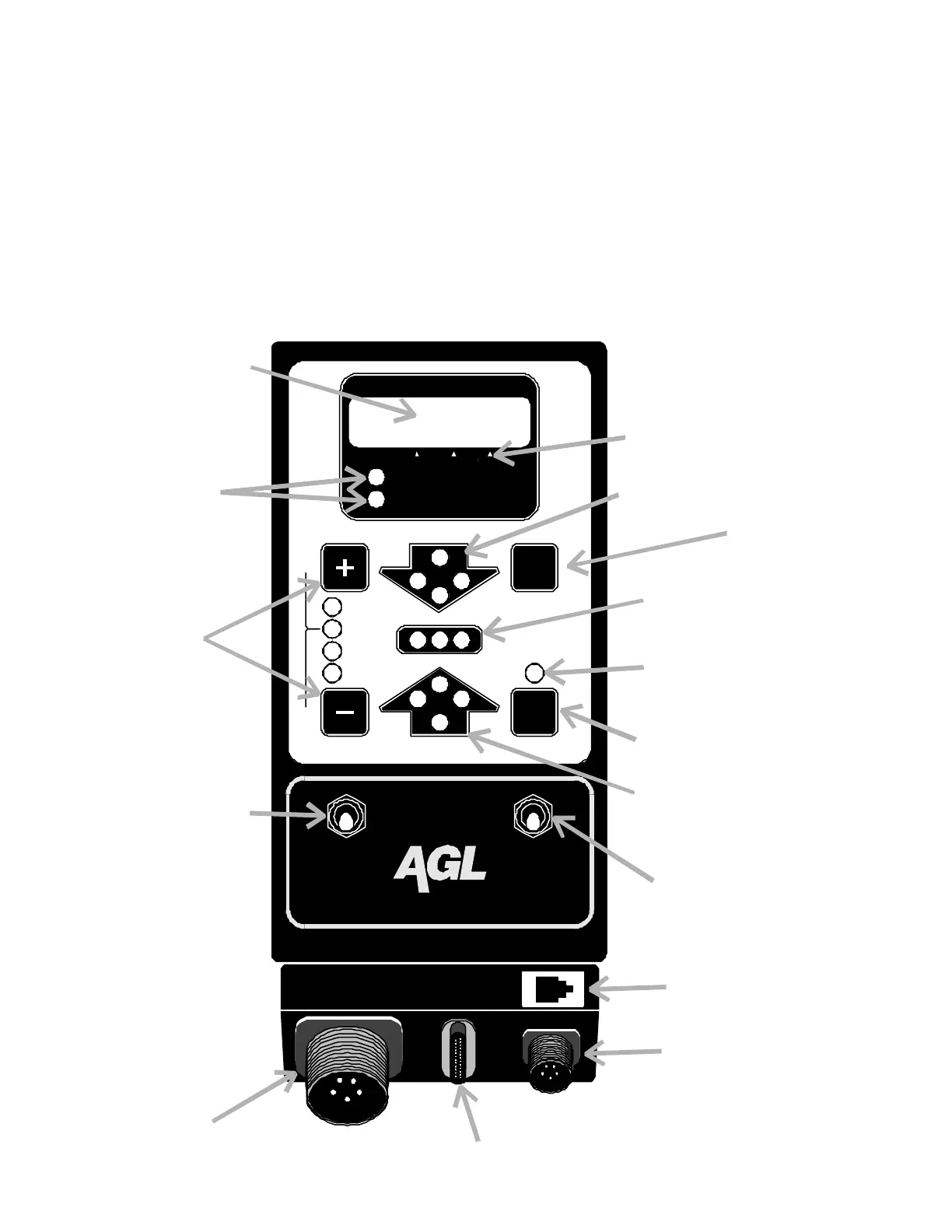

METERS
