02. TESTING THE AFT SUPERSTRUCTURE ELECTRONICS
02

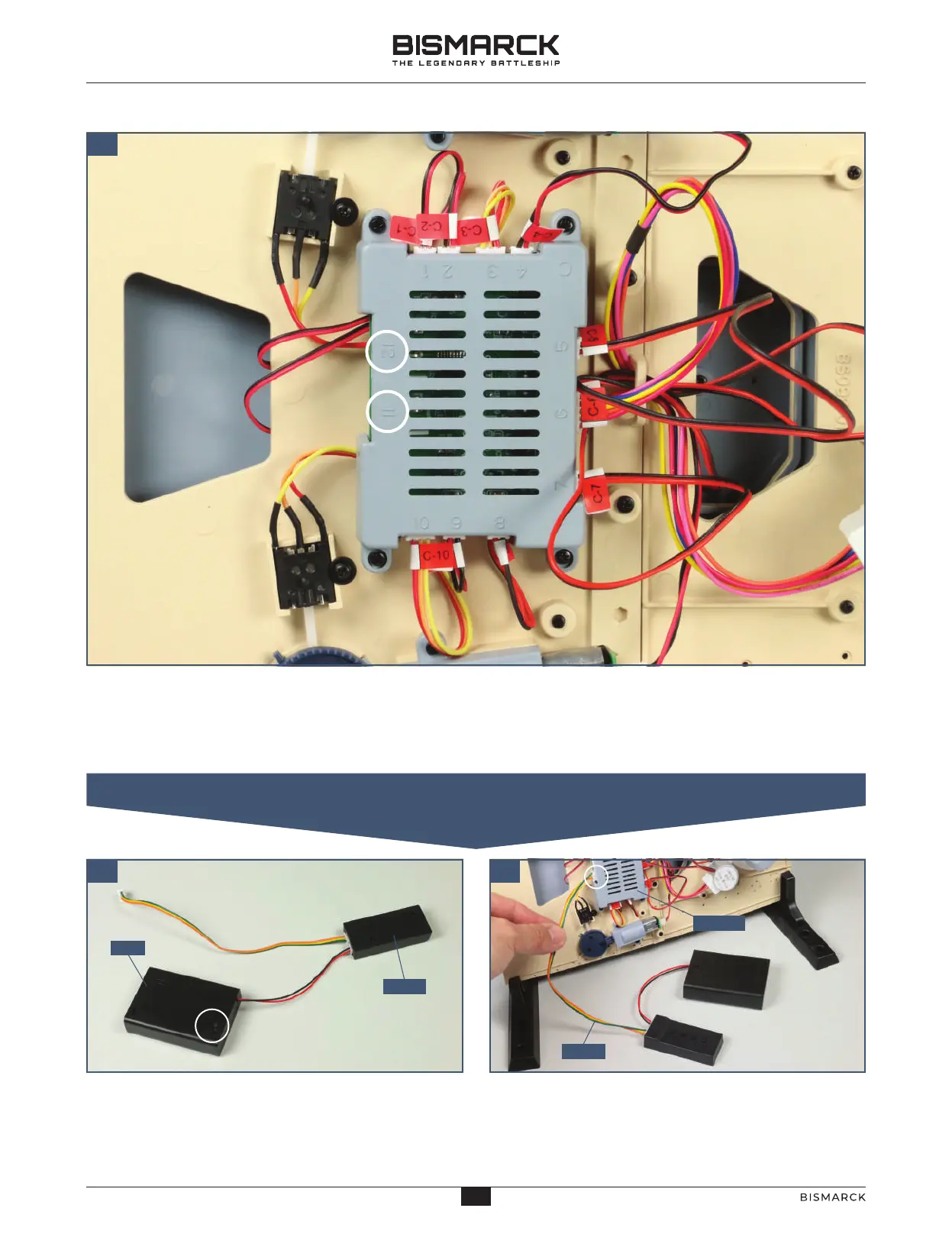

Fit the connectors on the 10 cables to the corresponding ports on the circuit board:
The cable labelled C-1 goes into port 1 on the circuit board; cable C-2 goes into port 2,
and so on. Continue up to the cable labelled C-10, which goes into port 10. The two ports 11
and 12 (circled) remain unused for the time being.
Take the tester box 18-01 and the battery
box 4-07. Check that the switch on the
battery box (circled) is off.
Connect the tester cable 18-02 to port 11 (circled) on
the circuit board 119-01.
12
11
