03
05

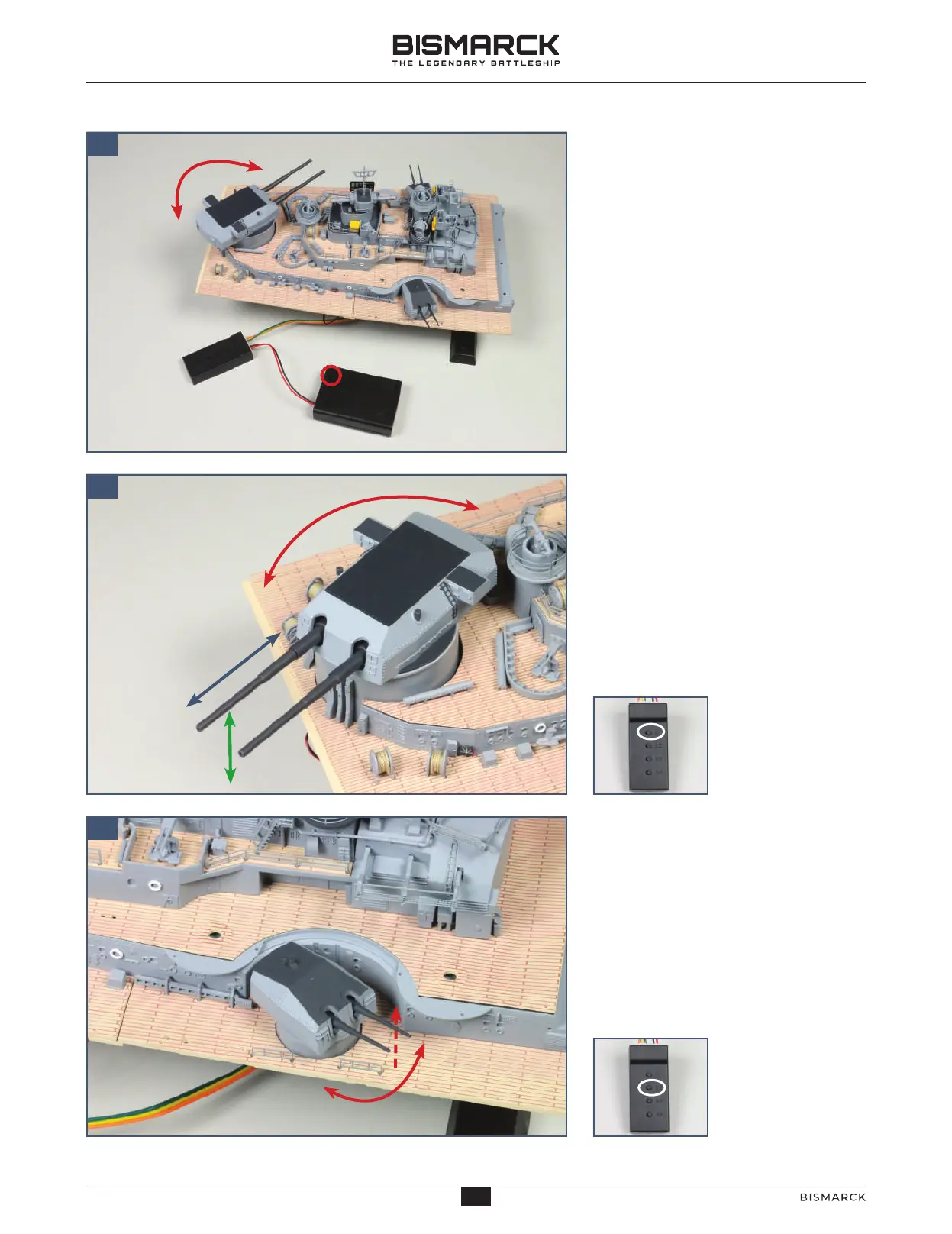

Position the aft superstructures on
suitable supports so that the swivel
gear can rotate freely. (You can place
it on the hull, if preferred.) Turn the
switch on the battery box to “On”
(circled): the initialization process will
start. During initialization, the turret
turns fully to port, remains there for
a few seconds and then returns to
the starting position.
Note: you cannot operate all the
functions during initialization.
To test the two 15cm guns, press button
S2 on the tester box 18-01 (inset below).
The two turrets swivel. Press the button
again to end the test. When fully
rotated, the guns may pause for a few
seconds before re-starting.
NOTE: Choose a suitable elevation for
the gun barrels before starting the test
(red dotted arrow).
When initialization is complete, press
the S1 button on the tester box 18-01
(inset below). This starts the turret test.
All three turret functions are carried
out simultaneously: rotating (red
arrow), elevating (green arrow) and
firing (blue arrow). To end the test,
press the S1 button again.
04
13
13
AGORAMODELS BISMARCK
14
AGORAMODELS BISMARCK
