Agora Models Bismarck - Page 15

01. FITTING THE TWO OUTER PROPELLERS
01 02
12101
PM
2 x 4
PM
2 x 3
12103
12102
PM
2 x 4
B
A
A
11501
PM
PM

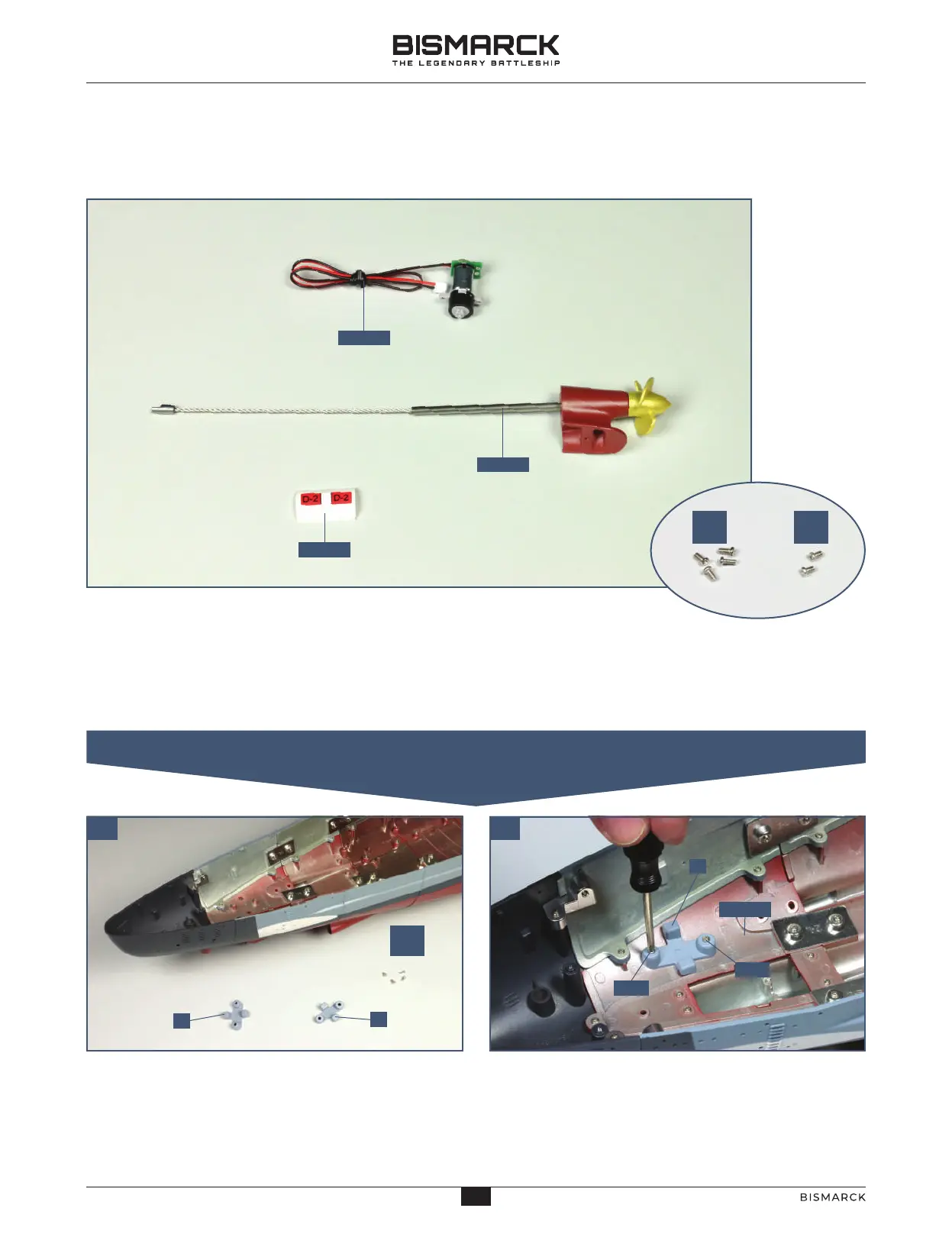

STAGE 121
THE CENTRAL PROPELLER
COMPONENTS CHECKLIST
121-01: Motor for the propellers
121-02: Central propeller with
shaft, support and sleeve
121-03: Cable label (D-2)
PM: Four 2 x 4mm PM screws
PM: Two 2 x 3mm PM screws
NOTE: You will also need all the parts
supplied with stage 120. The 2 x 3mm
PM screws are not used in this stage,
so store them safely for later.
Fit the bracket marked L on the two pegs located on
the port side of the keel section 115-01. Fix in place
with two 2 x 4mm PM screws, as shown.
Place your model on your work surface so that you
can access the stern of the hull. Take the brackets A
and B (marked L and R) from the frame 120-03. You
will also need four 2 x 4mm PM screws.
15
15
