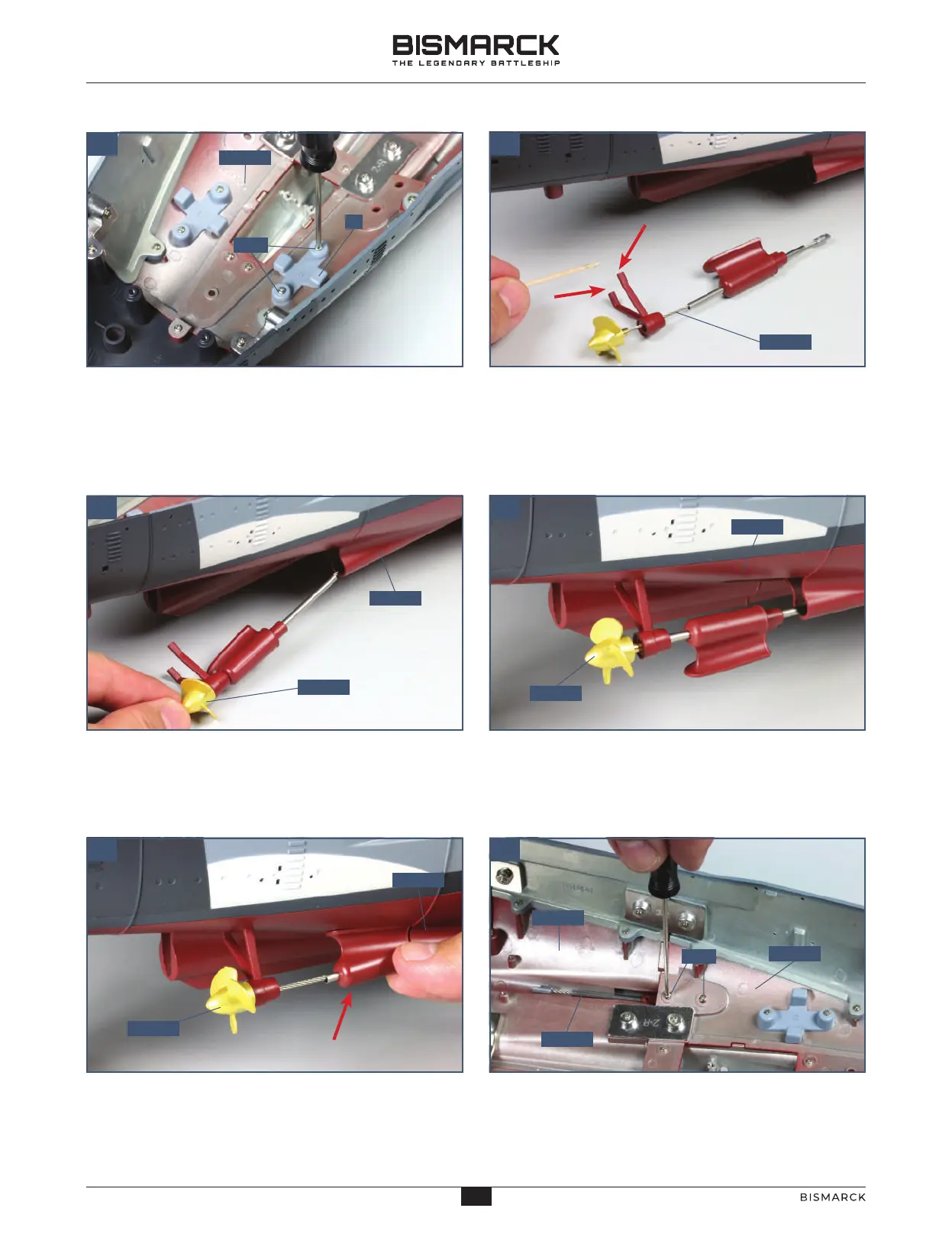

Similarly, fit the bracket marked R on the pegs on the
starboard side of the keel section 115-01. Fix in place
with two 2 x 4mm PM screws.
Take the starboard propeller 120-02 and check how
it fits on the starboard side of the hull (see also next
step). Apply a little superglue on the flat ends of the
brackets (arrows).
Thread the end of the shaft of the propeller through
the opening in keel section 111-01, as shown.
Position the propeller 120-02 so that the two ends of
the shaft bracket can be glued into the holes in keel
section 115-01.
Turn the support on the propeller 120-02 (arrow)
so that the flat side is against the hull and slide it
forwards, against the opening in keel section 111-01.
Working from inside the hull, fix the support
for the propeller 120-02 in place with two
2 x 4mm PM screws
