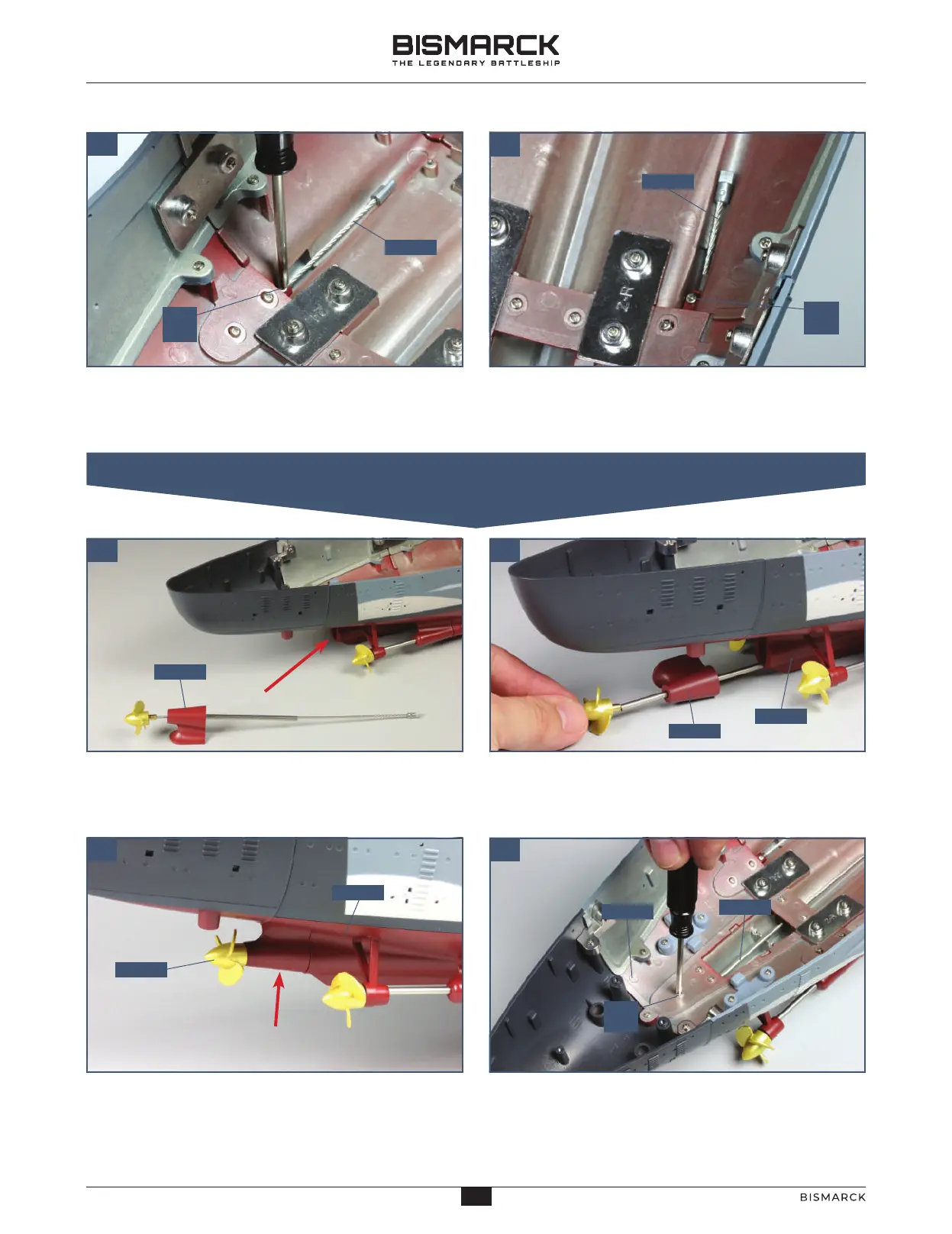

Insert the end of the propeller shaft 121-02 into the
opening in the propeller housing 115-04, as shown.
01
PM
2 x 3
11504
PM
2 x 4
12001
PM
2 x 3
12002
12102
12102
12102
12102
11501
11504
04
03. FITTING THE CENTRAL PROPELLER
02
04
Take the central propeller 121-02 and identify the hole
at the aft of the hull where it fits (arrow).
Fix the fine metal sleeve on the port propeller 120-01
in position by screwing a 2 x 3mm PM screw into the
hole in the shaft sleeve, as shown.
Similarly fit the metal sleeve on the starboard
propeller 120-02 in position with a 2 x 3mm PM
screw.
Fit the support for the propeller 121-02 (indicated by
the arrow) against the opening in part 115-04.
From inside the hull, fix the support for the propeller
121-02 to the keel section 115-01 using a 2 x 4mm PM
screw, as shown.
