Agora Models Bismarck - Page 19

05
Completed work
The three propellers have been fitted to the hull.
The propeller motor will be fitted in the next stage.
09
07
11504
12102
PM
2 x 4
12102
12102
C
12102
C
12103
12101
06
08
09

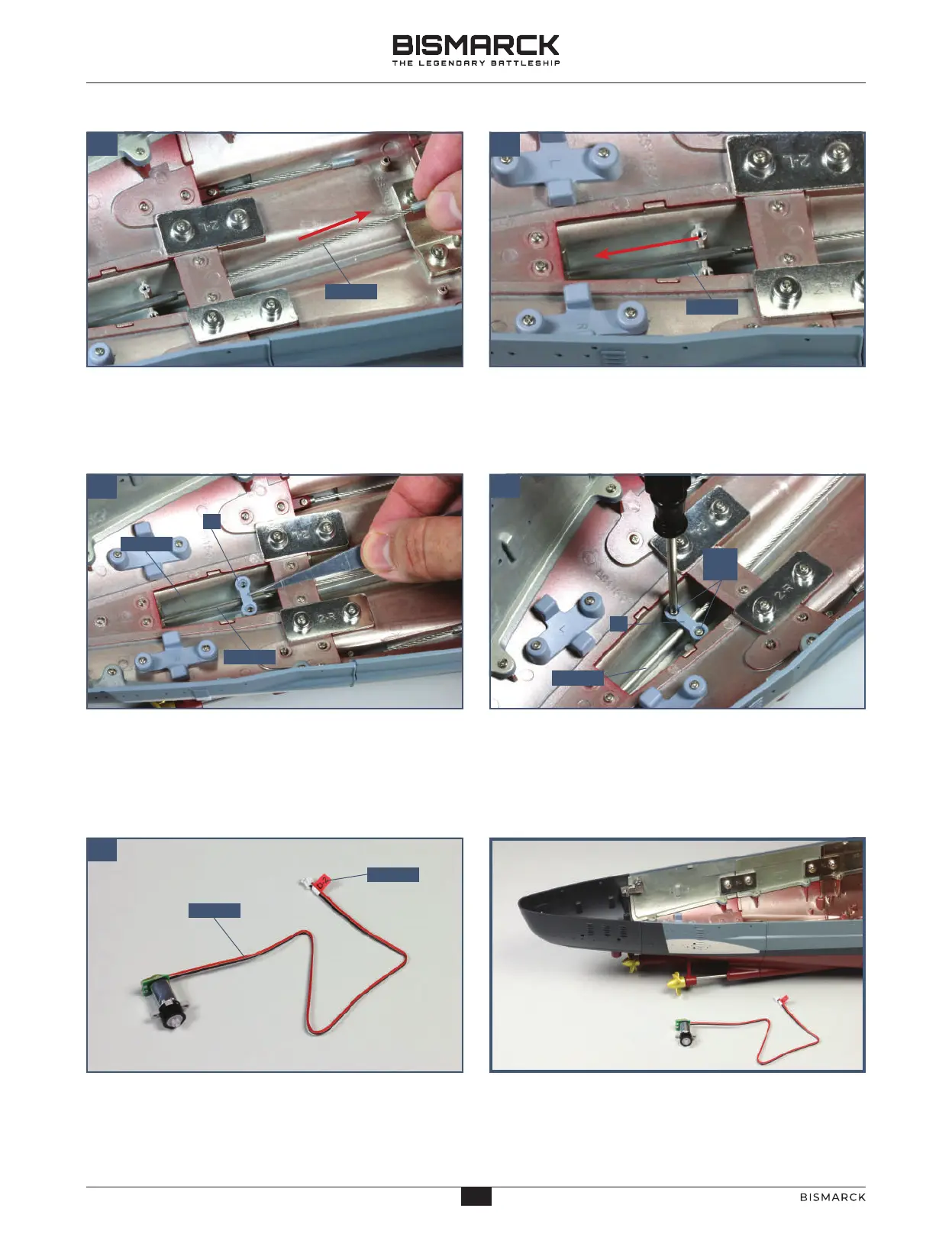

Take the propeller grip C from frame 120-03
(supplied with the previous stage) and fit it on to the
two small pegs in the propeller housing 115-04, over
the metal tube of the propeller 121-02, as shown.
Fix the sleeve of the central propeller 121-02
in position using two 2 x 4mm PM screws.
At the same time, slide the fine metal sleeve on the
propeller 121-02 as far as possible aft (to the left in the
photo).
Pull the end of shaft 121-02 forwards as far as it will go
(on the right in the photo) so that the middle
propeller is against the support.
Attach the cable label 121-03 (D2) to the cable of
the motor for the propellers 121-01 near the
connector, as shown.
