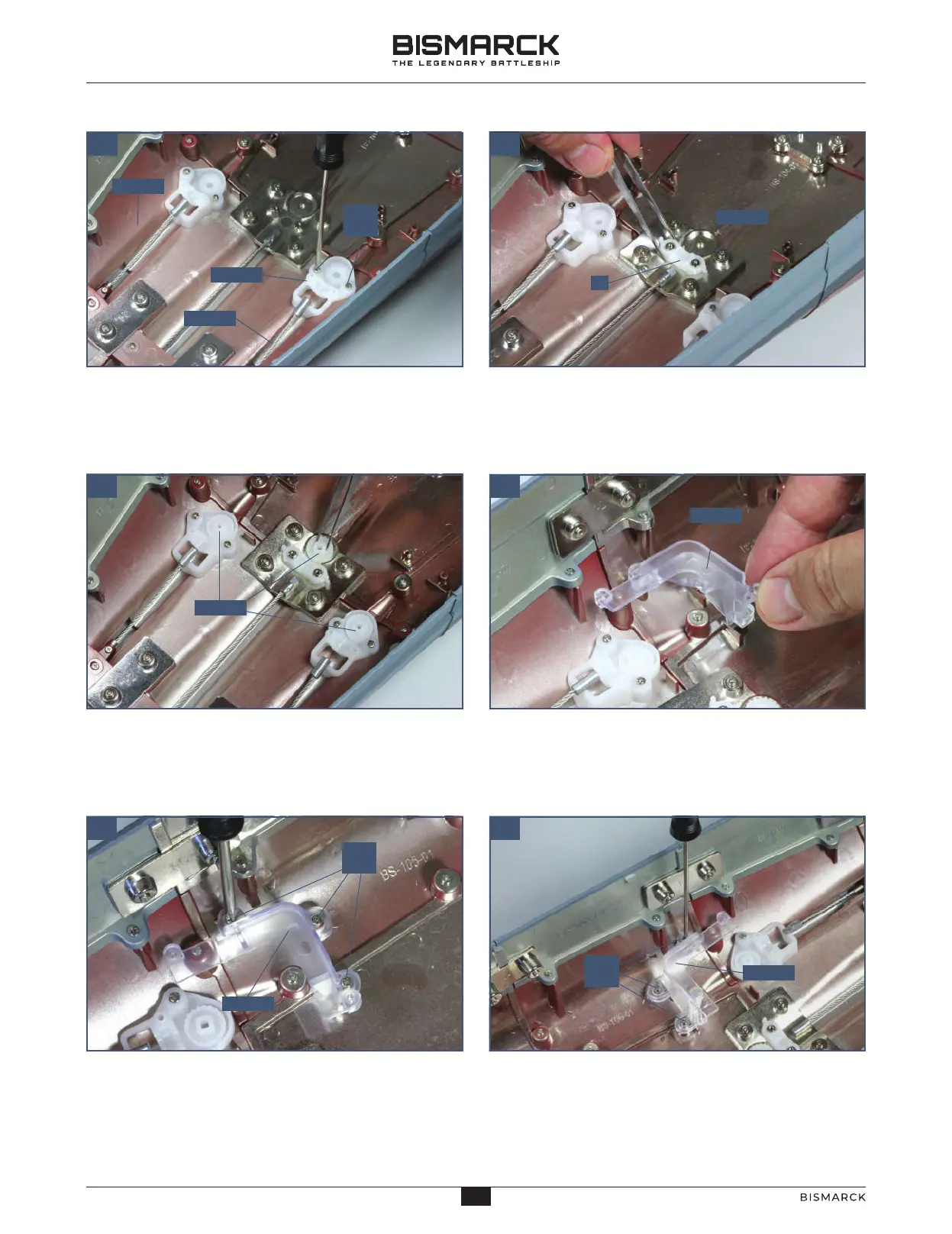

Position the starboard cog housing 122-11 in front
of the starboard shaft 120-02 and fix it to the keel
section 111-01 with two 2 x 4mm PM screws.
Remove the bracket C from the frame 122-13 and
fit it onto the two raised screw sockets of connector
111-02.
Fit the three cogs 122-09 into the circular recesses
in the two cog housings 122-10 and 122-11, and
into the recess in the connector 111-02, as shown.
Take the port gearbox support 122-01 (labelled L) and
position it in the hull on the port side: three screw
holes in the lower tabs align with raised screw sockets
in the hull.
Fix the port gearbox support 122-01 in place
in the hull using three 2 x 4mm PM screws.
Similarly, fix the starboard gearbox support 122-02
in place in the starboard side of the hull using three
2 x 4mm PM screws. (In this photograph, the hull is
viewed from the other side.)
07 08
0403
12202
11101
12201
12201
12002
12211
PM
2 x 4
11102
C
12209
PM
2 x 4
PM
2 x 4
