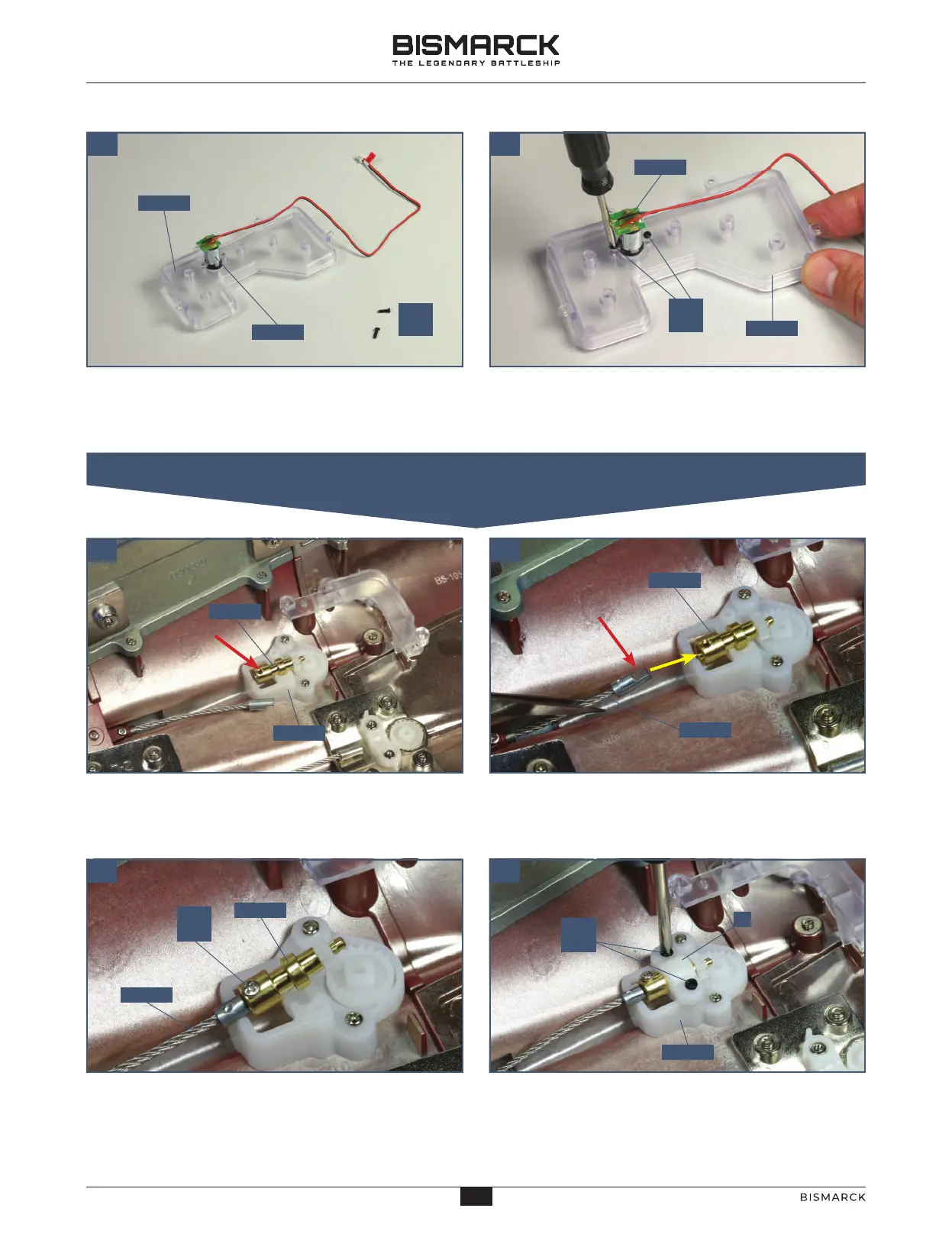

Take the lower part of the gearbox 122-04 and two
2 x 6mm PB screws. Fit the motor 121-01 in the recess
of the lower part of the gearbox as shown.
03 04
When the end of the shaft 120-01 is fitted into part
122-12, fix it in place with a 2 x 3mm PM screw.
Take one of the grips, A, from frame 122-13 and
position it on the cog housing, over the pivot pin
122-12. Fix in place with two 2 x 4mm PB screws.
01
02
Fit the first pivot pin 122-12 into the port cog housing
122-10. Make sure that the hole in the pin faces
upwards (arrow).
Grip the end of shaft 120-01 with the flattened
side of the end facing upwards (red arrow). Fit it into
the open end of the pivot pin 122-12 (yellow arrow).
Fix the motor 121-01 in place in the lower part
of the gearbox 122-04 using the two 2 x 6mm PB
screws, as shown.
09 10
12101
12204
12101
12210
12212
12001
12001
12212
PB
2 x 6
12204
12212
A
12210
02. FITTING THE COG SHAFTS
