Agora Models Bismarck - Page 24

01

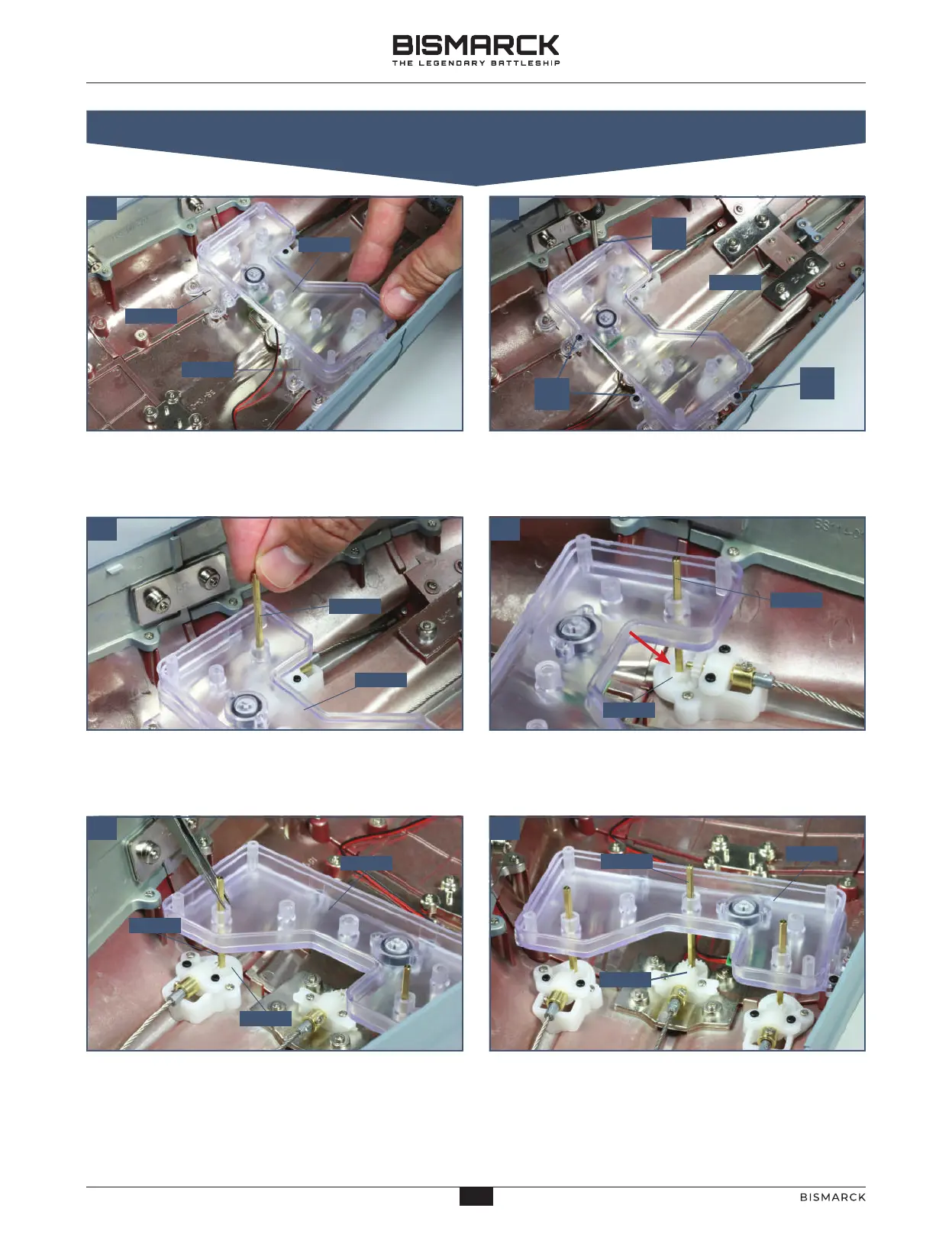

Fit the lower part of the gearbox 122-04 on the two
supports 122-01 and 122-02, as shown.
Fix the lower part of the gearbox 122-04 to
the two supports using four 2 x 4mm PB screws,
as shown.
02
Take one of the cog shafts 122-14 and fit it into
the aft starboard hole in the lower part of the
gearbox 122-04.
Press the shaft 122-14 through so that the lower
end fits into the central hole on cog 122-09 (arrow).
Fit the cog shaft 122-15 into the hole at the centre of
the lower part of the gear box 122-04 and into the
hole in cog 122-09.
Similarly, fit the second cog shaft 122-14 into the
hole furthest to the port in the lower part of the
gearbox 122-04. Push it down so the end fits into
the hole in cog 122-09.
03 04
05 06
12204
12214
12201
12204
12204
12214
12202
12204
12214
12209
12209
12204
12215
12209
03. ASSEMBLING THE GEARBOX
PB
2 x 4
PB
2 x 4
PB
2 x 4
24
23
