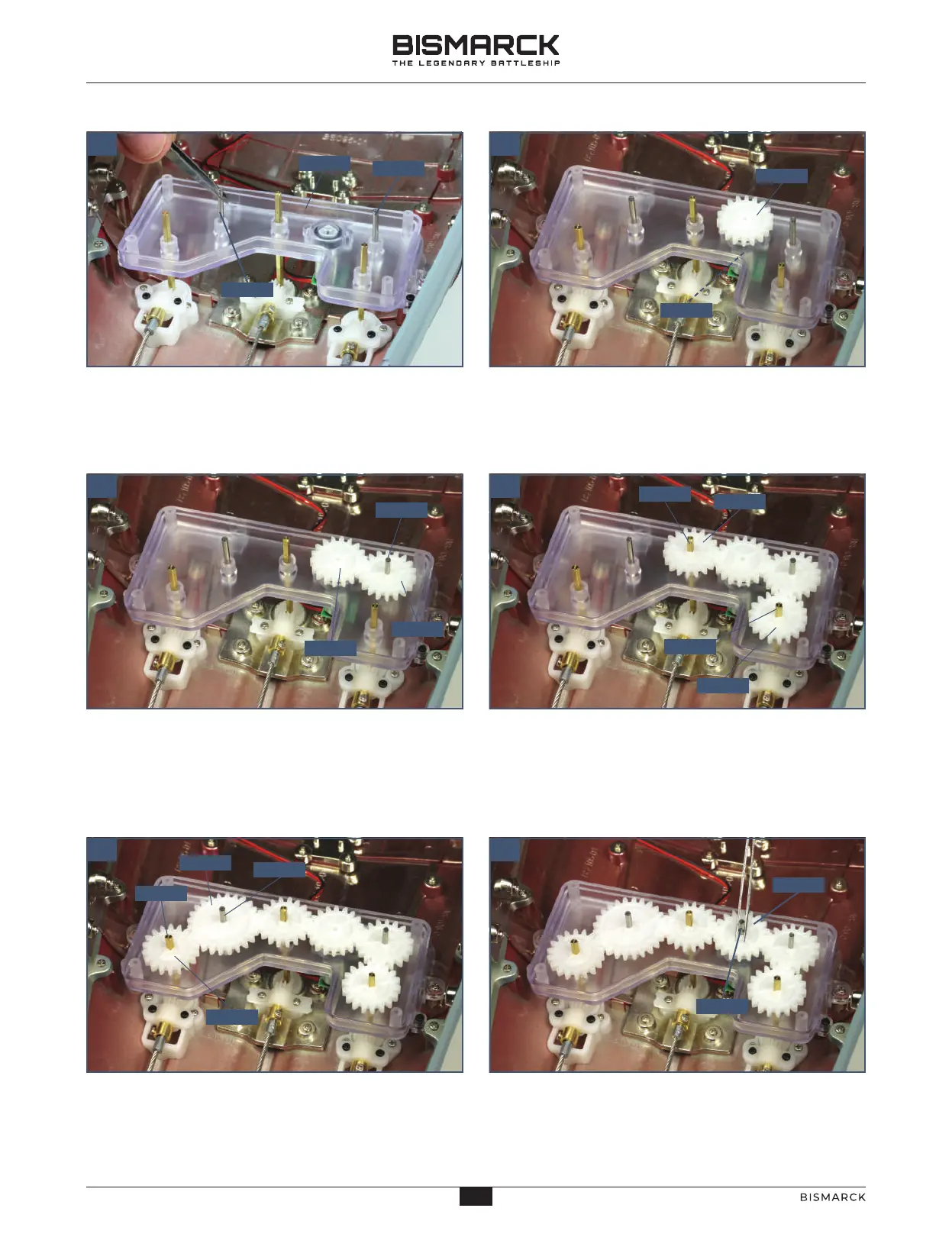

Fit the two cog shafts 122-16 into the remaining two
holes in the lower gearbox unit 122-04, as shown.
Take the cog 122-07 and fit the cross at the centre on
to the shaft of the motor 121-01, which is attached to
the lower part of the gearbox.
Fit the cog 122-06 (round centre) on cog shaft 122-16
on the starboard side so that its teeth interconnect
with the teeth of cog 122-07, as shown.
Fit one of the cogs 122-05 on the right-hand
cog shaft 122-14 and one on the central cog shaft
122-15, as shown.
Fit cog 122-08 on the left-hand cog shaft 122-16.
Finally, the third cog 122-05 is fitted on the left-hand
cog shaft 122-14.
Fit the short cog shaft 122-17 into the central hole
of cog 122-07 (fitted on the motor).
07 08
09 10
11
12
12216
12217
12216
12207
12207
12206
12208
12207
12204
12216
12101
12216
12205
12205
12215
12214
12214
12205
