Completed work
The three propeller shafts have
been fitted to pivot pins and
connected to the gearbox. Cogs and
shafts connect the propeller motor
to the propeller shafts.
13

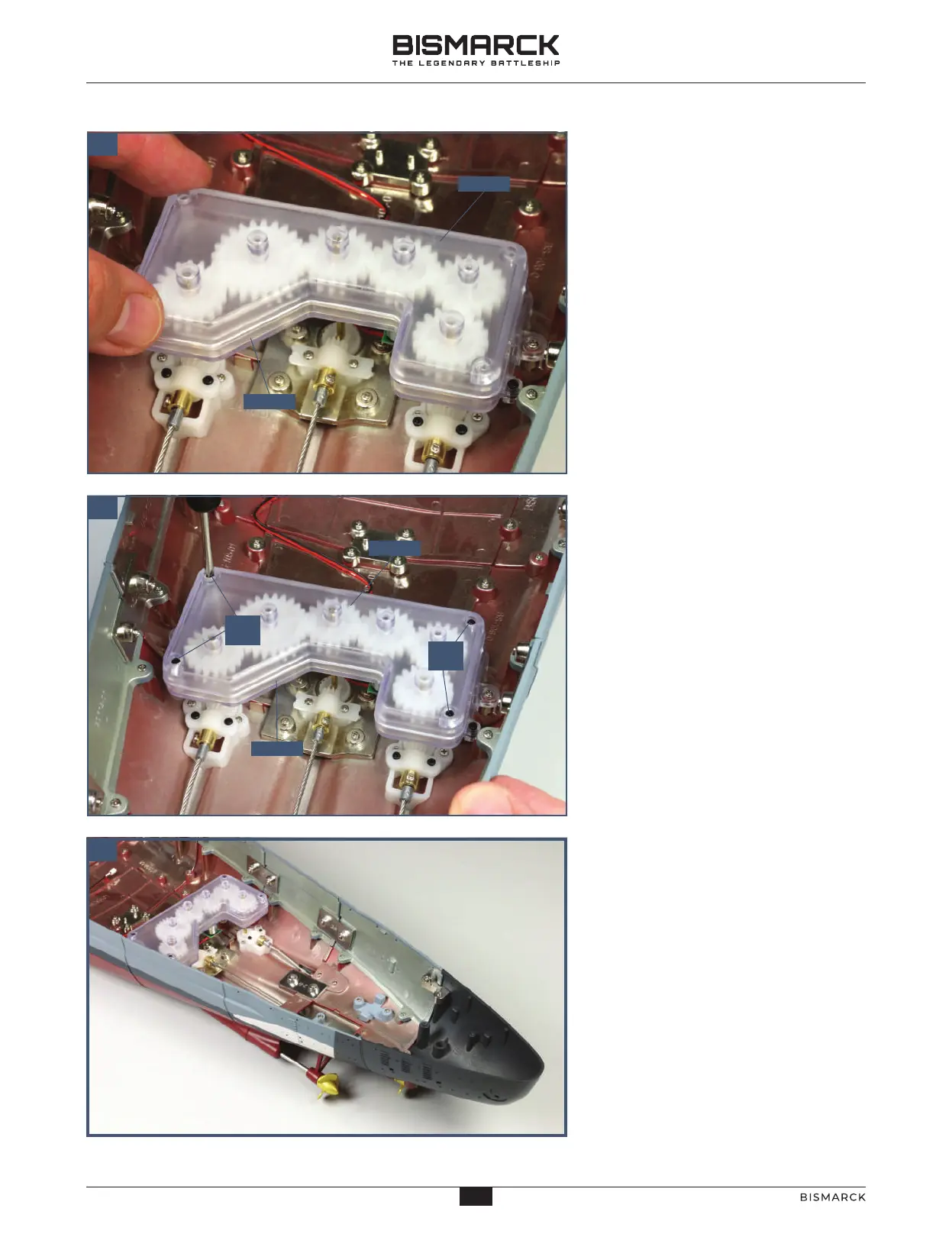

Fit the upper part of the gearbox
122-03 on top of the lower part of the
gearbox 122-04 so that the recesses
inside 122-03 fit on to the ends of the
six cog shafts, as shown.
Fasten the upper part of the
gearbox 122-03 to the lower part
of the gearbox 122-04 with four
2 x 6mm PB screws, as shown.
15
14
12203
12204
12203
12204
PB
2 x 3
PB
2 x 6
