Agora Models Bismarck - Page 31

06 07
04 05

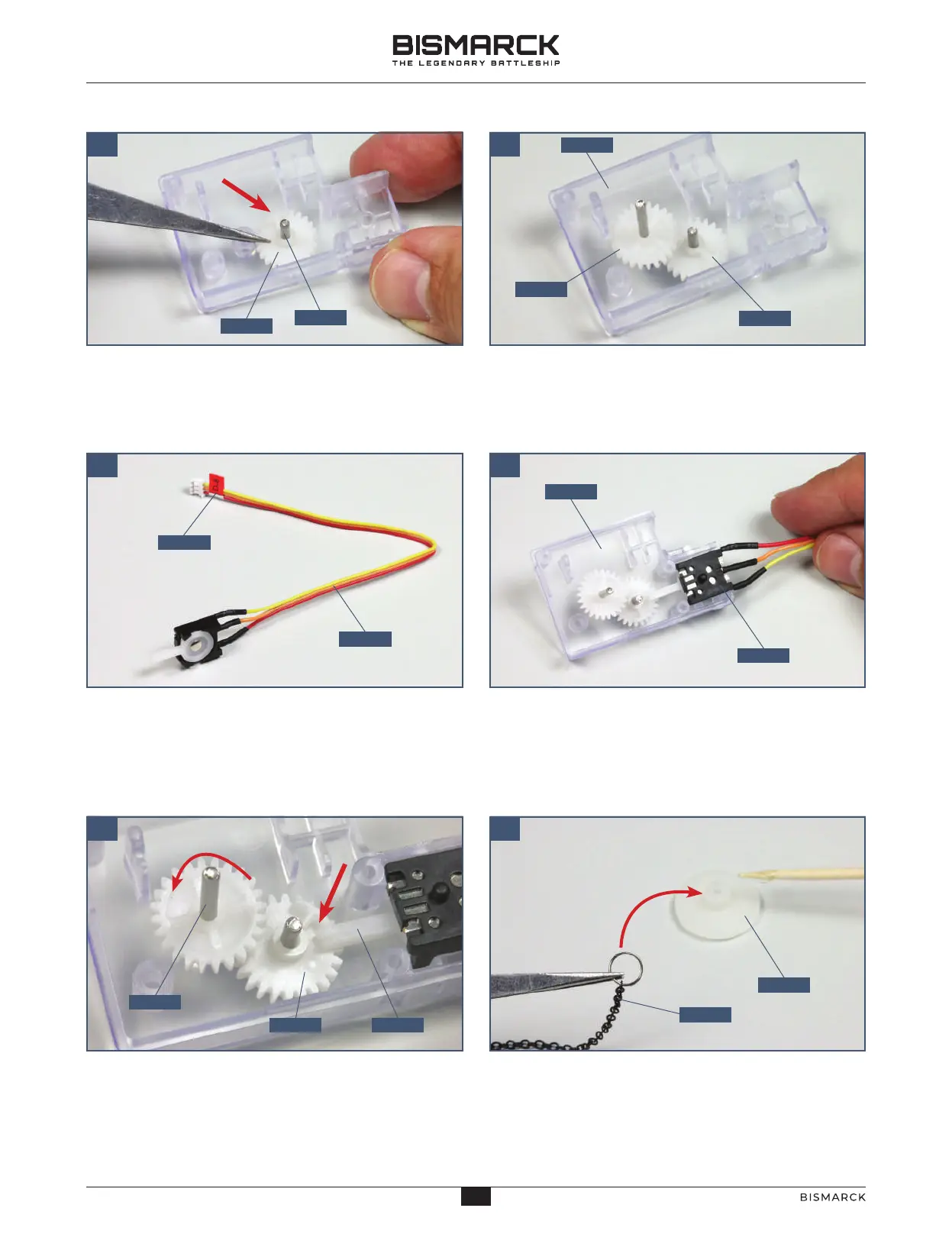

Take the cog with the brake tab 124-04 and fit it on
the shaft 124-13. Ensure that the tab is aligned with
the shaft as shown (arrow).
Fit the shaft of the cog 124-07 in the next socket
in the gear housing 124-03. The inner row of teeth
on the underside of cog 124-07 mesh with the
teeth of cog 124-04.
Take the switch 124-15 and attach the cable
label 124-17 (D-8) to the cable, near the
connector, as shown.
Fit the switch 124-15 into the gear housing 124-03.
Note the alignment of the switch: the tab reaches
towards the middle of the first cog.
Turn the shaft 124-07 until the tab on cog 124-04
comes up against the tab of the switch 124-15,
indicated by the straight arrow.
Put the cable reel 124-06 on your worktop and check
how the ring on the end of the anchor chain 124-09
fits over the hub. Apply a little glue to the hub to hold
the ring in place.
02 03
12407
12409
12404
12407
12415
12417
12404
12406
12413
12404
12403
12415
12403
12415
31
31
