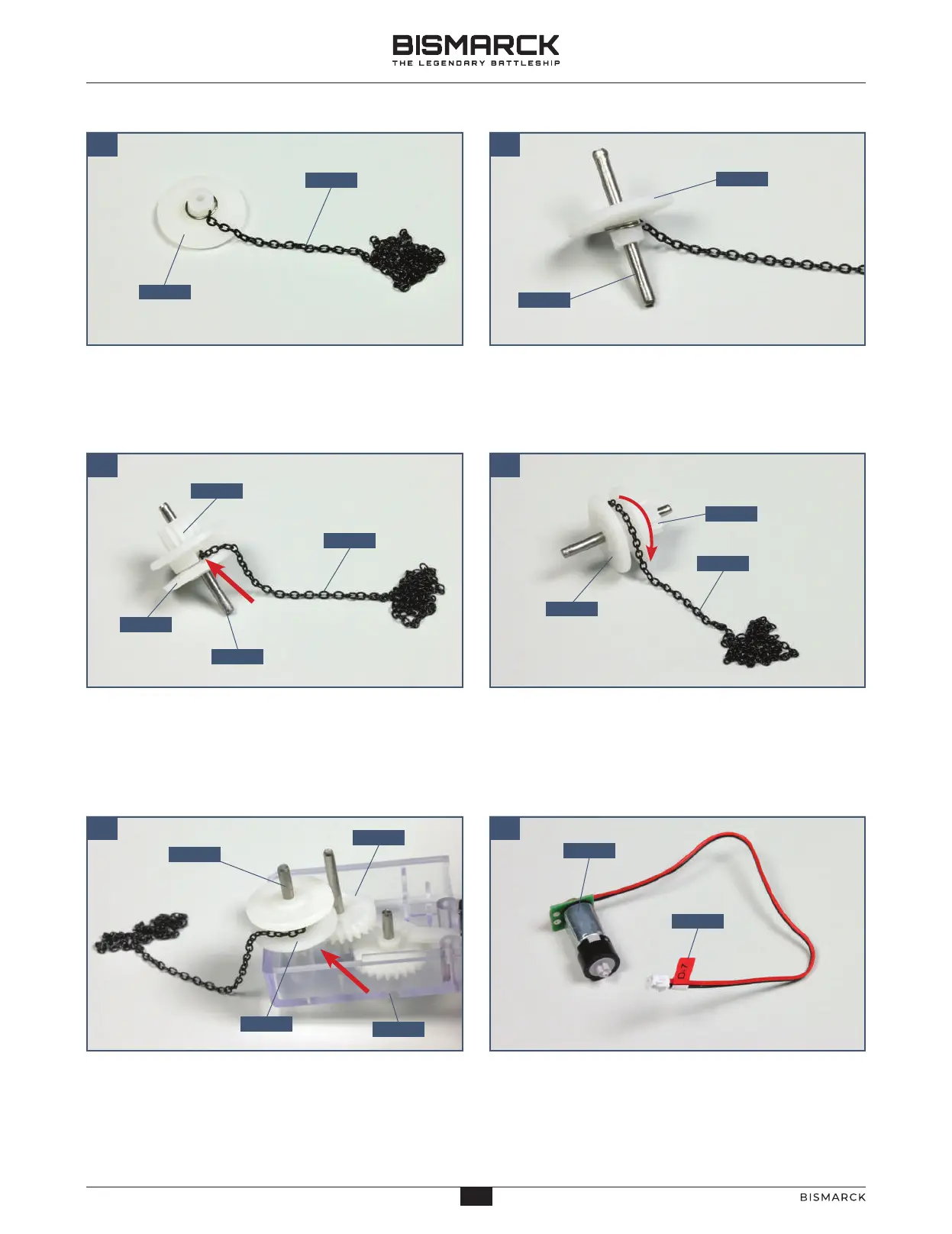

This shows the ring of the anchor chain 124-09
in place on the hub of the cable reel 124-06.
NOTE: Check the assembly of the next four steps
before applying any glue to the shaft (step 9).
Take the longer shaft 124-14 and fit it into the hub
of the cable reel 124-06. When you have checked the
fit (see steps 10, 11 and 12) apply a little glue to the
middle of the shaft to hold the cable reel hub in place.
Place the cog with the cable reel 124-05 on the shaft
124-14 so that the anchor chain 124-09 goes through
the notch (arrow). The flat side of part 124-05 butts
up against the hub of part 124-06. The anchor chain
can then wind around the hub.
Wind the anchor chain 124-09 clockwise half a turn
around the cable reel 124-05/124-06, as shown. Note
the orientation of the reel as you wind it.
Fit the shaft 124-14 into the socket in the gear
housing 124-03. The cog of the reel 124-05
engages with the large cog 124-07.
Take the anchor motor 124-01 and attach
the cable label 124-16 (D-7) to the cable near the
connector, as shown.
