14
01

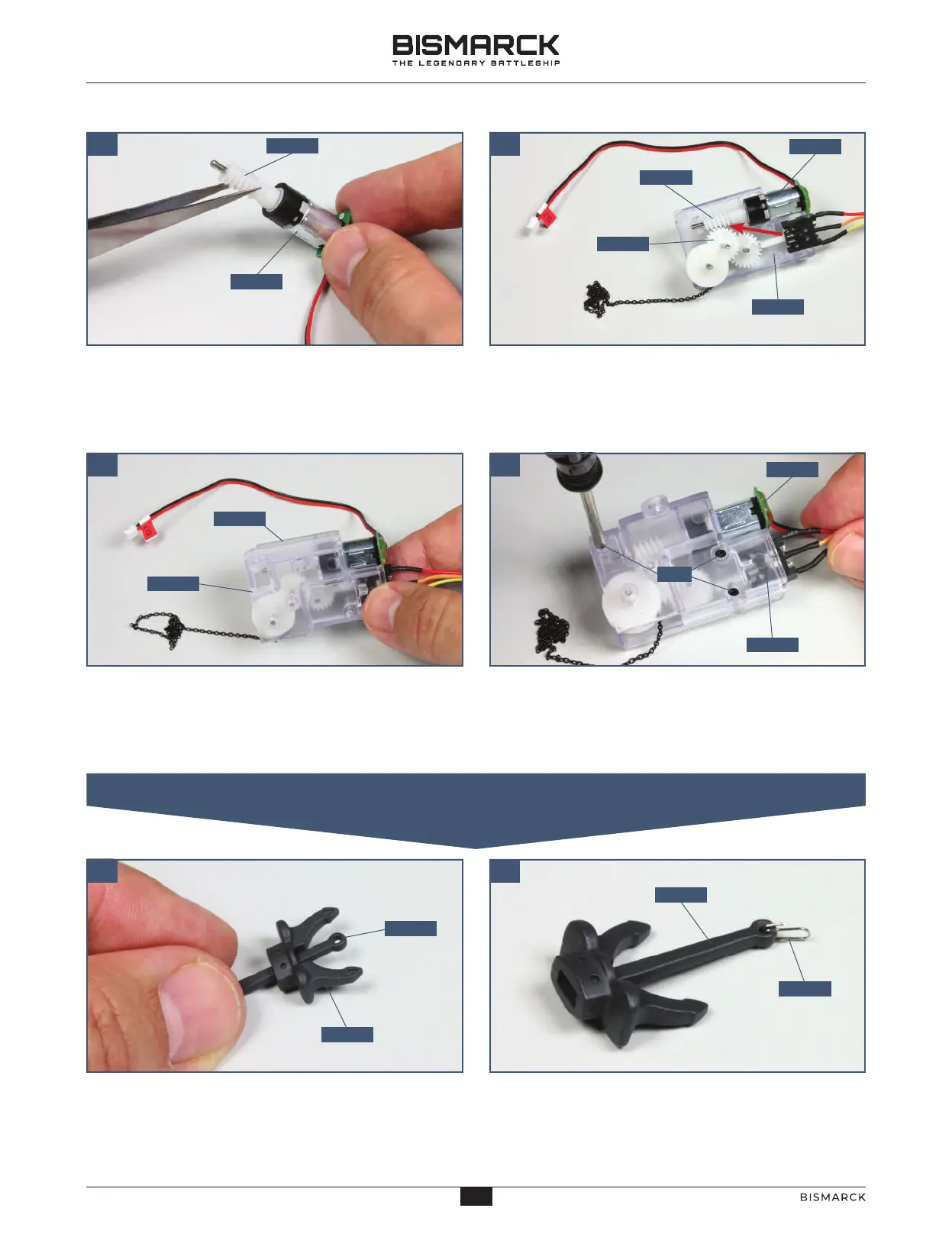

Take the worm gear 124-08 and fit the open end on
to the shaft of the anchor motor 124-01, as shown.
16
12410
12412
12408
12403
PB
12402
12402
12401
12401
12401
12408
12407
12403
12411
12410
15
17
02
Fit the motor and lengthways cog assembly
124-01/124-08 into the gear housing 124-03. The
thread of the lenthways shaft (arrow) must engage
with the large cog 124-07.
Take the left side of the gear housing 124-02 and fit
it against the right side 124-03. The free ends of the
shafts fit into the sockets in part 124-02. See the next
step for the correct orientation of the motor 124-01.
Fix the two halves of the gear housing together
using three PB screws: they fit into screw holes in
part 124-02 and screw into sockets in part 124-03.
02. INSTALLING THE GEARBOX AND FITTING THE ANCHOR
Fit the anchor shank 124-10 into the hole in the
anchor head 124-11. The shank is inserted from below,
pushing the eyelet on the end of the shank through
the hole first.
Attach the anchor ring 124-12 to the eyelet located
at the top of the anchor shaft 124-10, as shown.
33
33
