03
Completed work
The motor and gears for the aft anchor have been
assembled and fitted inside the hull.
09
05
PM
12402
11801
11801
12410
12411
12403
12409
12402
12403
11801
PM
12412
12409
04
06
07

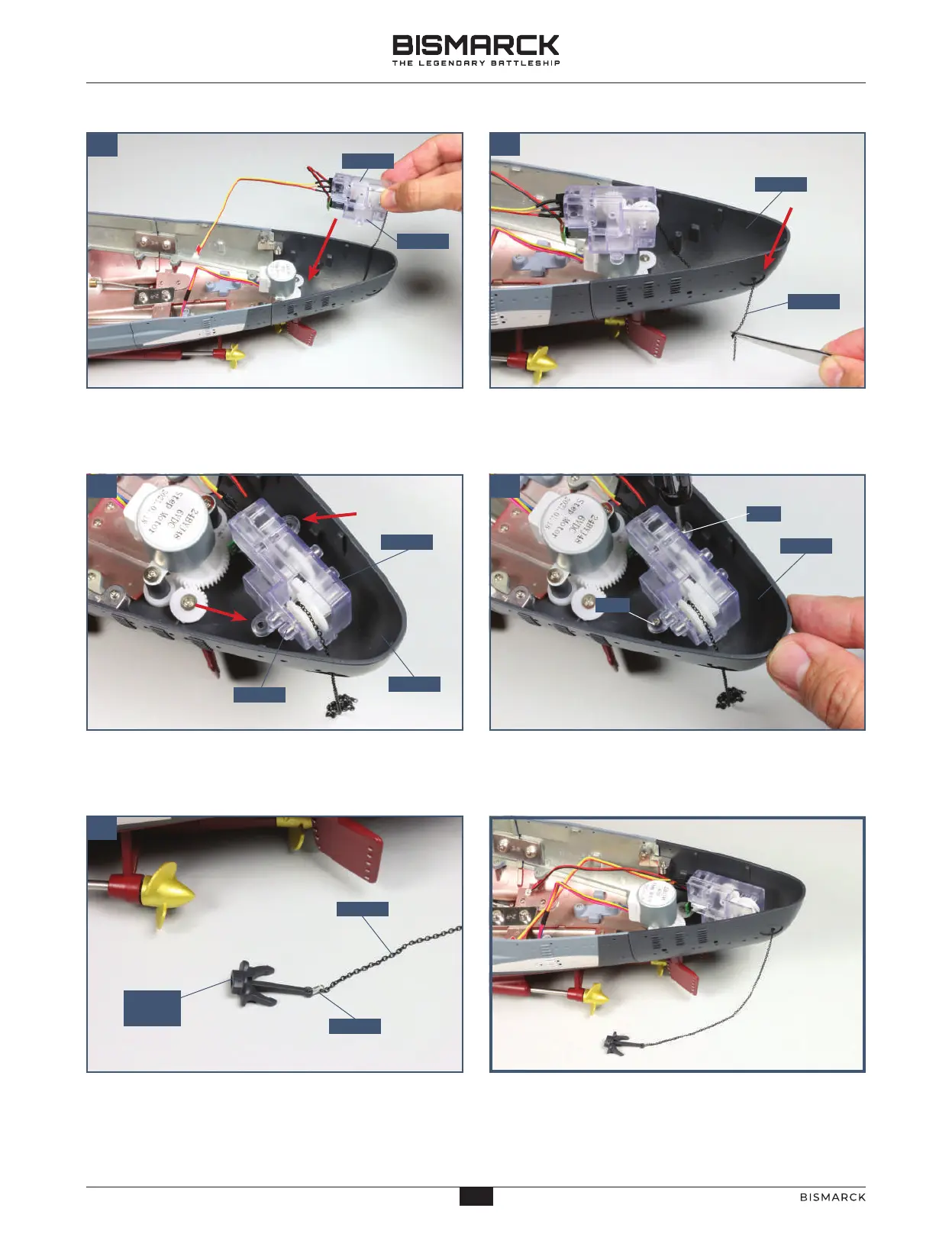

Place the hull assembly on your worktop, so
that you can access the stern end. The gearbox
124-02/124-03 fits near the aft of the hull.
Before positioning the gearbox, run the anchor chain
124-09 through the hole in part 118-01, on the port
side at the stern, as shown.
Position the gearbox housing 124-02/124-03 so that
tabs with screw holes fit onto raised screw sockets in
the hull section 118-01 (arrows).
Use two PM screws to fix the gearbox housing in
place on part 118-01, as shown.
Take the anchor assembly 124-10/124-11 and
fit the ring 124-12 into the last link of the anchor
cable 124-09, as shown.
