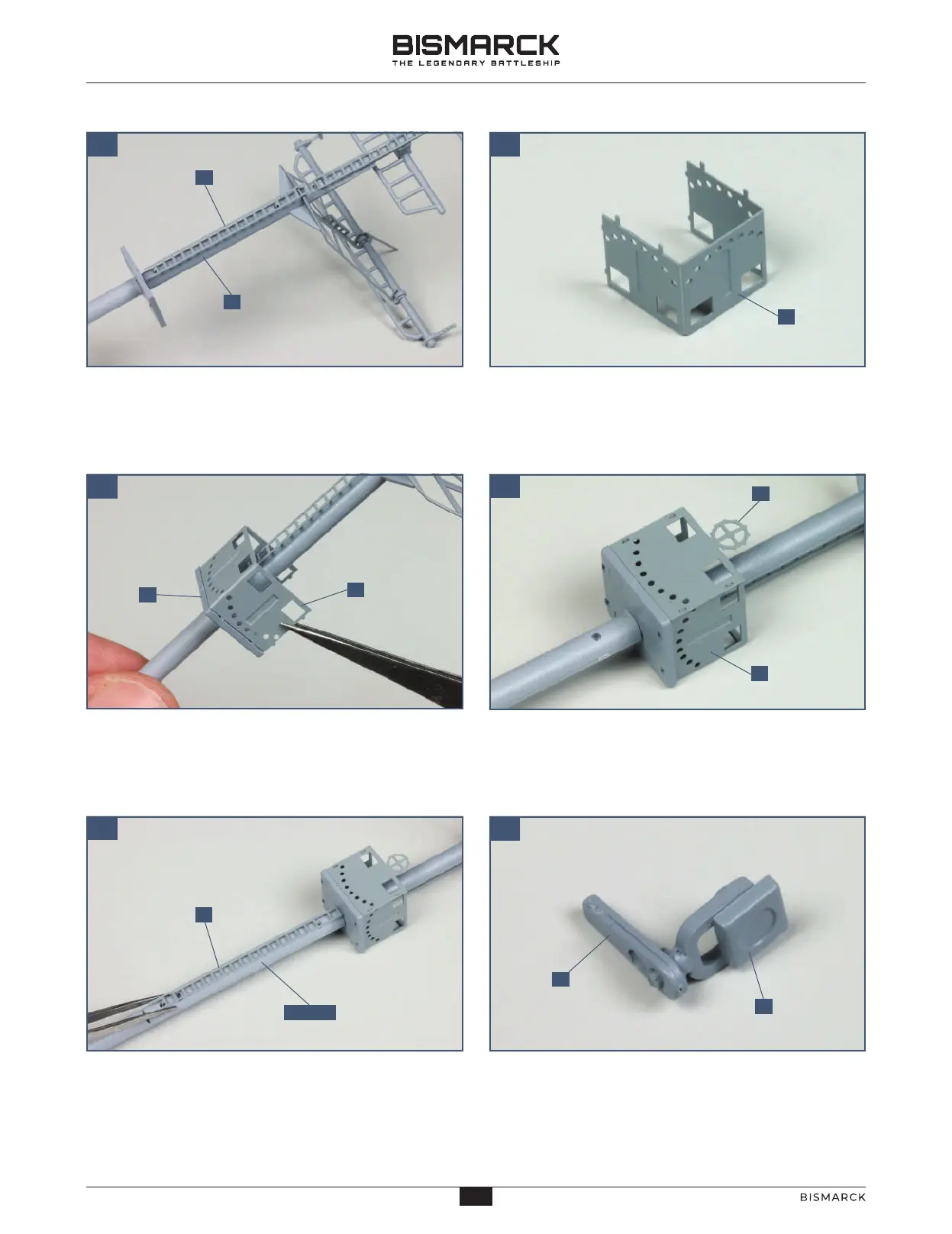

Take the ladder 10 and check how it fits on the front
of mast section E. Apply a little superglue to the tabs
on the ladder to fix it in place.
Take part 6 from frame 125-08. This is a safety barrier
for the rudder indicator. Bend the barrier twice at
right angles, as shown (photographed upside down).
03 04
The tabs on the lower edge of part 6 fit into the holes
in the platform F. Check the fit, with the open side of
the barrier facing away from the ladder. Glue in place.
On the open side of the barrier, two tabs in part 6 fit
into holes in part 1 from frame 125-08 (the barrier
and speed indicator). Glue part 1 in place, as shown.
08
The ladder 9 from frame 125-09 fits on the lower
section of the mainmast 125-01. Glue the two tabs
to the mast.
Take the signal lamp support H and the signal lamp
I from the frame 125-02. Check how the parts fit
together, as shown, and glue the signal lamp in place.
05
06
12501
10
E
6
6
F
6
1
9
I
H
