Agora Models Bismarck - Page 39

09

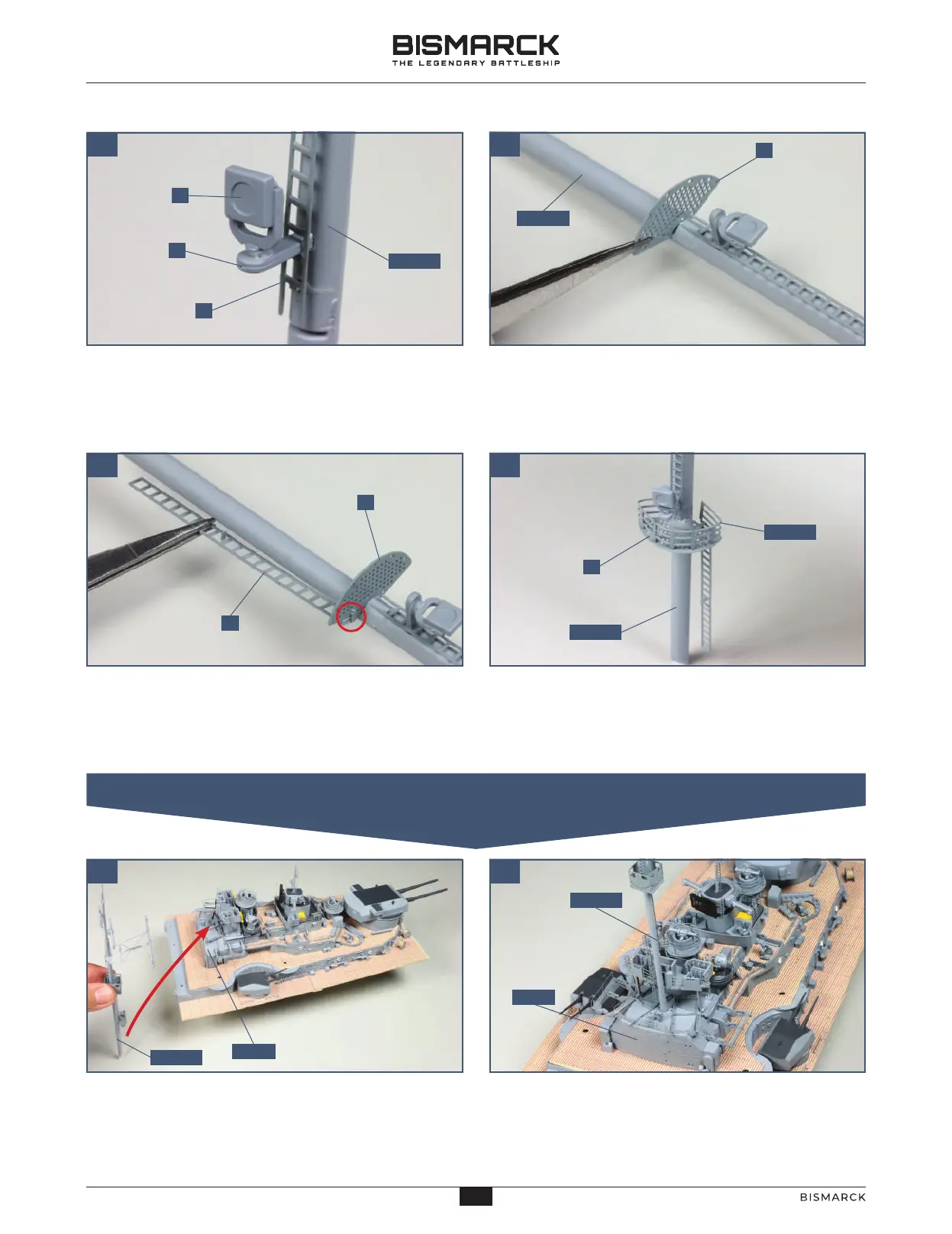

The end of signal lamp support H fits into a recess
behind the ladder 9 on the lower mainmast 125-01,
as shown. Glue in place.
The platform 2 from frame 125-08 fits in the slot
in the mast 125-01 below the ladder 9. Glue in
place, as shown.
10
The ladder 8 fits below the platform 2. The tab
with two right-angled bends fits into a slot in the
platform (circled). Glue in place.
Hold the lower mast 125-01 upright on your worktop.
Take the railing 125-10 and glue it in place around the
edge of platform 2.
Check the fit and then glue the mainmast 125-01
to the central hangar 94-01, as shown. Note the
position of the ladders.
Place the aft superstructure on your worktop. Identify
the hole on the central hangar 94-01 where the
mainmast 125-01 fits.
11 12
01
02
03. FITTING THE MAINMAST
12501
12501
12501
12501
9401
I
H
9
8
2
2
12510
12501
9401
2
