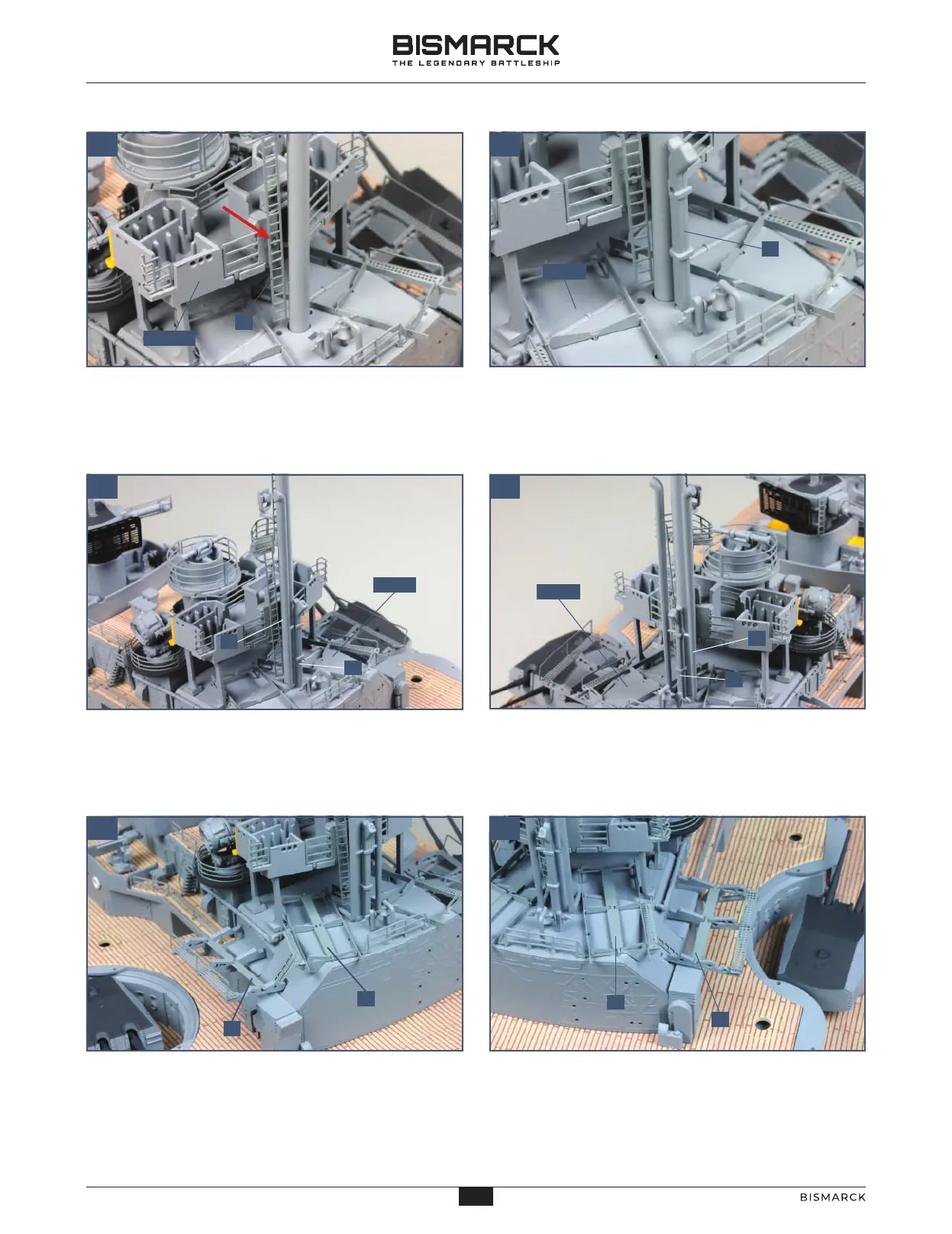

The free tab near the base of ladder 8 is glued into
the hole in the railing on the front of the aft signal
stand 107-03 (see arrow).
Remove the antenna shaft L from the frame 125-04
and glue it in place against the mast on the central
hanger 94-01, as shown.
Take the vent pipe J from the frame 125-04: two
pegs on part J fit into holes in the central hangar
94-01 and the antenna shaft L. Glue in place.
The vent pipe K from frame 125-04 is glued to the
other side of the main mast in the holes on the
central hanger 94-01 and on the antenna shaft L.
Take strut 4 and a strut 5 from frame 125-08: they
fit on the boat supports on the starboard side of
the central hangar. Make sure you have them in the
correct position, then glue in place.
The other two struts 4 and 5 from frame 125-08
fit on the boat supports on the port side of the
central hangar. When they are correctly aligned,
glue them in place.
03 04
05 06
07 08
10703
9401
8
L
J
9401
L
K
9401
L
4
5
4
5
