4
4

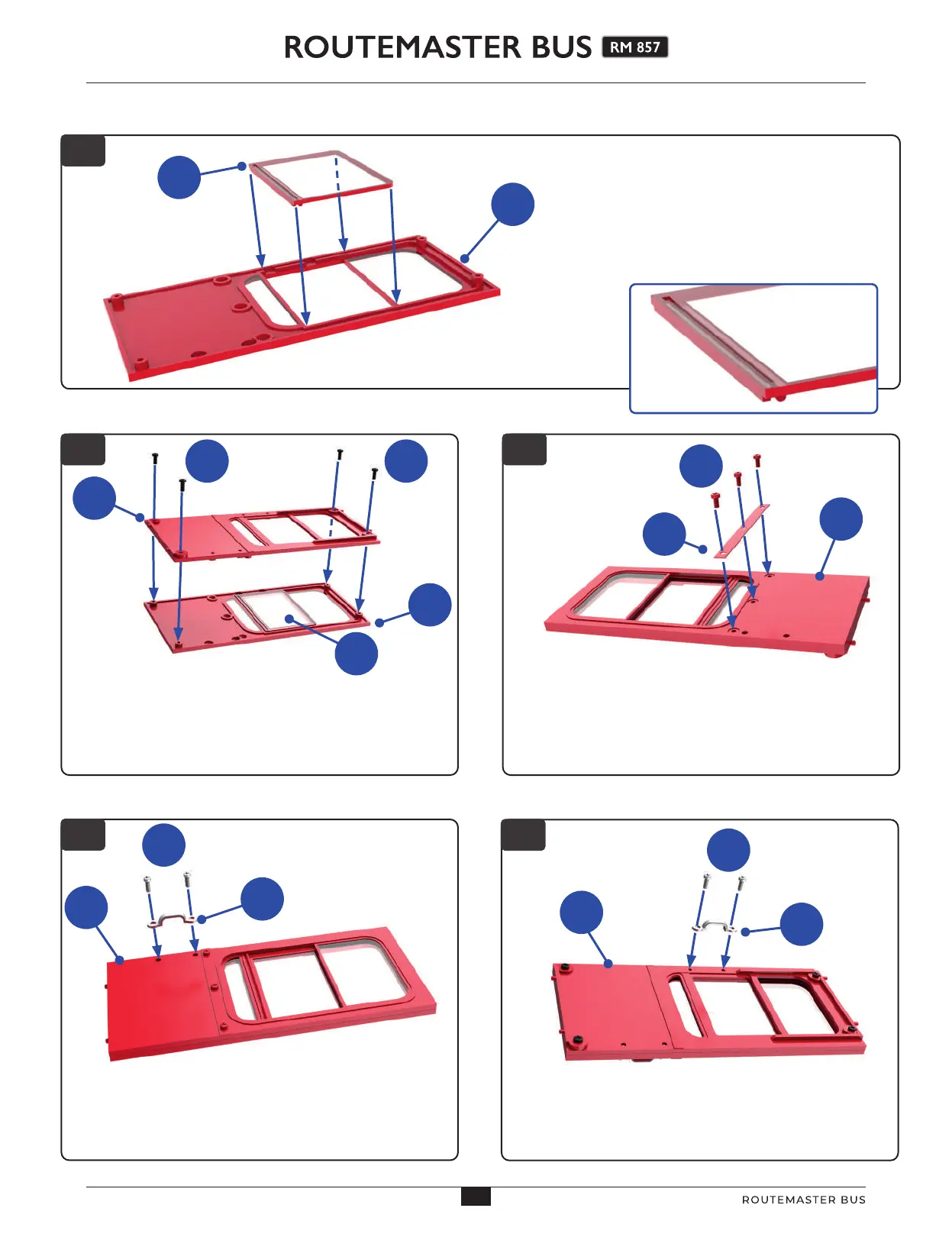

Take the outer door panel of the driver’s door
93A and position it on your work surface as
shown. Take the window pane 93B and position it
on the door panel 93A as indicated. Note the
orientation of the ridge on part 93B (see inset).
5 6
7
8
6
Turn the assembly over and fit the bar 93E across the
outer door panel 93A. Fix in place with three NM (red)
screws. Ensure the screws are fully inserted so they do not catch
on the door frame when the sliding door has been fitted.
7
Identify the fixing points for the first handle 93C
on the outer door panel 93A. Fix in place with
two EM screws.
8
Turn the door over and position the second
handle 93C on the inner door panel 93D, as
shown. Fix in place by the window with two EM screws.
5
Fit the inner door panel 93D over
the outer door panel 93A so that the screw holes
at the corners are aligned and the window 93B is
enclosed. Fix in place with four DP screws.
NM
x3
EM
x2
DP
x2
DP
x2
93C
93A
93A
93E
93B
93B
93D
93A
93A
EM
x2
93C
93D
15
15
AGORAMODELS ROUTEMASTER BUS
