TECHNICAL DATA

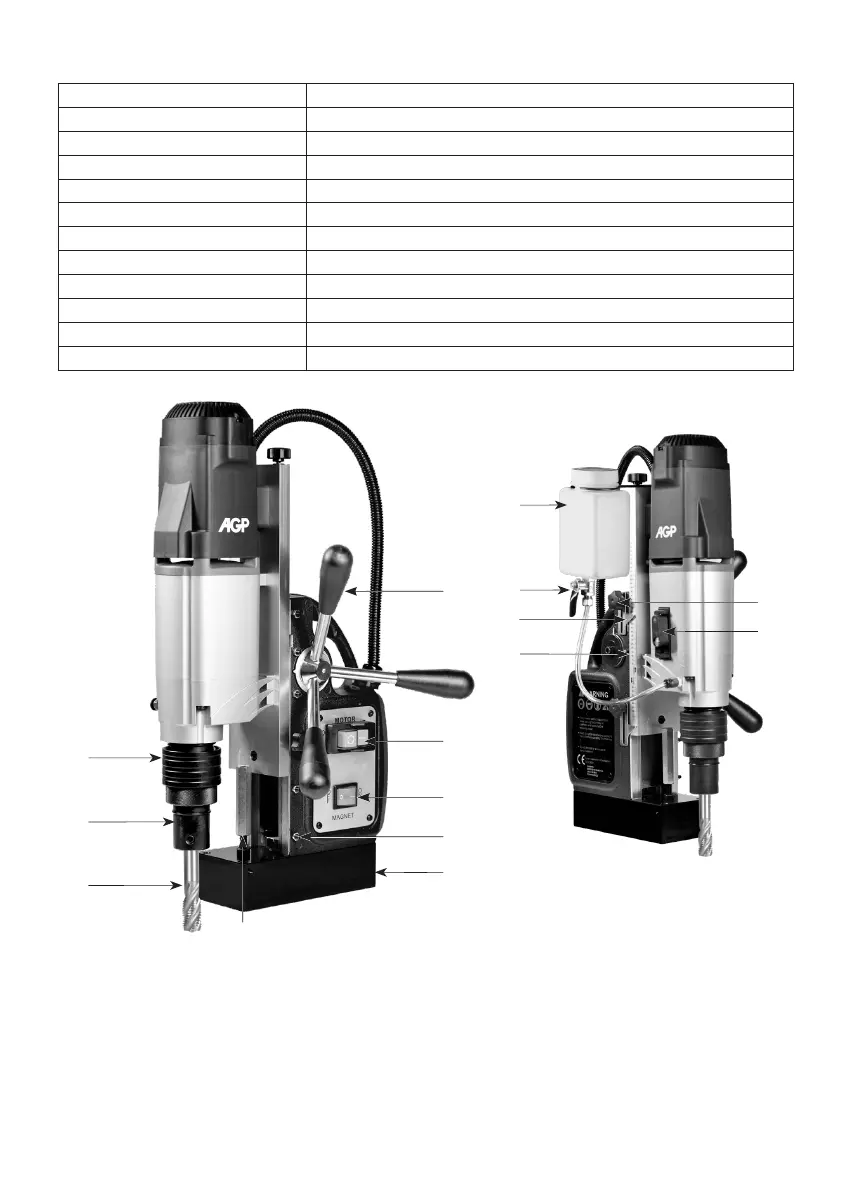

1. Quick release collar
2. Universal Tap Chuck
3. Tap (not included)
4. Travel limiter stop
5. Magnet Base
6. Gib adjustor screw
7. Magnet switch
8. Motor switch
6.
8.
3.
7.
5.
2.
9.
9. Crank handle
10. Coolant tank
11. Coolant feed tap
12. Adjustable Pointer
13. Depth Meter Scale
14. Lock Knob
15. Mode selector*
1.
Power input 1100 W
Voltage 220-240 V~ 50-60 Hz, or 110-120 V~ 50-60 Hz (See Machine Nameplate)
Drilling Mode: No / Full Load min
-1
550 / 330
Tapping Mode: No / Full Load min
-1
150 / 90
Spindle Coupling 31 mm (Bilz no.2 type)
Annular Cutter Arbor Set Screw Type, 19 mm Weldon Shank
Annular Cutters Ø 35 mm x 50 mm (1-3/8" x 2")
Taps 20 mm (13/16")
Twist Drills 13 mm (1/2") Shank
Total Stroke 150 mm (6")
Magnetic Ashesion 15,000 N ( 3,372 lb-f )
Net Weight 14.5 kg (32.0 lb)
10.
11.
14.
15.
12.
13.
4.
* Mode selector (for shifting to Auto-reverse
tapping mode or standard drilling mode)
