2. Camera angle adjustment
The angle of the camera can be
adjusted through the camera
adjustment knob (Figure 3) during
UAV flight. Knob right turn camera
angle decreases, knob left turn
camera angle increases
FIG. 2
-6-
Manipulation method

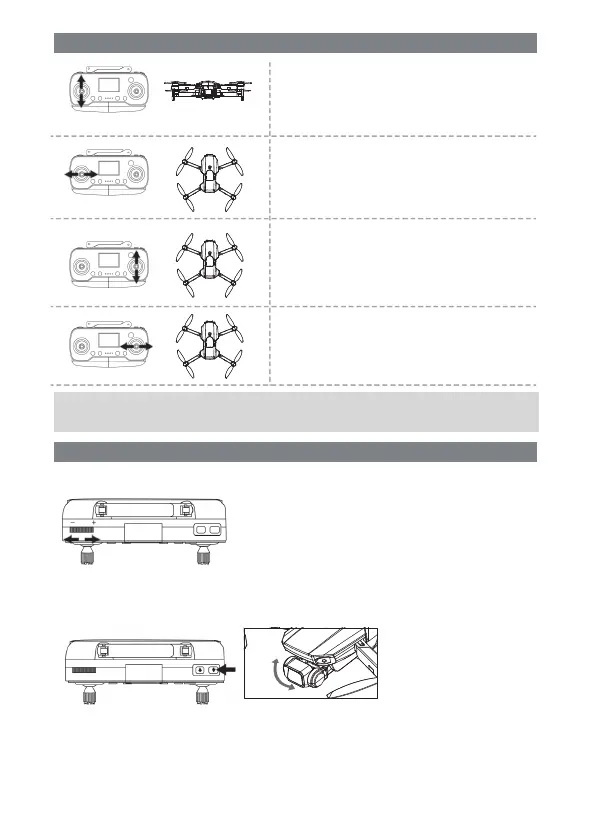

Operation description of remote control function:
When the left lever (accelerator) is pushed upwards, the
speed of the main wind blade increases and the aircraft
goes up.
When the left lever (accelerator) is pushed downward,
the speed of the main wind blade slows down and the
aircraft descends
When the left lever (rudder) is pushed to the left,
the aircraft head turns to the left, when pushed to
the right, and the head turns to the right.
When the right lever (rudder) is pushed up, the
aircraft goes forward.
When the right lever (rudder) is pushed down, the
aircraft goes backward.
When the right lever (rudder) is pushed to the right,
the aircraft flies to the right.
When the right lever (rudder) is pushed to the left,
the aircraft flies to the left.
Warning: When the Drone is 30 cm away from the ground, the Drone will become unstable due to the
influence of its own blade eddy current, which is called "ground effect reaction". When the height of the
Drone is lower, the effect of ground effect reaction is the largest.
The take-off speed gear of the UAV defaults to slow gear. When
the UAV flies in the air, the speed gear can be adjusted through
the knob (Figure 2). Rotate the speed knob to the right.The
remote controller "drops" twice indicates that it enters the second
gear. When the remote controller is rotated, the remote controller
"drops" three times indicates that it enters the third gear high-speed
mode. Otherwise, the left turn indicates that it enters the second
gear and the first gear low-speed.
1. speed gear adjustment
FIG. 1
