AGRI-COVER Access - Preparation for Installation; Components List; Tools Required; Parts Diagram

2
Rear
Front (closest to cab)
Premium
storage straps
Front bar
Tension adjuster
Seal
gasket
Rear seal
(8) Rail clamps
Left side rail
Latching system on
rear bar
Right
side rail
Rear bar
Support
bows
PREPARATION
This document is typically used with trucks that have 78" or longer boxes. Unpack
cover components and clean truck box.
COMPONENTS
• (8) Clamps
• (2) Driver side rails
• (2) Passenger side rails
• (2) Rear seals
• Alcohol pad
• Seal gasket
• Left and right tension adjuster
with nuts and bolts
• Pre-rolled cover assembly
TOOLS NEEDED
• (2) 1/2” Wrenches
• Marking pen
• Protective eyewear
• Tape measure or ruler
• Torque wrench with 1/2” socket
• Scissors
• Spring clamp - optional
NOTE: With an under the rail drop-in bed liner, installation is possible with minimal
trimming/cutting of bed liner at front corner of box and back by tailgate to allow side rail
to install properly. Considerable trimming/cutting is required with an over the rail
drop-in bed liner.
NOTE: For additional protection against the elements, locate and seal miscellaneous
factory holes, crevices, stake pockets, etc. that may be in box (sealant not included).
NOTE: Tonneau cover and side rail appearance may vary. Typically a vehicle with a
78" box or longer is provided with two multi-piece side rails.
!
CAUTION: Over torquing hardware may damage components.

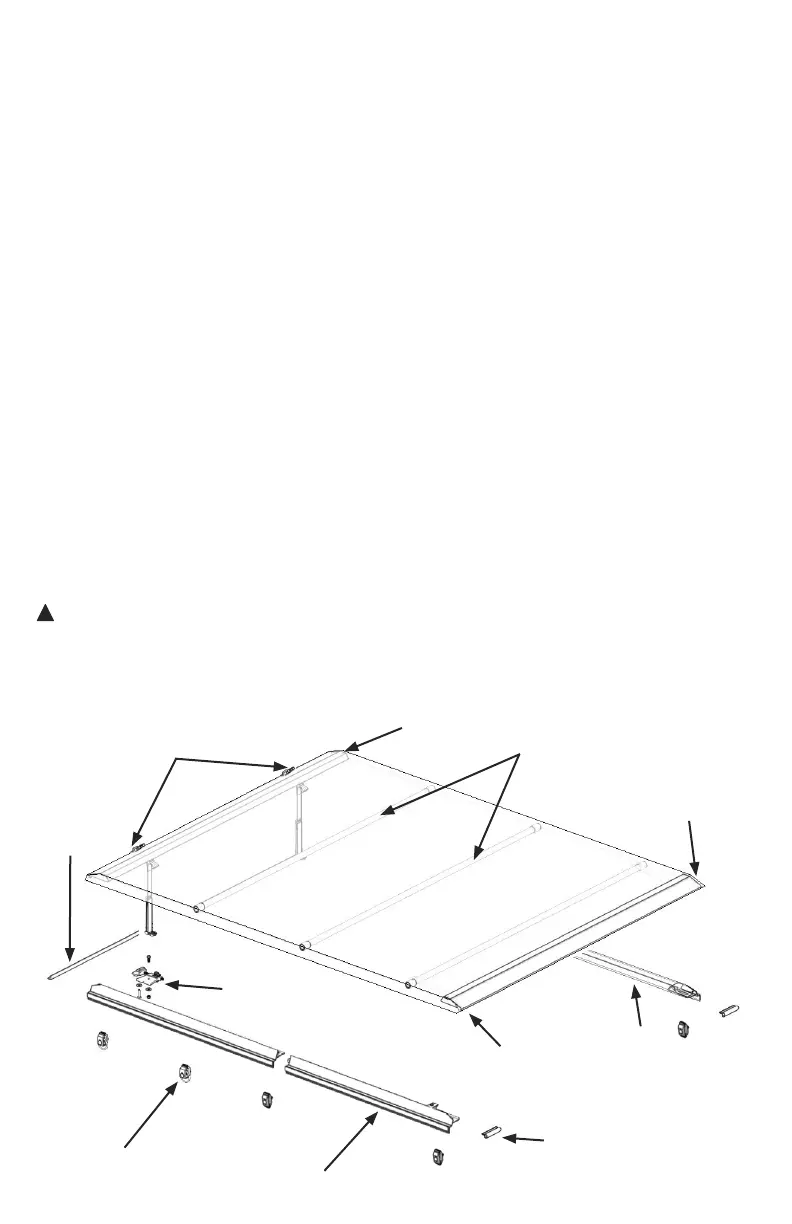

PARTS DIAGRAM
