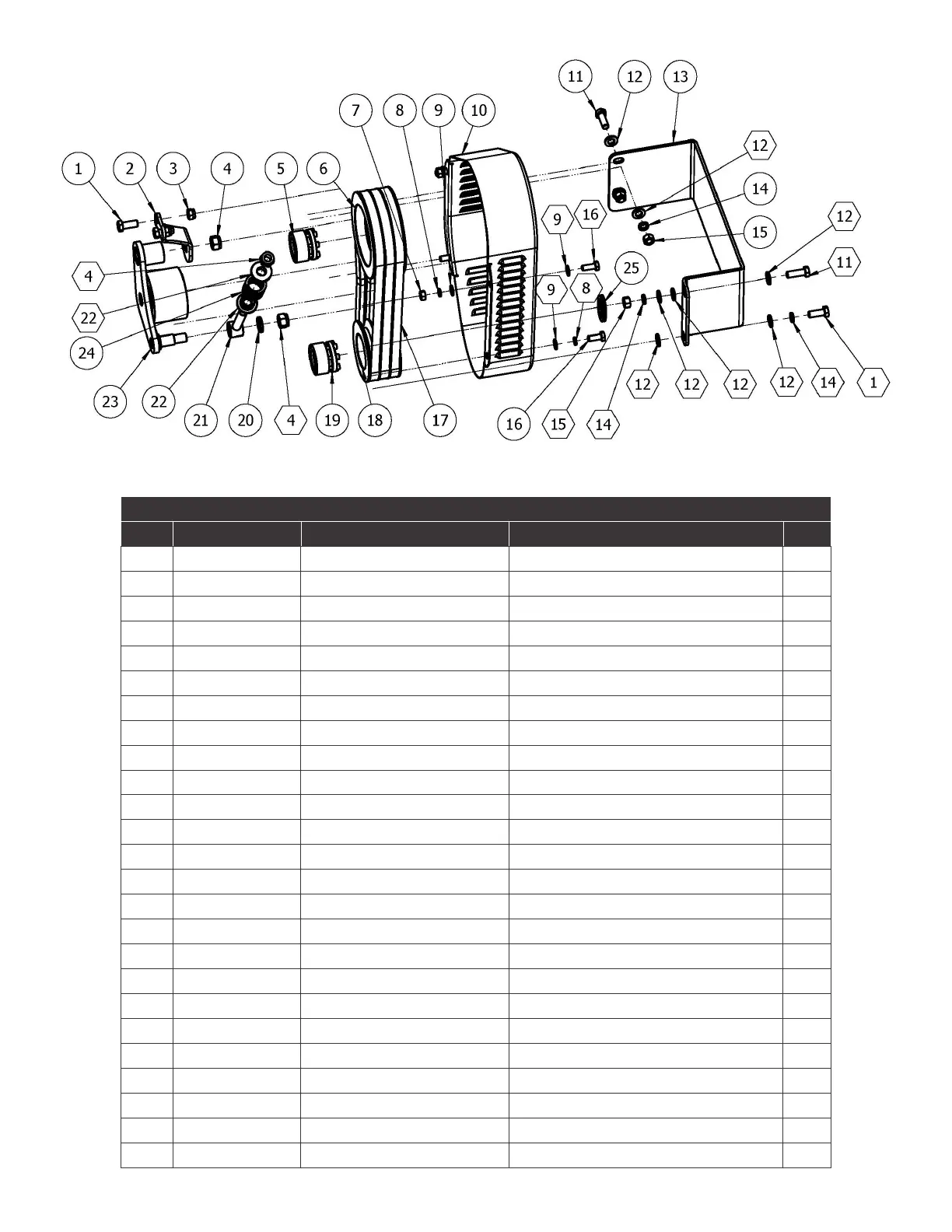

AGRI EASE BE-AGL125F - Exploded View 1-6 & Parts

16 BE-AGLxxxF USER MANUAL
1-3
REF SYSTEM NO. PART NO. DESCRIPTION QTY
1 501011126
GB5783-M12X30
Screw bolt
3
2 710340013 EFAGL165C-0000-06 Tensioning wheel hanging plate
1
3 503010763 DIN985-M12 Thin nut
2
4 503010740 DIN985-M16X1.5 Thin nut
3
5 515010005 REACH04-33X60 Power lock
1
6 701160007 EFG120.106A Big belt pulley (3 grooves)
1
7 503010046 GB6170-M10 Hex nut
2
8 506030036 GB93-10 Spring washer
4
9 506010056 GB97.1-10 Flat gasket
6
10 710340001 EFAGL165C-0000-01 Pulley cover
1
11 501011127 GB5783-M12X35 Screw bolt
3
12 506010057 GB97.1-12 Flat gasket
9
13 710340009 EFAGL165C-0000-02 Protection plate
1
14 506030037 GB93-12 Spring washer
4
15 503010047 GB6170-M12 Hex nut
3
16 501011112 GB5783-M10X25 Screw bolt
4
17 514010001 17X991 Belt
3
18 701160006 EFG120.105A Small belt pulley
1
19 515010001 REACH04-35X60 Power lock
1
20 710340012 EFAGL165C-0000-05 Tensioning gasket
1
21 810340018 EFAGL165C-0200-00 Pull rod
1
22 710340010 EFAGL165C-0000-03 Spring locating cover
2
23 810340021 EFAGL165C-0300-00 Tensioning wheel
1
24 710340011 EFAGL165C-0000-04 Tensioning spring
1
25 701240046 EFGC120.138 U cap
1
