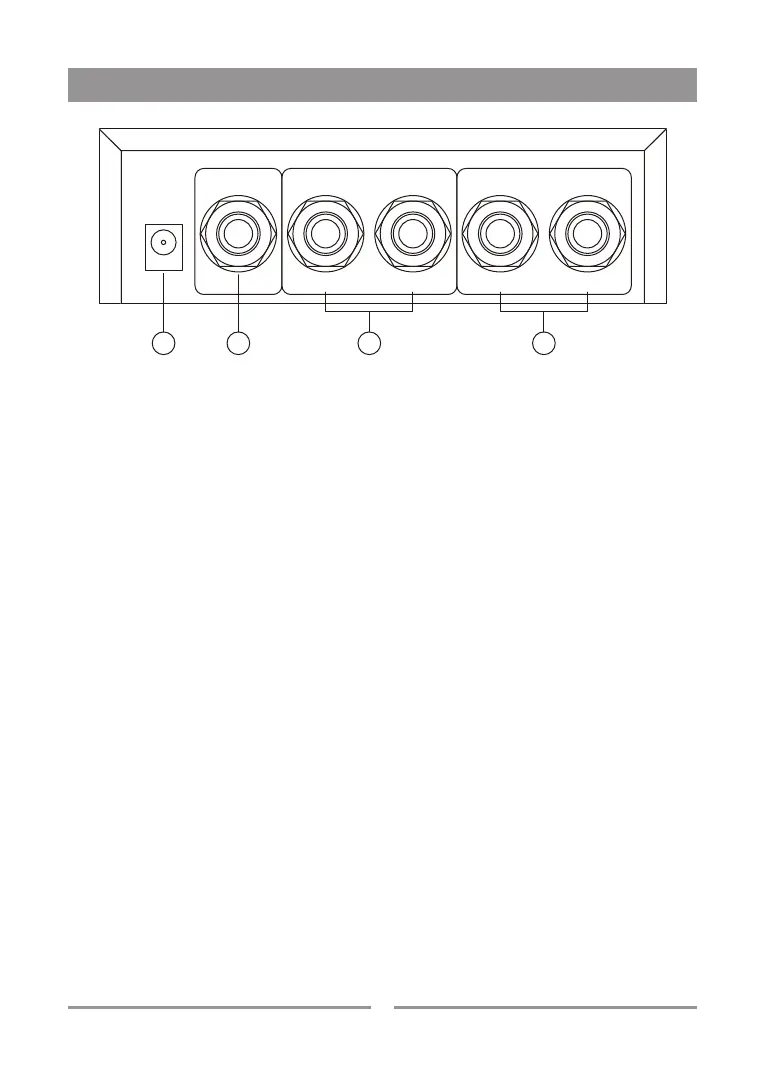

• Rear Panel Controls & Features
8. POWER Socket 11. INPUT Jack Sockets
For connecting the 9V AC power The LEFT (MONO) jack socket is
supply adaptor as supplied used for connecting signal
alongwith. sources with mono outputs like an
AUX SEND (Post Fade) of a
9. BYPASS Jack Socket
mixer, the preamp output of a PA
For connecting an external foot
mixer, an I / O insert of a mixing
switch through a ¼" phone plug.
console and the send / return of a
The foot switch is used to enable
powered speaker.
or disable the presence of wet
(processed) signal at the output.
When the mono input is
10.OUTPUT Jack Sockets connected to LEFT (MONO) jack
In mono applications, either of the socket only, then same signal also
LEFT or RIGHT output jack sockets gets routed to the RIGHT jack
can be connected to the Aux input socket internally.
of a PA amplifier, Line input of a
direct coupled amplifier (when used In stereo applications, LEFT &
in mono mode), an I / O insert of a RIGHT inputs can be connected to
mixer or the send / return of a the two AUX SEND (Post Fade)
powered speaker. inputs of a mixing console or the L
& R LINE outputs of a mixer.
In stereo applications, for
connecting to AUX RETURN
inputs of a mixing console, the
Line input of a direct coupled
amplifier (when used in stereo
mode) or the Line inputs of a two
zone amplifier.
6
9 VAC~
POWER
BYPASS OUTPUT INPUT
8 9 10 11
LEFT LEFT (MONO)
RIGHT RIGHT
