Ahuja DFX-16 - Page 9

9
• Typical Applications....

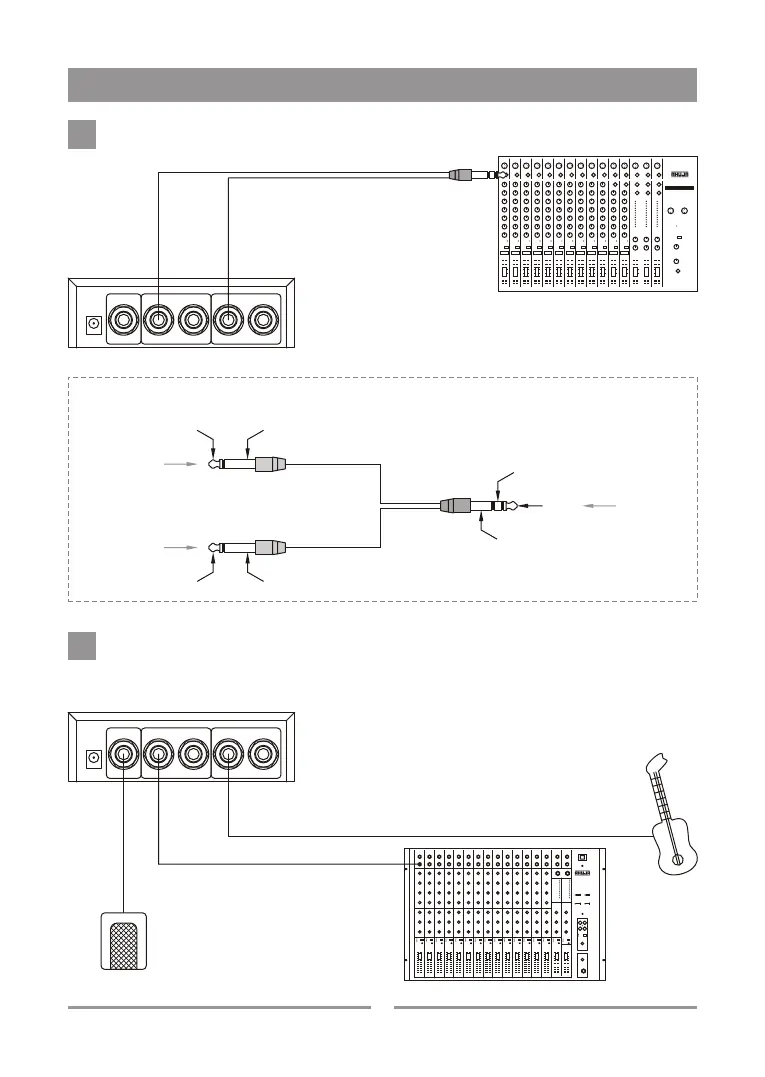

Connecting DFX-16 to the I / O insert in a mixing console
9 VAC~
POWER
BYPASS OUTPUT INPUT
LEFT LEFT (MONO)
RIGHT RIGHT
DFX-16
Left (Mono)
Input
Left
Output
C
Wiring sequence of connection cable for I / O Insert
¼" Jack Plug
Return
Ground
Send
I / O Insert
of a mixing
console
Send Ground
¼" Jack Plug
¼" Jack Plug
DFX-16 Left
(Mono) Input
Return Ground
DFX-16
Left Output
P r o
S e r i e s
A M X - 1 6 1 2
Mixing Console
I / O Insert
Connecting a musical instrument like guitar to the LEFT (MONO) INPUT, a
mixing console to the LEFT OUTPUT and a foot switch to the BYPASS
socket of the DFX-16
D
9 VAC~
POWER
BYPASS OUTPUT INPUT
LEFT LEFT (MONO)
RIGHT RIGHT
Left Output
Bypass
DFX-16
Left (Mono)
Input
Guitar
PA Mixer AMX-1412
AMX-1412
Foot Switch
Line Input
