DAC4503
26
1. Connect air supply.

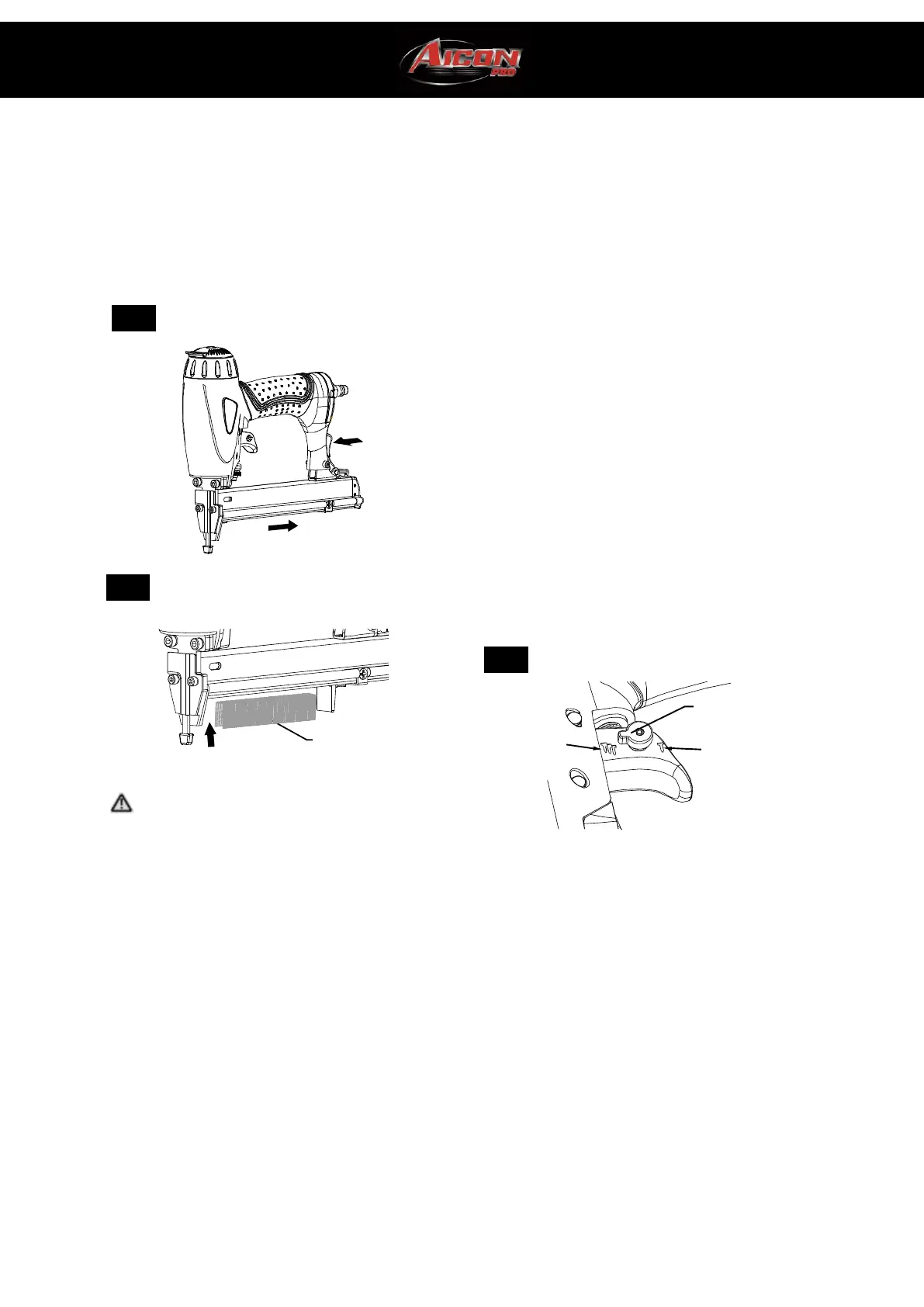

2. Press magazine latch and pull magazine to open position (FIG
5).
3. See tool specification to determine appropriate nail sizes.
Insert appropriate nail strips, with the nail tips contacting the
wear rail (FIG 6).
4. Push the nail strip against the nose.
5. Push magazine fully closed. Magazine latch will maintain fully
closed position.
WARNING
KEEP THE TOOL POINTED AWAY FROM YOURSELF AND
OTHERS WHEN LOADING FASTENERS. FAILURE TO DO
COULD RESULT IN POSSIBLE SERIOUS PERSONAL INJURY.
NEVER LOAD FASTENERS WITH THE WORKPIECE CONTACT
OR TRIGGER ACTIVATED. DOING SO COULD RESULT IN
POSSIBLE SERIOUS PERSONAL INJURY.
REMOVING THE NAILS:
1. Disconnect air supply.
2. Push magazine latch and pull magazine to open position
(FIG 5).
3. Grasp the head of the nail strip and remove from magazine.
METHODS OF OPERATION
This tool is equipped with the safety and does not operate
unless the safety is depressed.
CONTACT ACTUATION
1) Disconnect the tool from the air resource.
2) Rotate the selector to three nails position.
3) Reconnect the tool to the air resource.
4) Posit the nail outlet on the workpiece with finger off the
trigger.
5) Pull the trigger, and then press the safety against the
wood to drive the fastener.
6) If the trigger is held back, a fastener will be driven each
time when the safety is pressed against the wood.
NOTE:
In the contact actuation mode, the tool may also be
operated by depressing the workpiece contact against the
surface and squeezing the trigger.
SINGLE ACTUATION
1) Disconnect the tool from the air resource.
2) Rotate the selector to single nails position
3) Reconnect the tool to the air resource
4) Posit the nail outlet on the workpiece with finger off the
trigger
5) Depress the safety firmly until it is completely depressed
6) Pull the trigger to drive a nail.
After fastening once, fastening will not be possible again
until the trigger is released and pressed again.
NOTE:
Always handle nails and package carefully. If nails are
dropped, collating bent may be broken, which will cause
mis-feeding and jamming.
After nailing:
1) Disconnect air hose from the tool.
2) Remove all nails from the tool.
3) Supply 5-10 drops of pneumatic tool lubricant into the
air plug on the tool.
4) Open the petcock on the air compressor tank to drain
any moisture.
