DAC4503
28
MAINTENANCE

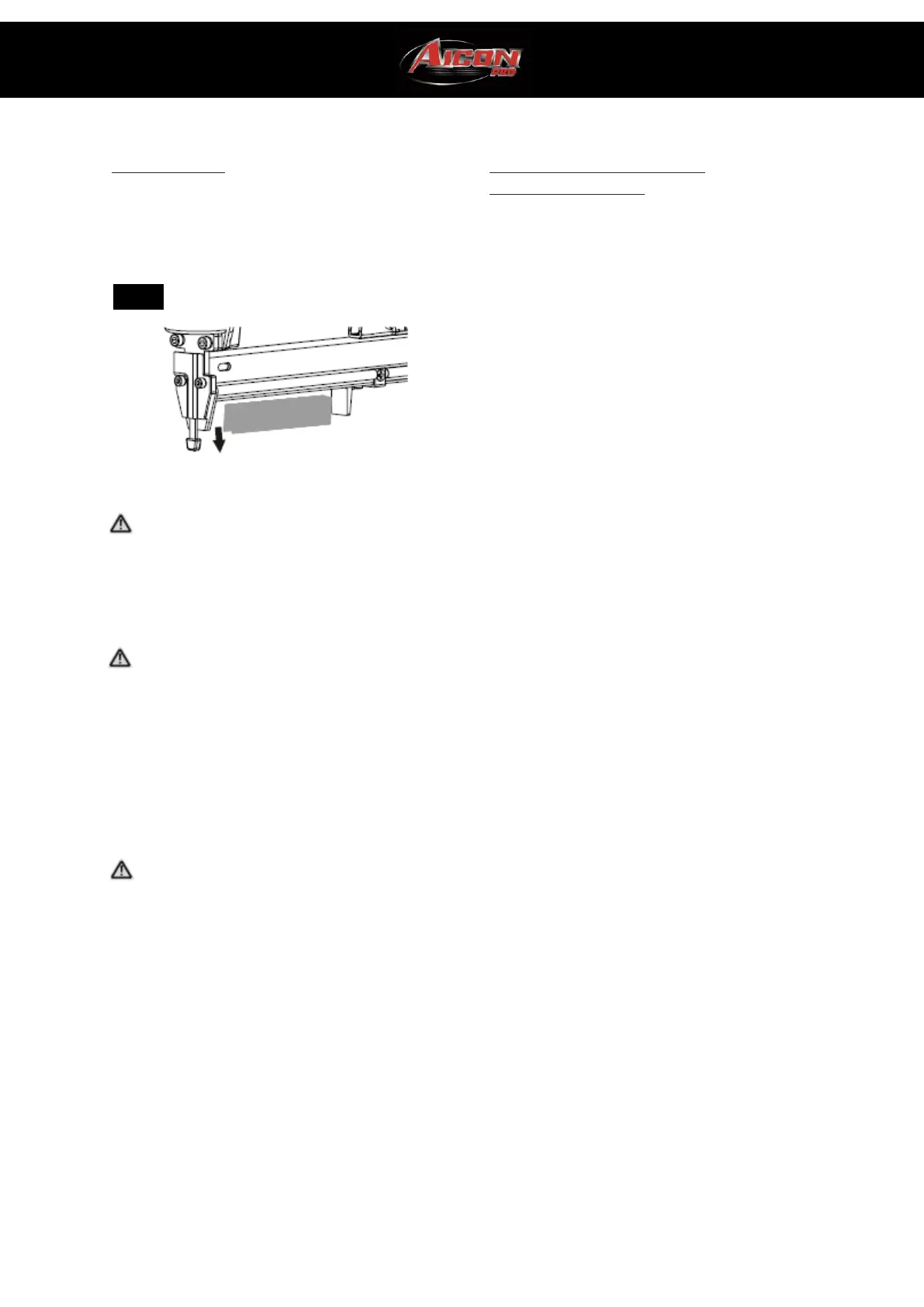

JAM CLEARING
Remove a jammed nail as the following order:
1. Disconnect air hose.
2. Press latch and slid rail open.
3. Remove fasteners.
CLEANING
WARNING
When cleaning a tool be careful not to disassemble any
portion of the tool since internal components may be
misplaced or safety components may be improperly
mounted. Certain cleaning agents such as gasoline,
carbon tetrachloride, ammonia. etc. may damage plastic
parts and o-rings.
WARNING
Do not attempt to clean by inserting pointed objects
through openings. Sharp edges may damage internal
components and cause a serious hazard.
Ventilation openings, the work contact element, and the
trigger must be kept clean and free of foreign matter.
Periodically clean the tool with compressed air. Clean
the magazine. Remove metal or wooden chips which
may have accumulated in the magazine. Periodically
clean magazine with compressed air.
STORAGE
WARNING
Keep out of reach of children and personnel unfamiliar
with tool operation. Lock the storage area. Tools are
dangerous in the hands of personnel unfamiliar with the
tool.
When not in use, the tool should be disconnected and
stored in the storage case in a warm and dry place. When
tool will not be in use for an extended period, apply a
thin coat of the lubricant to the steel parts to avoid rust.
Do not store the tool in a cold weather environment.
HOOKUP INSTRUCTIONS FOR
TOOL TO AIR SUPPLY
NOTE:
For better performance, install a 3/8 inch quick plug(1/4
inch NPT threads) with an inside diameter of 0.315 inch
(8mm) on the nailer and a 3/8 inch quick coupler on the
air hose.
1. With ON/OFF switch in OFF position, plug compressor
into electrical outlet.
2. Close pressure regulator by turning all the way to the
left. Turn compressor ON and let it pump all the way up
to automatic shut-off pressure.
3. Attach air hose to regulator outlet. Adjust pressure
regulator by turning to the right so that outlet pressure
is between 70PSI to 110PSI.
4. Load fasteners into nailer.
5. Point the nailer in a safe direction while attaching to air
hose.
6. Nailer is ready for use. You may need to adjust outlet
pressure to achieve proper fastener depth.
