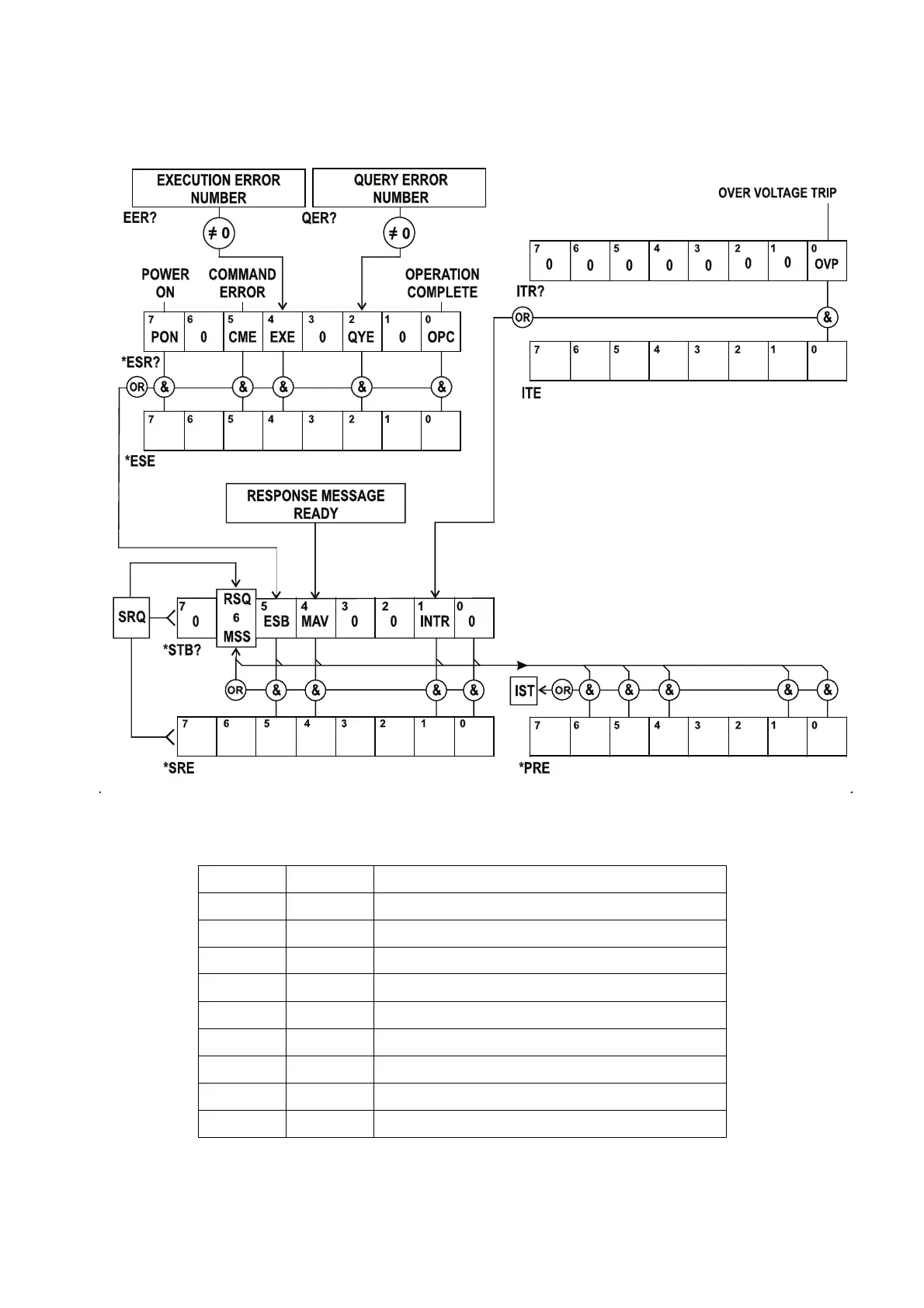

Page 36
15.8
1908
Status Mo
del
15.9
Regis
ter Summar
y
Set
Query
Name
†
ITR?
Input Trip Reg
ister
ITE
ITE?
Input T
rip Enable Register
†
EER?
Execution Err
or Register
†
QER?
Query Error Regist
er
†
*ESR?
Standard Event Status Register
*ESE
*ESE?
Standard Event Status Enable Register
*STB?
Status
Byte R
egister
*SRE
*SRE?
Status Byte Enable Register
*PRE
*PRE?
Parallel Poll Response Enable Register
†
These registers are cleared after being queried, or by the
*CLS comm
and.
36
38
Table of Contents
Default Chapter
2
Table of Contents
2
1 Product Description
5
2 Safety
6
Symbols
7
3 Installation
8
Mains Operating Voltage
8
Mains Lead
9
Mounting
9
Handle/Stand
9
4 Getting Started
10
Using this Manual
10
Installation and Safety
10
AC Power and Battery Operation
10
Switching on and off
10
On/Off Operation with AC Power
10
On/Off Operation Without AC Power
11
Power-Up Settings
11
5 Measurement Connections
11
Input Sockets
11
Multimeter Test Leads
12
Rear Panel Connections
12
Trigger In/Out
12
Digital Interfaces
12
AC Inlet
12
Protective Earth Terminal
12
6 Making Basic Measurements
13
Scale Length
13
Measurement Parameter Selection
13
Measurement Range Selection
13
Making Voltage Measurements
14
Making Current Measurements
14
Making Resistance Measurements
14
Two Wire Measurements
14
Four Wire Measurements
15
Making Continuity and Diode Checks
15
Continuity Measurement
15
Diode Checks
15
Making Frequency Measurements
15
Making Capacitance Measurements
16
Over Voltage Protection
16
Measurement Hold
16
Measurement Null
16
The Cancel Key
16
7 Additional Parameters and Functions
17
Combined AC + DC Measurements
17
Decibel Measurement (Db)
17
Removing Test Lead Resistance (: Null)
17
Temperature Measurement ( C/ F)
18
Touch and Hold (T Hold)
18
Measurement Speed and Measurement Filter
18
Zero Re-Calibration
18
8 Dual Measurement Mode
19
Dual Measurement Combinations
19
Making Voltage and Current Dual Measurements
20
Measurement Update Times
20
9 Triggered Operation
21
Trigger in Signal
21
Trigger out Signal (Measurement Complete)
21
10 Advanced and Programmable Functions
22
Selecting or Cancelling a Function
22
Limits
22
Ax + B
22
Min-Max
23
Delta
23
Watts
24
11 Data Logging
24
Setting-Up the Logger
24
Running the Logger
25
Starting and Stopping the Logger
25
Recalling Logger Readings
25
Clearing Logger Readings
25
12 The Utilities Menu
26
Beep Sound {Beep
26
Measurement Speed {Speed
26
Measurement Filter {Filt
26
External Trigger {E-Tr
26
Battery Condition {Batt
26
Db Reference Impedance {Db-Ref
26
Temperature Probe Setup {Rtd
27
Set Factory Defaults {Reset
27
Switch off on AC Power Disconnection {AC off
27
Measurement Update Symbol {Star
27
GPIB Address {Addr
27
13 Maintenance
28
Calibration
28
Zero Calibration
28
Routine Calibration
28
Hard Reset
28
Fuse Replacement
28
Current Range Fuses
28
Internal AC Power Fuse
29
Cleaning
29
Firmware Updates
29
14 Remote Operation
30
GPIB Interface
30
RS232 Interface
30
USB Interface and Device Driver Installation
31
LAN Interface
31
LAN IP Address and Hostname
32
Mdns and DNS-SD Support
32
ICMP Ping Server
32
Web Server and Configuration Password Protection
32
LAN Identify
32
LXI Discovery Tool
33
VXI-11 Discovery Protocol
33
VISA Resource Name
33
XML Identification Document URL
33
TCP Sockets
33
15 Status Reporting
33
Input Trip Registers (ITR & ITE)
34
Input Trip Register (ITR)
34
Standard Event Status Registers (ESR and ESE)
34
Execution Error Register (EER)
35
Status Byte Register (STB) and GPIB Service Request Enable Register (SRE)
35
GPIB Parallel Poll (PRE)
36
Query Error Register - GPIB IEEE Std. 488.2 Error Handling
36
Power on Settings
36
1908 Status Model
37
Register Summary
37
16 Remote Commands
38
General
38
Remote and Local Operation
38
Remote Command Handling
38
Remote Command Formats
38
Command Timing
39
Response Formats
39
Command List
40
General Commands
40
Main Display Commands
41
Dual Measurement Mode Commands
43
First Level Modifier Commands
43
Second Level Modifier Commands
44
Data Logging Commands
45
Common Commands
46
Status Commands
46
Interface Management Commands
47
17 Default Settings
48
18 Graphical Interface PC Software
49
19 Specifications
50
