CHAPTER 13 MXS STRADA PINOUT
34 35
MXS STRADA

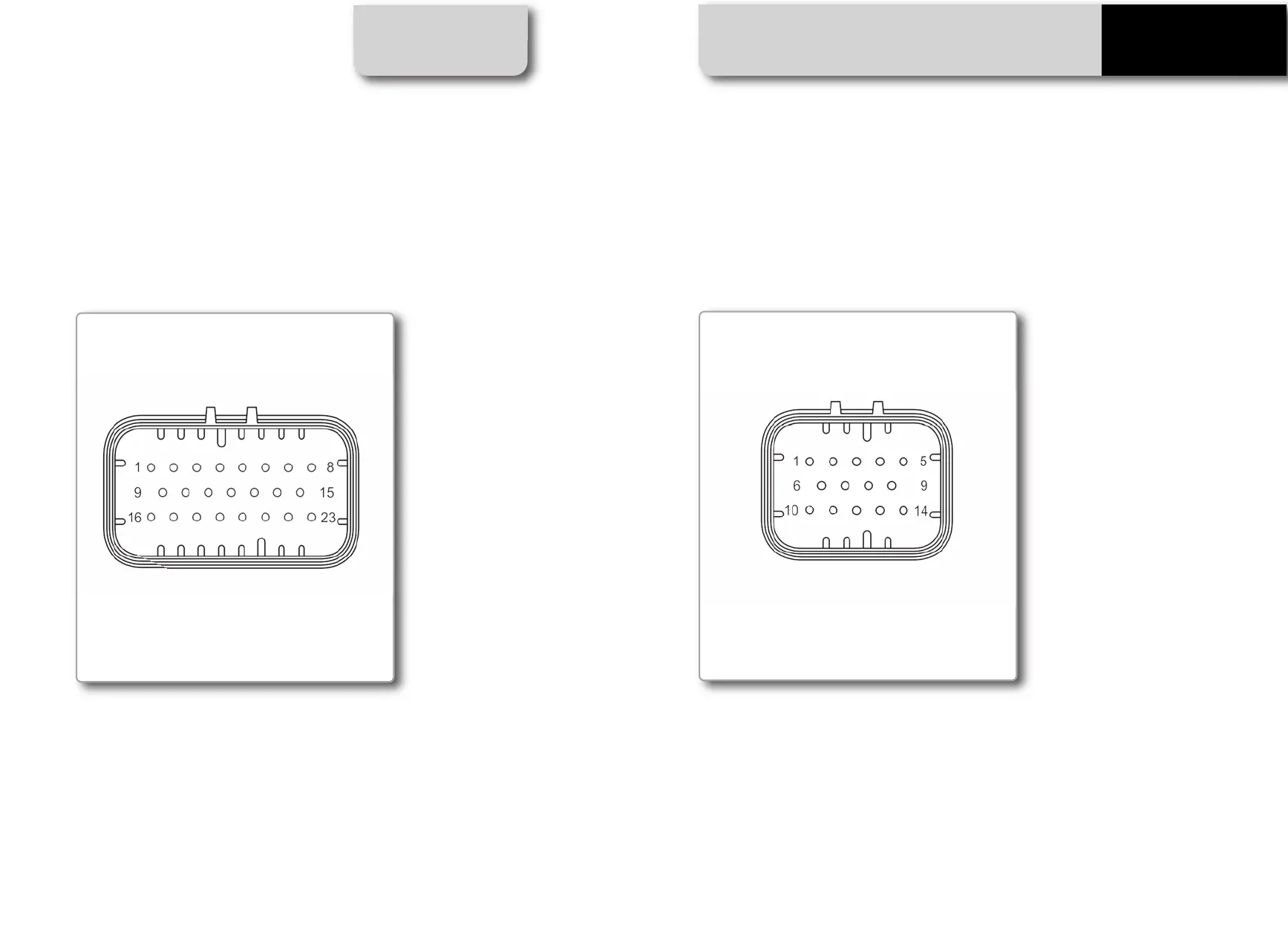

13. MXS Strada Pinout
PIN
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
AMP 23 pin.
Analog Input 1
Analog GND
+Vb Output
+Vreference
Analog Input 2
Analog Input 3
Analog GND
+Vb Output
+Vreference
Analog Input 4
RS232TX
RS232RX
Speed
GND
+Vb output
Digital Output
GND
CAN2+
CAN2-
GND
Lap input
GND
+Vb output
PIN
01
02
03
04
05
06
07
08
09
10
11
12
13
14
AMP 14 pin.
9-15 V Power input
Battery GND
CAN+ Exp
GND
+Vb output CAN
CAN-Exp
+Vb Ext CAN
CAN1+ ECU
CAN1- ECU
K Line ECU
U
SB D+
USB D
GND USB
RPM
