2.3 Install the sight
If the sight is equipped with the mount shown in Fig. 1,
follow the described procedure. For installation with other
mounts, see accompanying instruction.
a Loosen the screw (12) using the Torx T10 tool (3), and
clamp the locking bar (11) around the Picatinny rail.
b With the recoil stop positioned in a groove of the
Picatinny rail, push the sight forward (towards muzzle)
and tighten the screw using the tool. See Fig. 3.
c Tighten the screw until a light resistance is encountered.
Proceed with another 1/4 to 1/2 turn until fully tightened
(3 Nm / 2.2 ft·lb).
CAUTION: Do not overtighten.
1 2

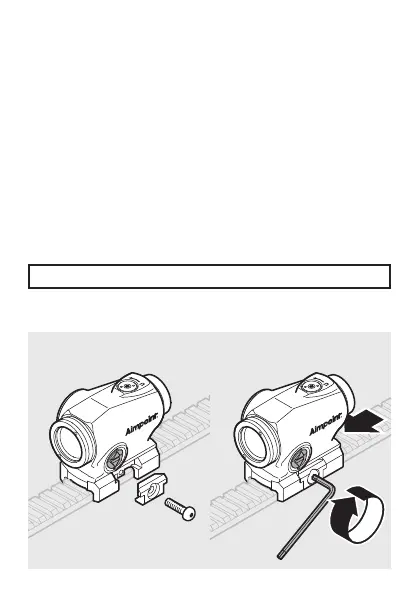

Fig. 3 Install the sight
