4
INSTALLATION
Install the charge controller near the battery(S) on a stable surface. This surface should be solid, even,
dry and nonflammable. The battery cable should be as short as possible and have a cable diameter size to
minimize loss, e.g. 4 mm² at 20 A and 6ft in length (16 AWG).
Do not install the controller in direct sunlight.
To ensure adequate airflow around the controller, allow a 4 inch clearance around the unit. The
temperature at the installation site may never fall below or exceed the maximum permitted ambient
temperature range.
Connect the individual components according to the labels on the bottom of the controller.

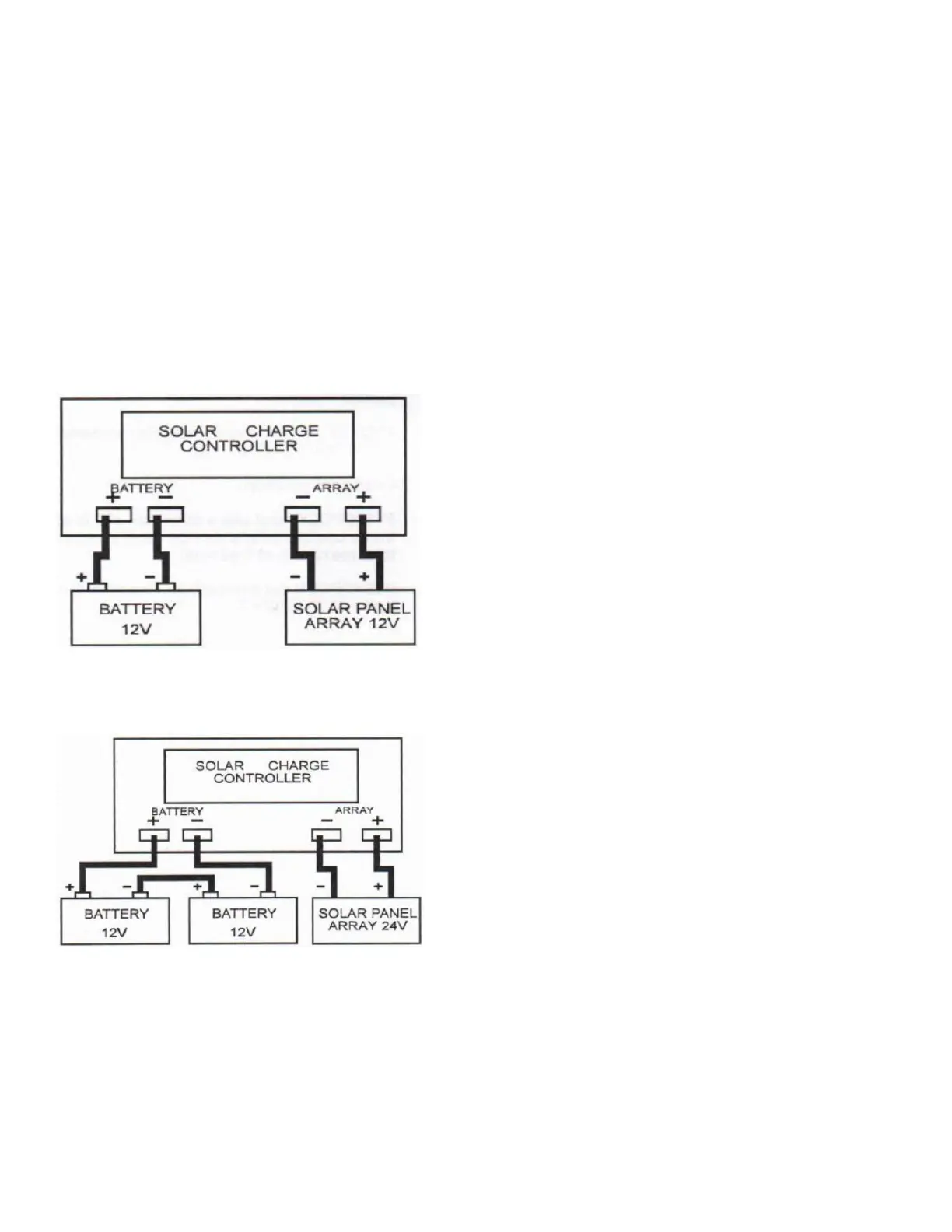

CONNECTION DIAGRAM (BOTTOM VIEW OF CONTROLLER)
12 Volt
24 Volt
*Recommended wire = 10 AWG high quality cable
*There are no user serviceable parts inside the charge controller. Do not disassemble or attempt to repair the unit. Contact
manufacturer.
