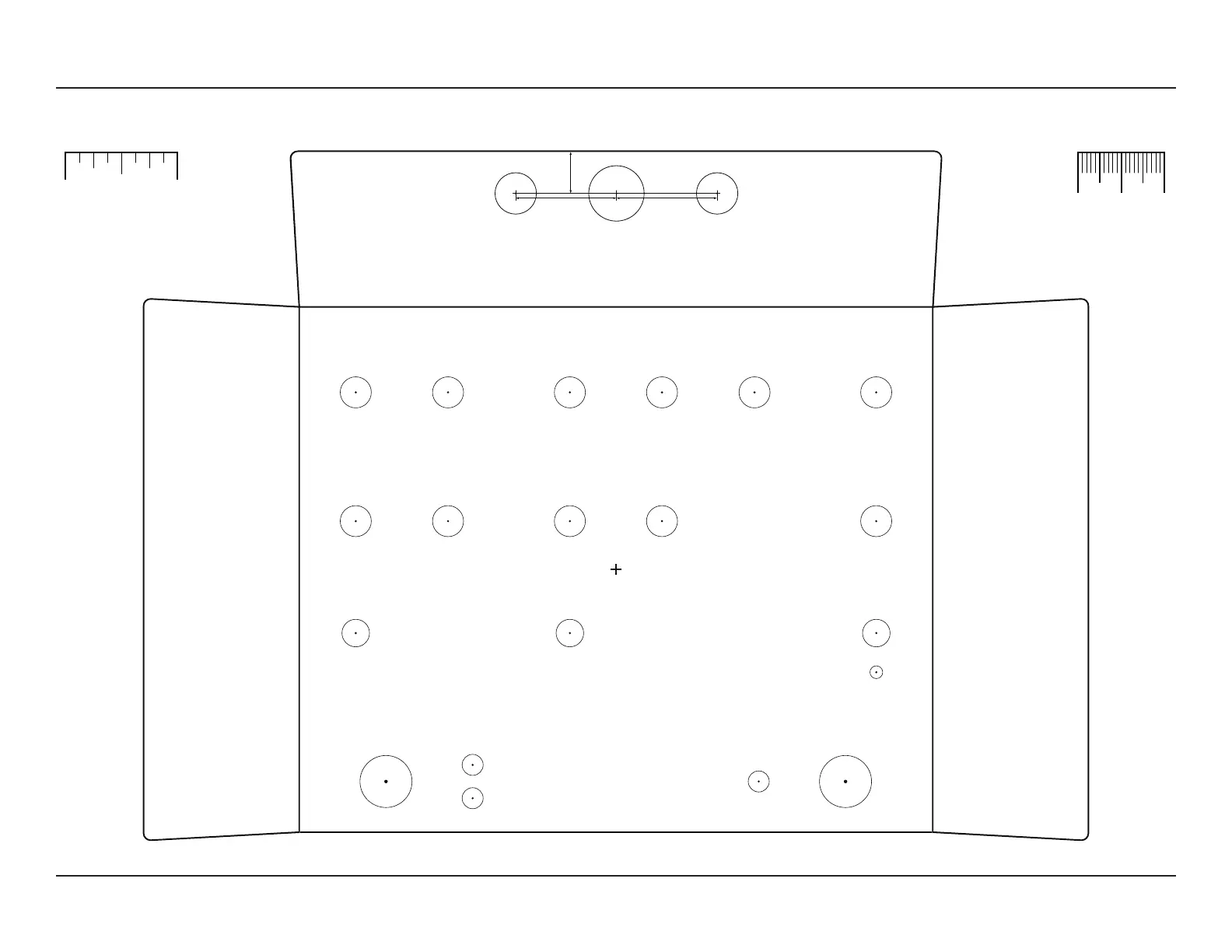

aion Lab Series - Enclosure Drill Template

DRILL TEMPLATE
L4 PREAMP 17
0 1 2
CM
0 1
INCH
ø3/8”
ø1/2”
0.385”
0.9” 0.9”
ø3/8”
OUT
DC
IN
x: -2.33, y: +1.58
ø9/32”
x: -2.33, y: +0.43
ø9/32”
x: -1.50, y: +1.58
ø9/32”
x: -1.50, y: +0.43
ø9/32”
x: -0.41, y: +1.58
ø9/32”
x: -0.41, y: +0.43
ø9/32”
x: +0.41, y: +1.58
ø9/32”
x: +0.41, y: +0.43
ø9/32”
x: +1.24, y: +1.58
ø9/32”
x: +2.33, y: +1.58
ø9/32”
x: +2.33, y: +0.43
ø9/32”
x: +2.05, y: -1.90
ø15/32”
x: -2.05, y: -1.90
ø15/32”
x: -1.28, y: -1.75
ø5mm
x: -1.28, y: -2.05
ø5mm
x: +1.28
y: -1.90
ø5mm
CENTER (0,0)
y: -0.57
x: +2.33
ø1/4”
x: +2.33, y: -0.92
ø3mm
x: -0.41, y: -0.57
ø1/4”
x: -2.33, y: -0.57
ø1/4”
LIMIT
MASTERFREQUENCYMIDRANGE 2VOLUME 2MIDRANGE 1VOLUME 1
BASS 2TREBLE 2BASS 1TREBLE 1
CHANNEL BYPASS
DEEP 2 COMP.DEEP 1
