Aiphone IE Series User Manual

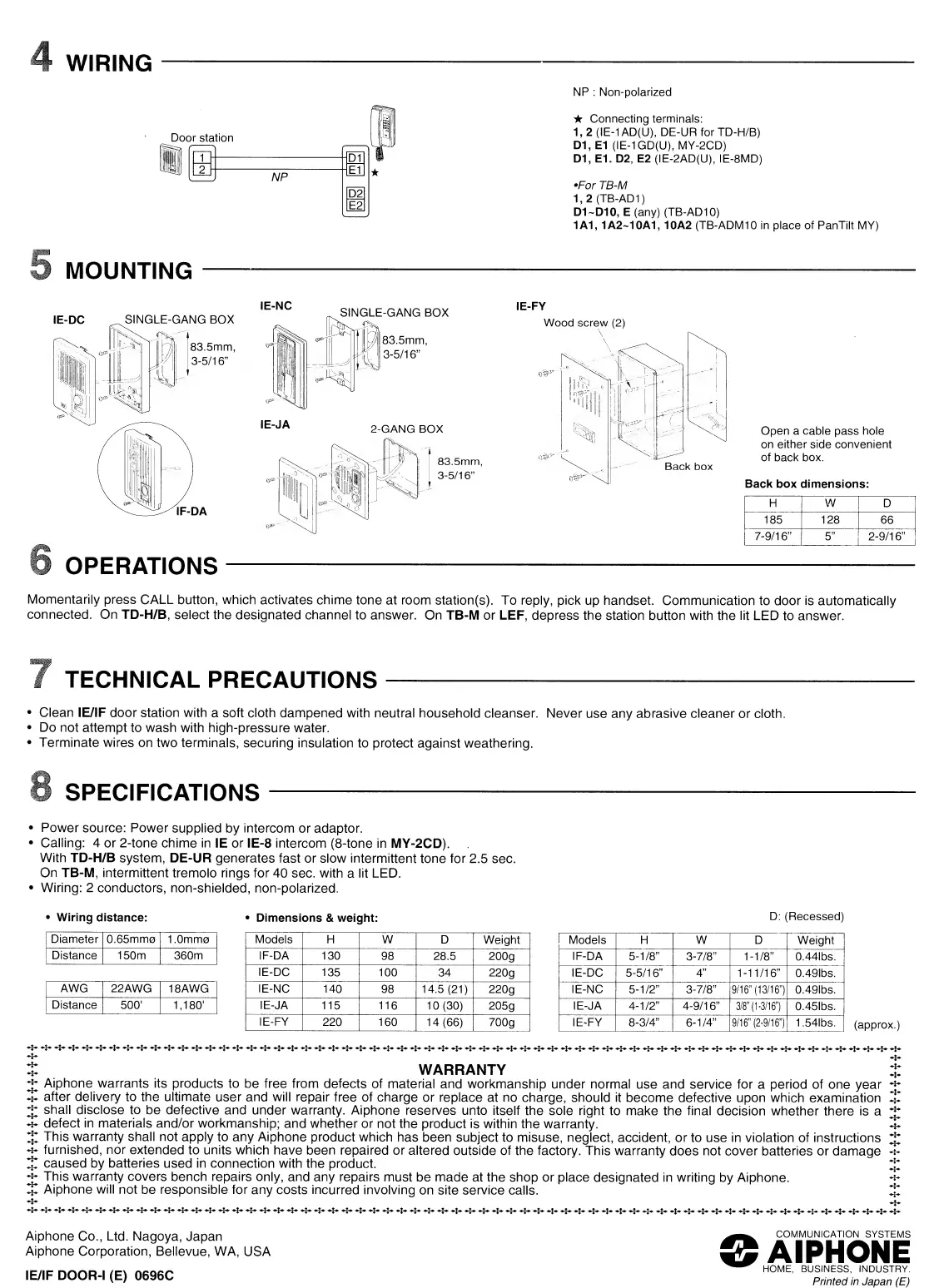

4 WIRING
NP : Non-polarized
★ Connecting terminals:
1, 2 (lE-IAD(U), DE-UR for TD-H/B)
D1, El (IE-1GD(U), MY-2CD)
D1, El. D2, E2 (IE-2AD(U), IE-8MD)
•For TB-M
1,2 (TB-AD1)
D1-D10, E (any) (TB-AD10)
1A1,1A2-10A1,10A2 (TB-ADM10 in place of PanTilt MY)
5 MOUNTING
6 OPERATIONS
IE-FY
Wood screw (2)
Open a cable pass hole
on either side convenient
of back box.
Back box dimensions:
H W
D
185 128
66
7-9/16”
_
2-9/16”
Momentarily press CALL button, which activates chime tone at room station(s). To reply, pick up handset. Communication to door is automatically
connected. On TD-H/B, select the designated channel to answer. On TB-M or LEF, depress the station button with the lit LED to answer.
7 TECHNICAL PRECAUTIONS-
• Clean IE/IF door station with a soft cloth dampened with neutral household cleanser. Never use any abrasive cleaner or cloth.
• Do not attempt to wash with high-pressure water.
• Terminate wires on two terminals, securing insulation to protect against weathering.
8 SPECIFICATIONS-
• Power source: Power supplied by intercom or adaptor.
• Calling: 4 or 2-tone chime in IE or IE-8 intercom (8-tone in MY-2CD).
With TD-H/B system, DE-UR generates fast or slow intermittent tone for 2.5 sec.
On TB-M, intermittent tremolo rings for 40 sec. with a lit LED.
• Wiring: 2 conductors, non-shielded, non-polarized.
• Wiring distance: • Dimensions & weight:
Diameter O.65mm0 1 .Omme
Distance 150m 360m
Models H
W D
Weight
IF-DA
130
98
28.5 200g
IE-DC
135 100 34
220g
IE-NC
140
98
14.5 (21)
220g
IE-JA
115
116 10(30)
205g
IE-FY
220 160
14(66) 700g
AWG
22AWG 18AWG
Distance
500'
1,180'
D: (Recessed)
Models H W D
Weight
IF-DA
5-1/8”
3-7/8” 1-1/8” 0.44lbs.
IE-DC
5-5/16”
4”
1-11/16” 0.49lbs.
IE-NC 5-1/2”
3-7/8”
9/16” (13/16”) 0.49lbs.
IE-JA
4-1/2”
4-9/16”
3/8” (1-3/16”) 0.45lbs.
IE-FY 8-3/4” 6-1/4”
9/16” (2-9/16”) 1.54lbs.
♦ j* ♦ $* ♦
♦
WARRANTY
Aiphone warrants its products to be free from defects of material and workmanship under normal use and service for a period of one year
after delivery to the ultimate user and will repair free of charge or replace at no charge, should it become defective upon which examination
shall disclose to be defective and under warranty. Aiphone reserves unto itself the sole right to make the final decision whether there is a
defect in materials and/or workmanship; and whether or not the product is within the warranty.
This warranty shall not apply to any Aiphone product which has been subject to misuse, neglect, accident, or to use in violation of instructions
furnished, nor extended to units which have been repaired or altered outside of the factory. This warranty does not cover batteries or damage
caused by batteries used in connection with the product.
This warranty covers bench repairs only, and any repairs must be made at the shop or place designated in writing by Aiphone.
Aiphone will not be responsible for any costs incurred involving on site service calls.
♦ «$*>
Aiphone Co., Ltd. Nagoya, Japan
Aiphone Corporation, Bellevue, WA, USA
IE/IF DOOR-1 (E) 0696C
© C OMMUNICATION SYSTEMS
AIPHONE
HOME, BUSINESS, INDUSTRY.
Printed in Japan (E)
