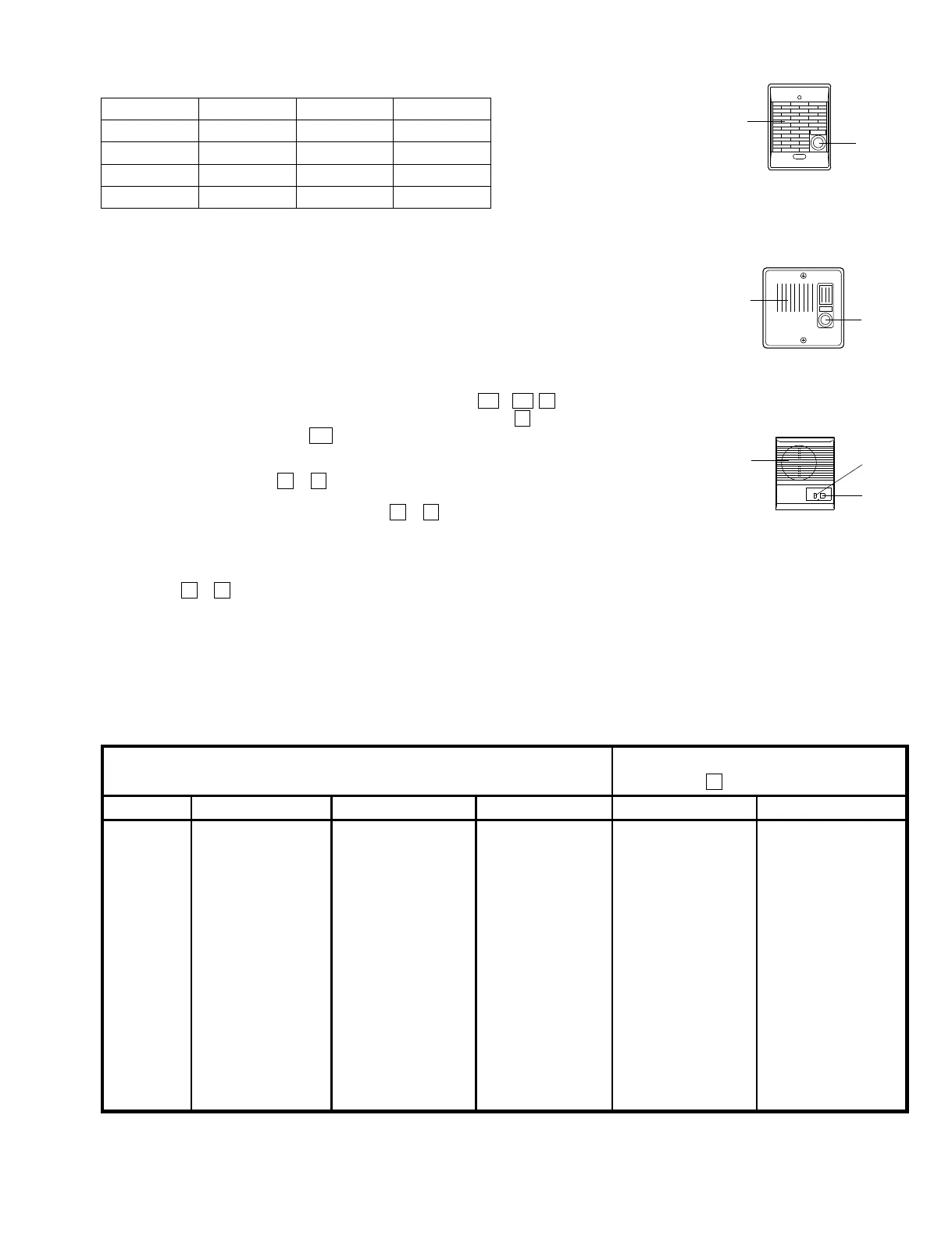

– 3 –
Features
• Four LEF master stations, intermixable.
Capacity Door release
All Call transmit
4 stations
6 stations X
11 stations X
Models
LEF-3
LEF-5
LEF-10
LEF-10S
11 stations X X
• Optional features:
* All Call, chime & Music distribution (w/BG-10C adaptor, LEF-10S only)
* Selective door release (w/RY-PA relay, 1 per door, excluding LEF-3)
* 8 Ω horn speaker (AH-108 w/LT-1 transformer & NP-25V capacitor)
* External signaling when door/sub calls (w/RY-AC/A and external device)
WIRING:
• Loop-wired system with multi-conductor shielded cable.
All-master system: 4 common wires + 1 wire per number of stations in the system.
If All Call is included: Add 4 additional common wires ( P1 ~ P3 , Y ).
If Door Release is included (LEF-5/10/10S): Add 1 common L + 1 individual wire
for each door to be released (
K#
terminals).
Single-master system: 2 wires homerun* from each sub to the master.
Leave jumpers between E &
–
installed.
*NOTE: It is recommended even in a single master system that 3 wires are used for
all sub stations in the system, and that the E &
–
jumpers are removed. This ensures
that the wiring is proper in the event of system expansion in the future.
Intermixed system with masters and subs: 3 wires from each sub to the nearest
master, or 2 common + 1 individual wire per station on a loop. Remove jumpers
between E &
–
from all stations in a multi-master system.
Model # # of Conductors Wire # (22AWG) Wire # (18AWG) # of Conductors
Wire # (22AWG)
LEF-1C 12 822212 x x x
LEF-3C 12 822212 x x x
LEF-5C 15 822215 x 20 822220
LEF-10C 20 822220 x 30 822220 + 822210
LEF-3 9 822210 x x x
LEF-5 12 822212 x 20 822220
LEF-10 20 822220 x 30 822220 + 822210
LEF-10S 20 822220 x 30 822220 + 822210
LE-A 3 822203 821803 x x
LE-B 3 822203 821803 x x
LE-D 3 822203 821803 x x
LE-DA 3 822203 821803 x x
With selective door release and/or camera
call-up (incl. K wires b/n masters, max.)
Standard Communication (Max. # of stations)
Wire Reference Chart
Speaker
CALL
LE-D
LE-DA
Speaker
CALL
LE-DA
Speaker
CALL
LE-A, 1-call
LE-AN, w/ PRIVACY
Speaker
CALL
PRIV.
