Aiphone LEM-1DL - External Signaling and Magnetic Locks; External Signaling Wiring; Magnetic Lock System Configuration

LE Series
Sub
1
E
+
-
EL
EL
LEM-1DL
RY-AC
+
-
PS-1225UL
Component
Module
*
BELL
Power source
for bell
WHITE
RED
BLACK
YELLOW
YELLOW
1
E
-
Leave jumper
between E and -
attached
Normally Open Dry
Contact to door
strike and power

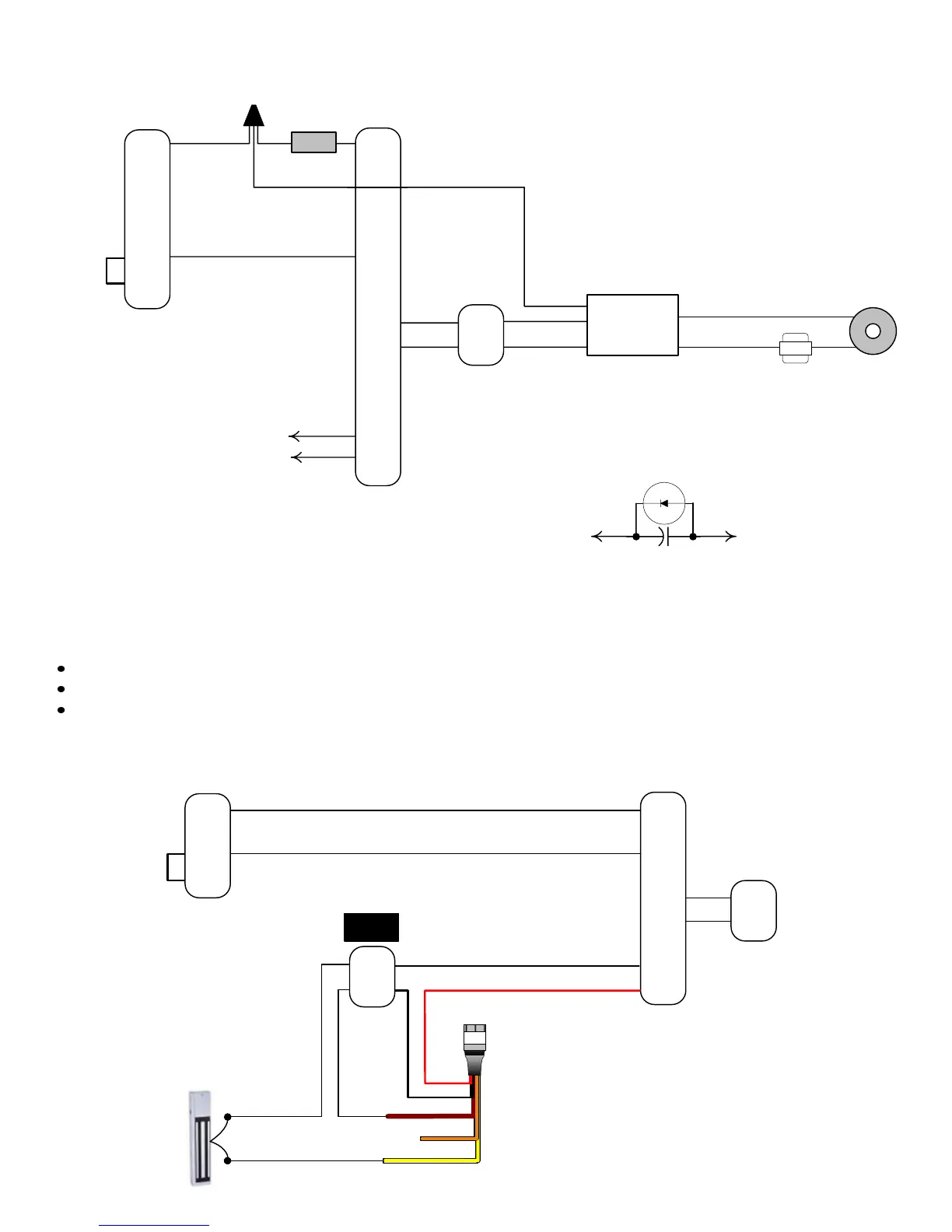

WIRING DIAGRAM: LEM-1DL System with External Signaling using RY-AC Relay
SYSTEM CONFIGURATION:
LEM-1DL with Door Release contact activating a Normally Closed relay for a Magentic Lock
LEM-1DL Supplement
Pg. 3
Output of RY-AC (Yellow
wires) provide a momentary
dry contact closure while
the call button on the door
station is being pressed.
Component Module*
If a DAK-2S is not available, install components as shown below.
Capacitor: 25V, 15-33mfd Non-polarized
Diode: 1N 4148
To 1 of LEM-1DL
To 1 of LE-D and
WHITE wire of RY-AC
NOTE: Intercom must
be powered with 12V
DC power supply
when RY-AC is
connected.
MAGNETIC LOCK WIRING METHOD:
(Normally Closed contact)
Lock Power: Power source for Magnetic Lock
When using 12-18V DC, use the RY-18L.
When using 24-36V DC, use the RY-24L.
LE Series Sub
1
E
+
-
EL
EL
LEM-1DL
~
~
PT-1210N
1
E
-
Leave jumper
between E and -
attached
Red
Blk
Brn
Org
Yel
COM
N/C
Use Brown & Yellow wires
when connecting to Maglock.
LOCK
POWER
+
-
RY-18L / RY-24L
Magnetic Lock
Note: For applications requiring a Normally Closed (N/C) contact (Magnetic locks, etc.), an external
relay should be chosen based on the lock’s power source.
When using a 12-18V DC magnetic lock, Aiphone’s RY-18L relay may be used.
For 24V DC magnetic locks, Aiphone’s RY-24L relay may be used.
A 3
rd
party relay of similar specifications may also be used. Refer to manufacturer’s
documentation for connection details.
