Aiphone MY-2CD Specifications

SPECIFICATIONS:
System: Video Sentry PanTilt Plus
Power Source: 18V DC - Use PS-18C
Operating Tempature: 14
° ~ 140° F
Communication: Hands free at door station, Handset at monitor station
Camera Unit: CCD (Charged Coupled Device) with infrared LED illumination
Overall Viewing Area: 36” Vert. x 72” Horiz. at 20”
Degree of Pan: 122 degrees
Degree of Tilt: 76 degrees
Wiring Distance: Door station to MY-2CD: 165’ w/22AWG; 330’ w/18AWG
MY-2CD to farthest MYH-2CD: 245’ w/18AWG
PS-18C to MY-2CD: 16’ w/18AWG
Material: ABS plastic
Color: White
Mounting: Surface mount
Backbox: 1-Gang box or ring
Door Release Contact: Normally Open - 24V DC, 1A Max.
Dimensions (H x W x D): 9” x 7-1/2” x 2-3/4”

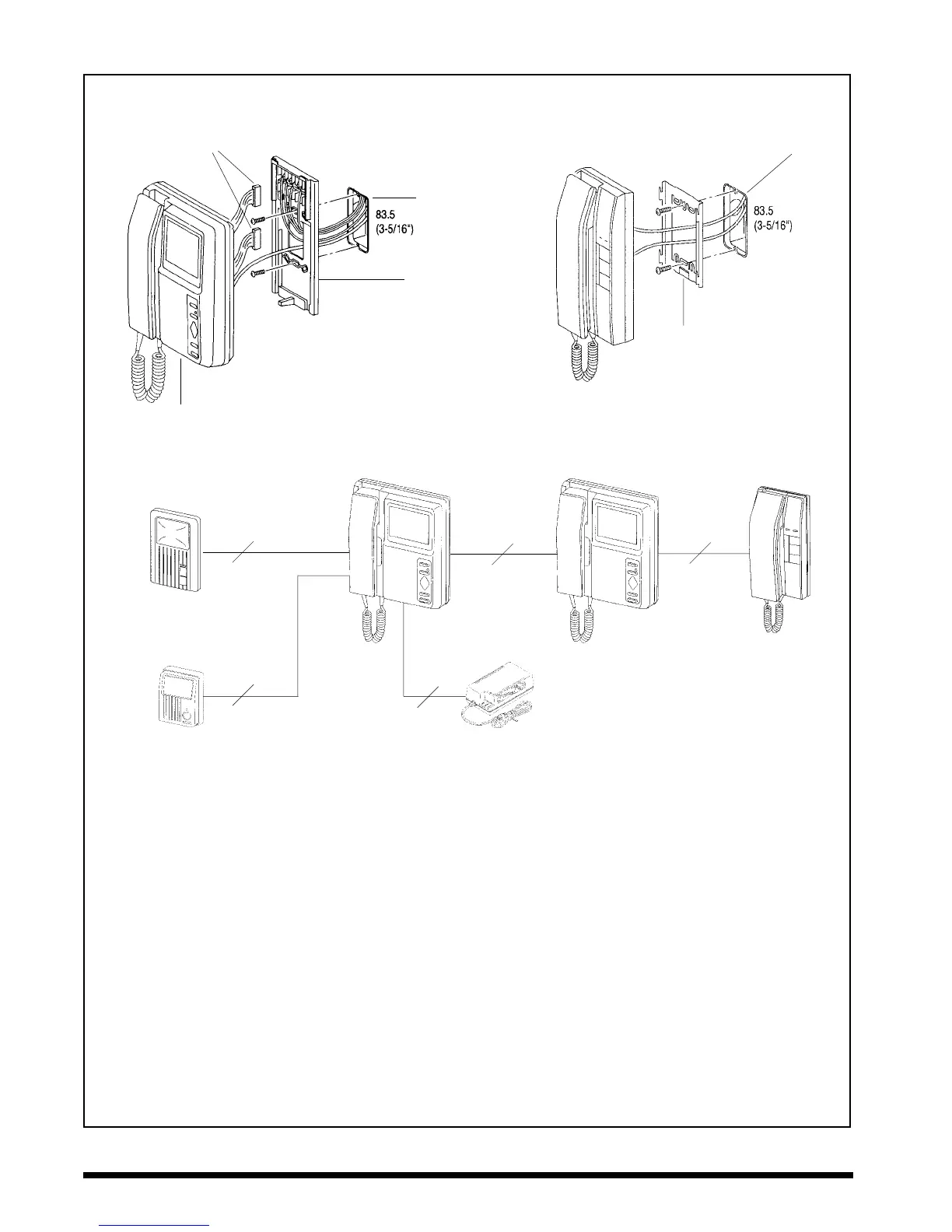

MOUNTING & INSTALLATION:
System Layout Example:
MY-2CD
MY-DC
PS-18C
