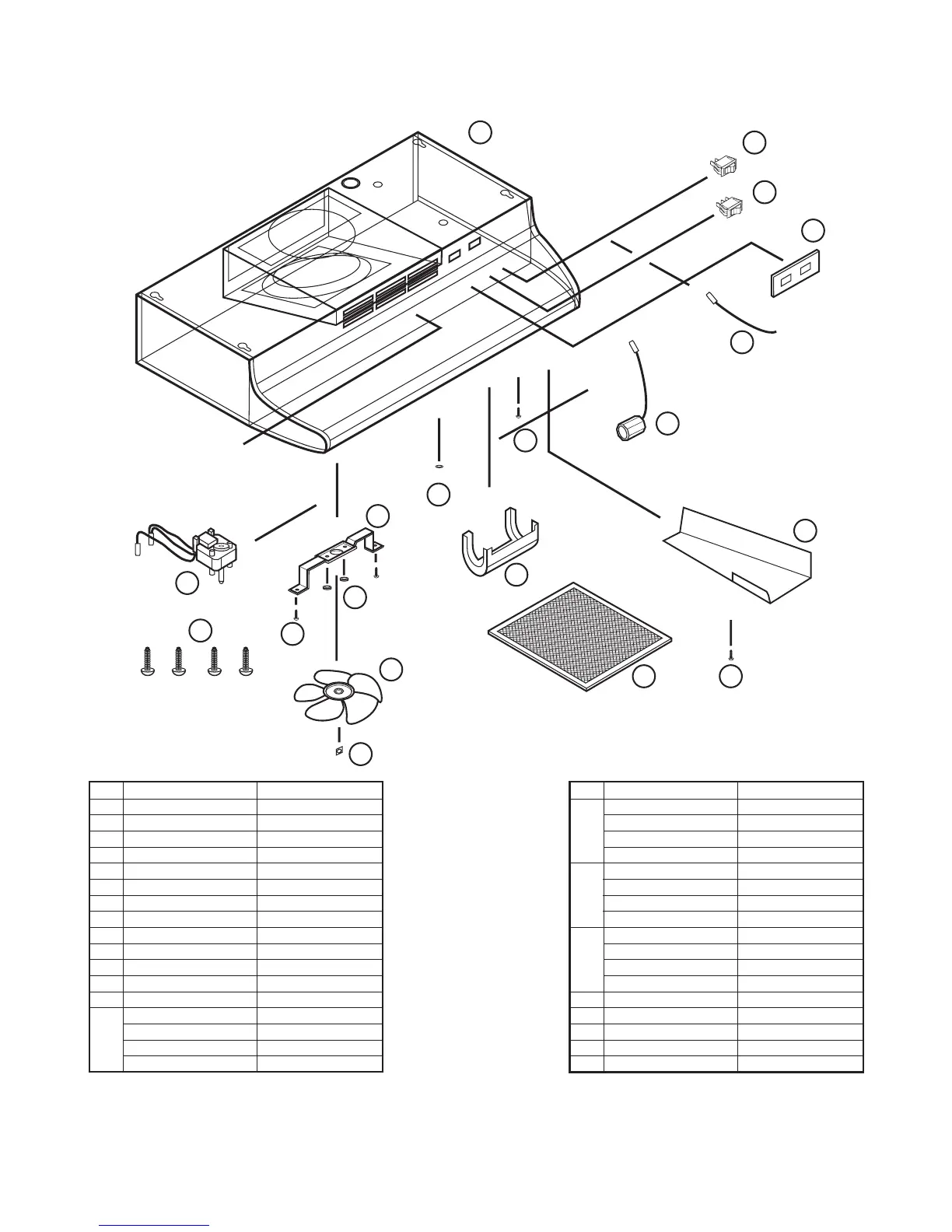

Air King RF55 - Replacement Parts Diagram

17
19
16
15
14
13
10
9
12
81
7
11
5
3
2
6
18
4
www.airkinglimited.com
# Description Replacement Part #
15 Motor Switch - White 5S1418003
Biscuit 5S1418004
Almond 5S1418005
Black 5S1418006
16 Light Switch - White 5S1419003
Biscuit 5S1419004
Almond 5S1419005
Black 5S1419006
17 Wrapper -21" 5S1425010
24" 5S1425020
30" 5S1425030
36" 5S1425040
18 Motor 5S2199001
19 #8 Screw 5S1999017
Installer: _________________________________________________________ Installation Date:_________________________________________
Place of Purchase: _________________________________________________ Model Number: __________________________________________
REPLACEMENT PARTS DIAGRAM
# Description Replacement Part #
1 Filter RF55 5S4108001
2 Push Nut 5S4199001
3 Fan Blade 5S4199002
4 #8 B Screw 5S1999015
5 Hex Nut 5S1999006
6 Motor Bracket 5S4199003
7 Light Lens 5S4199004
8 #6 AB Screw 5S1999004
9 Wire Compartment Cover 5S4199005
10 Lamp Holder 5S4199006
11 Bushing 5S1999016
12 #10 Ground Screw 5S1999002
13 Jumper Wire 5S4199007
14 Switch Plate - White 5S1421003
Biscuit 5S1421004
Almond 5S1421005
Black 5S1421006
5
6728001 Rev. B 3-07
