Air Torque AT601U - User Manual

53 pages

Save Page as PDF

To Next Page

To Next Page

Loading...

Original instructions

EB AT-RP-4GU EN

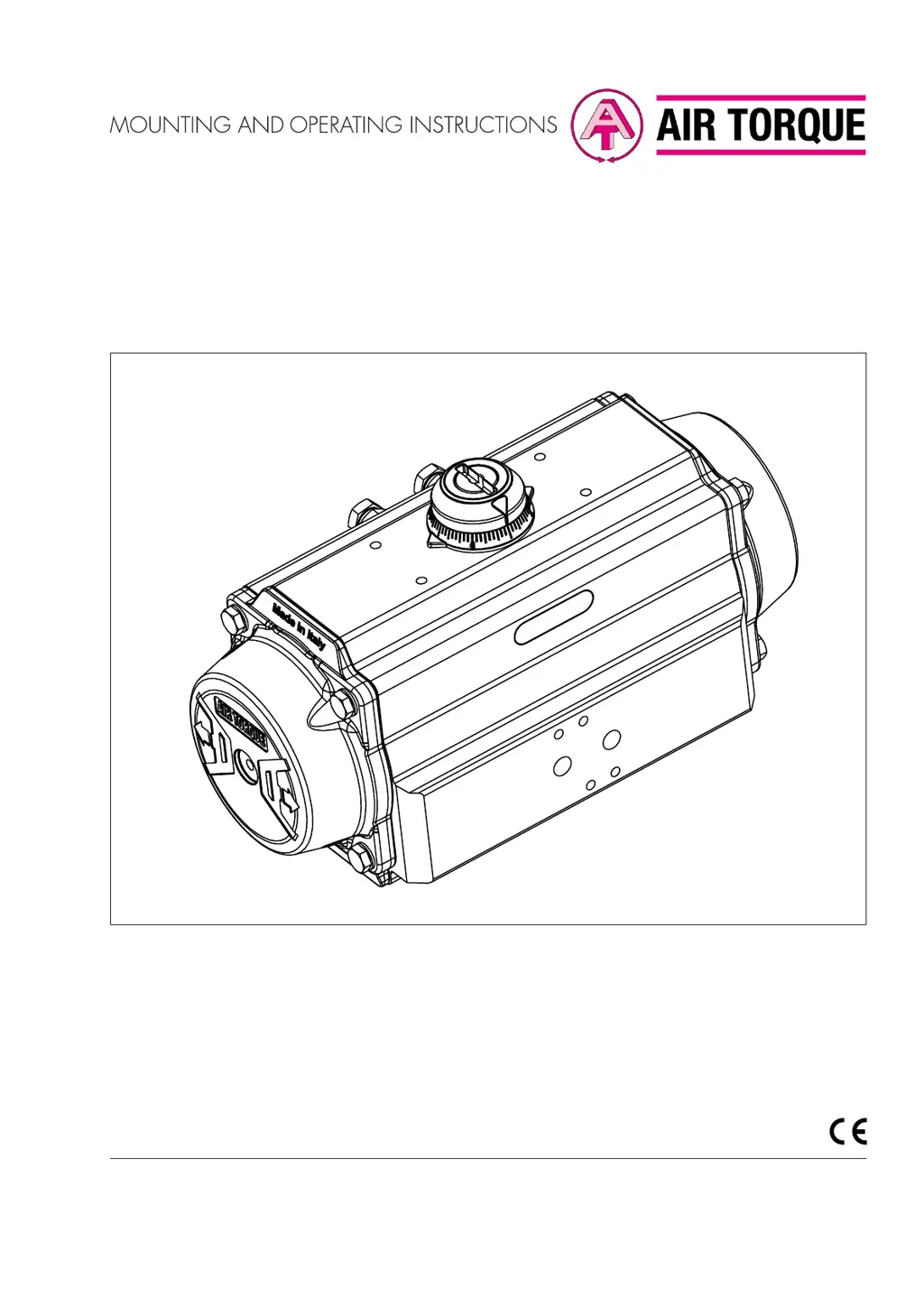

4th Generation Upgrade Series

Rack&Pinion actuators

AT045U → AT801U models

Edition November 2020

Table of Contents

Other manuals for Air Torque AT601U

Installation Maintenance And Operating Instructions12 pages

Questions and Answers

J
Julia SimpsonAug 8, 2025
What to do if my Air Torque AT601U Controller loses power?
- C
  Carlos FosterAug 8, 2025
  If your Air Torque Controller experiences a loss of power, first ensure that the supply pressure is correct by checking the control system. Then, inspect all tubing and fittings for blockages, compression, or sealing issues, removing any obstructions or damaged parts. Also, you should disassemble the actuator to inspect and replace any damaged seals. Check the air exhaust hole and remove any plugs or foreign objects that may be blocking it.
N
nathanharrisonAug 18, 2025
Why is my Air Torque AT601U rotation uneven?
- M
  Matthew SmithAug 18, 2025
  Uneven rotation in your Air Torque Controller can stem from several causes. Start by checking the supply system to ensure the pressure is correct. If that's not the issue, the actuator may need lubrication; disassemble it, lubricate all sliding parts, and then reassemble. Worn or damaged components can also cause this, so inspect and replace any that are faulty. Ensure the control system components are correctly assembled. If the actuator is mounted on a valve, consult the valve documentation and contact the manufacturer for assistance.
N
Nicole CaldwellAug 29, 2025
How to fix incomplete rotation of Air Torque AT601U Controller?
- T
  Tanya BallardAug 29, 2025
  Incomplete rotation of your Air Torque Controller can occur due to several reasons. First, ensure the stroke is correctly adjusted. Next, disassemble the actuator and check for any foreign objects inside. Also, incorrect assembly after maintenance can cause this issue, so disassemble and reassemble the actuator correctly. Make sure the control system components are correctly assembled. If the actuator is mounted on a valve, check the valve documentation and contact the manufacturer.

Summary

Safety Instructions and Measures

Intended Use

Describes the intended application and operational scope of the actuator.

Reasonably Foreseeable Misuse

Outlines specific applications and activities that are not considered intended use.

Qualifications of Operating Personnel

Specifies the required training and knowledge for personnel handling the actuator.

Personal Protective Equipment

Notes on Severe Personal Injury

Details hazards that can result in death or severe injury if not avoided.

Notes on Personal Injury

Highlights risks and precautions to prevent moderate personal injury.

Markings on the Device

Design and Principle of Operation

Shipment and On-site Transport

Transporting and Lifting the Actuator

Mounting and Assembly

Mounting the Actuator Over the Valve

Details the process of installing the actuator onto the valve assembly.

Start-up

Operation

Malfunctions

Troubleshooting

Lists common malfunctions and their recommended solutions.

Emergency Action

Service

Preparation for Servicing

Disassembly

Reassembly

Annex

Tightening Torques

Specifies torque values for various screws and nuts used in assembly.

Summary

Safety Instructions and Measures

Intended Use

Describes the intended application and operational scope of the actuator.

Reasonably Foreseeable Misuse

Outlines specific applications and activities that are not considered intended use.

Qualifications of Operating Personnel

Specifies the required training and knowledge for personnel handling the actuator.

Personal Protective Equipment

Notes on Severe Personal Injury

Details hazards that can result in death or severe injury if not avoided.

Notes on Personal Injury

Highlights risks and precautions to prevent moderate personal injury.

Markings on the Device

Design and Principle of Operation

Shipment and On-site Transport

Transporting and Lifting the Actuator

Mounting and Assembly

Mounting the Actuator Over the Valve

Details the process of installing the actuator onto the valve assembly.

Start-up

Operation

Malfunctions

Troubleshooting

Lists common malfunctions and their recommended solutions.

Emergency Action

Service

Preparation for Servicing

Disassembly

Reassembly

Annex

Tightening Torques

Specifies torque values for various screws and nuts used in assembly.
