29-32-12 PB 401 CONF 00 - PRESSURE
SWITCH - SYSTEM - REMOVAL/INSTALLATION
Print Date: July 05, 2018 Page 2 of 19
© AIRBUS S.A.S. ALL RIGHTS RESERVED. CONFIDENTIAL AND PROPRIETARY DOCUMENT.
FR44
B
A
C
A
Z147
FR41
FR42
B
B
1
8
9
7
6
5
2
3
3151GN
1151GN
4
HP MANIFOLD OF THE
YELLOW HYDRAULIC SYSTEM
SHOWN
196BB
C
N_MM_293212_4_AAS0_01_00

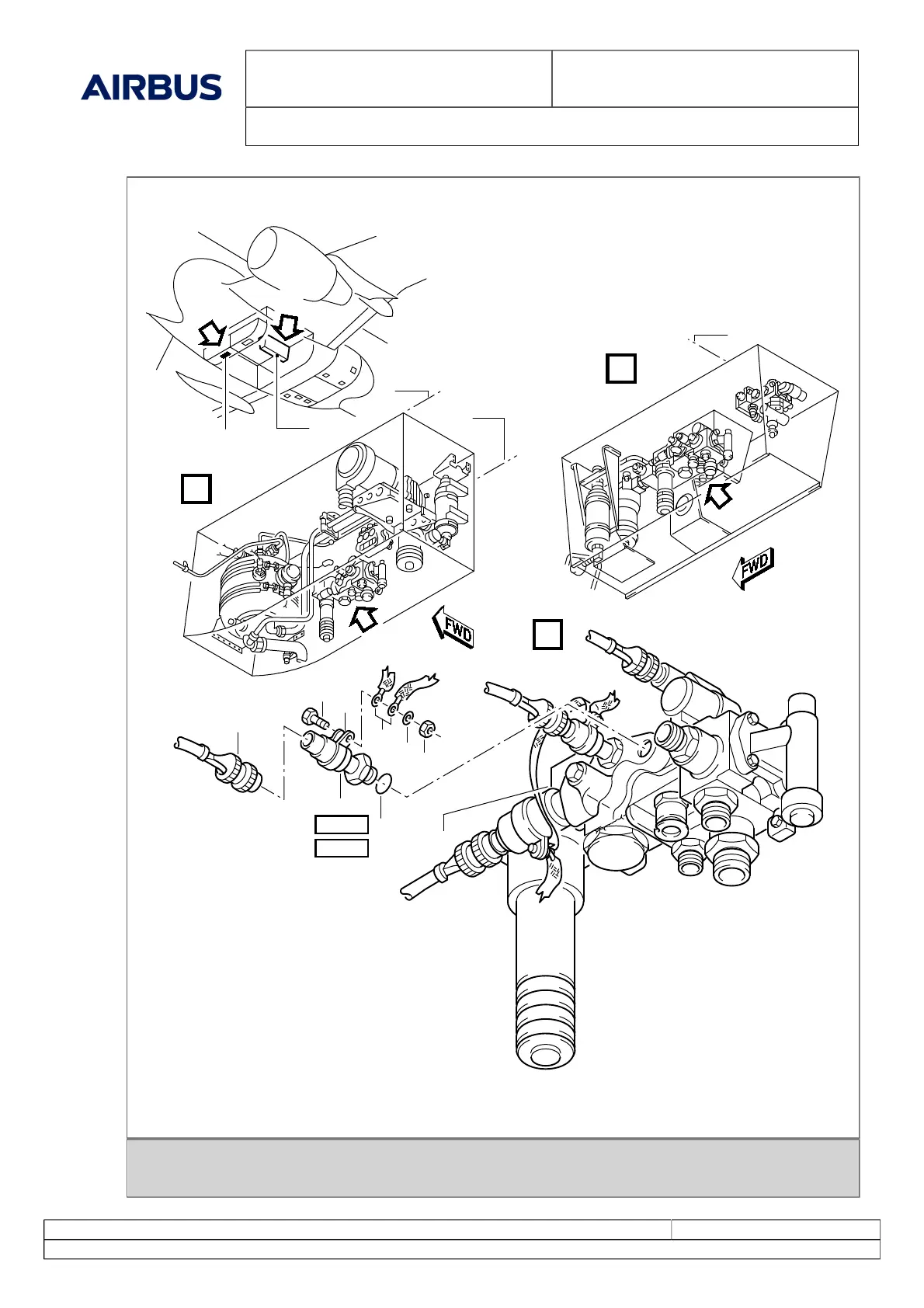

Figure 29-32-12-991-00100-00-D / SHEET 1/1 - System
Pressure Switch of the Green and Yellow Hydraulic Systems
** ON A/C ALL
