AirCycler g1 - Wiring Diagram; Key; Selecting Your Component Equipment; Air Handler

3
AC DOC
REV 9/14/2016
SELECTING YOUR COMPONENT EQUIPMENT
AIR HANDLER
The 2012 IECC requires the central blower used with the AirCycler® g1 to use an electronically commutated motor.

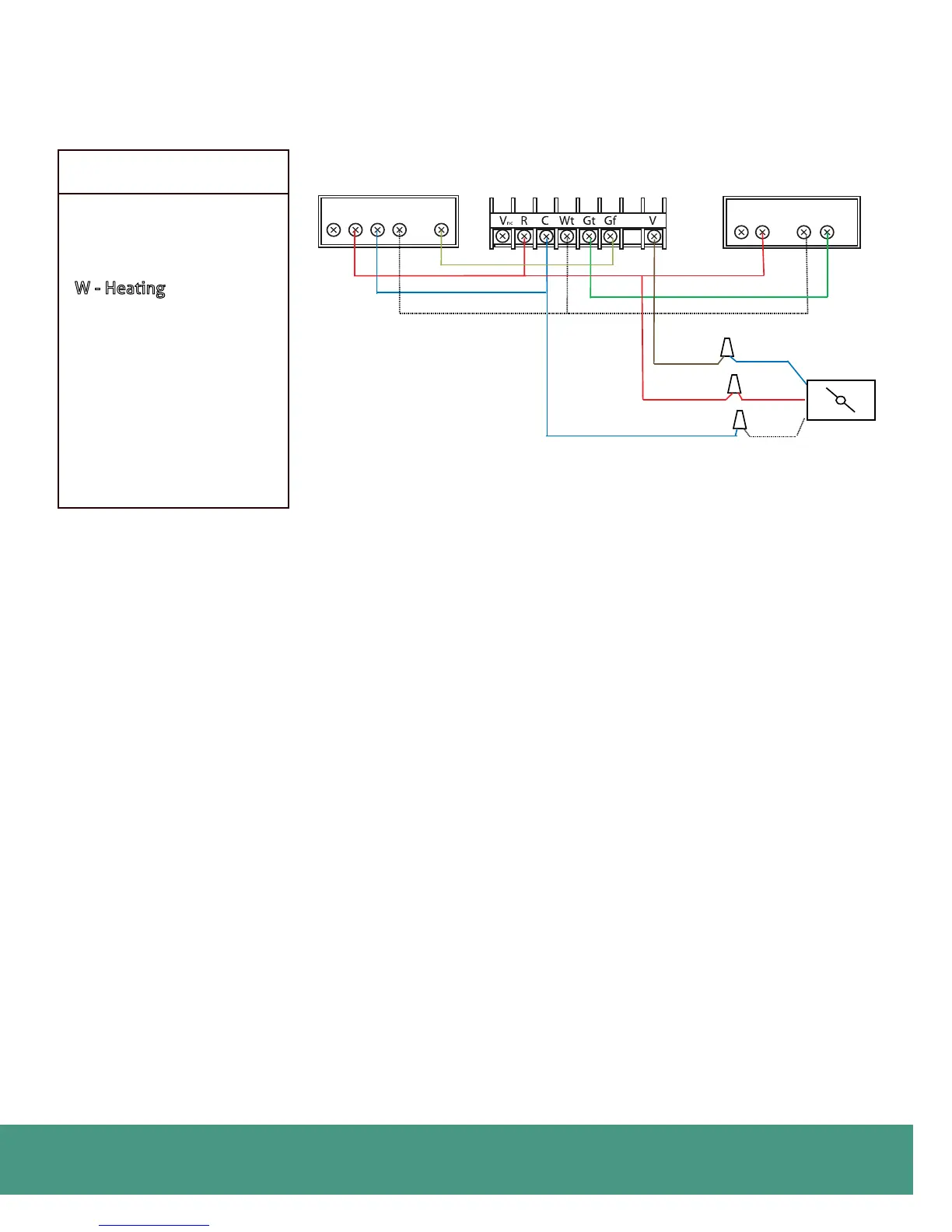

WIRING DIAGRAM
Y R W G
Y R C
W G
White
OPTIONAL
DAMPER
Red
Blue
THERMOSTAT
AirCycler® g1AIR HANDLER
KEY
R - 24VAC Power
C - Common
Gt - Fan From Thermostat
Gf - Fan To Furnace
V - Vent
Vnc - Normal Closed Vent
