Airflow DUPLEXVENT DV72 R - Page 10

1
0
Installation Instructions
SECOND FIX
–

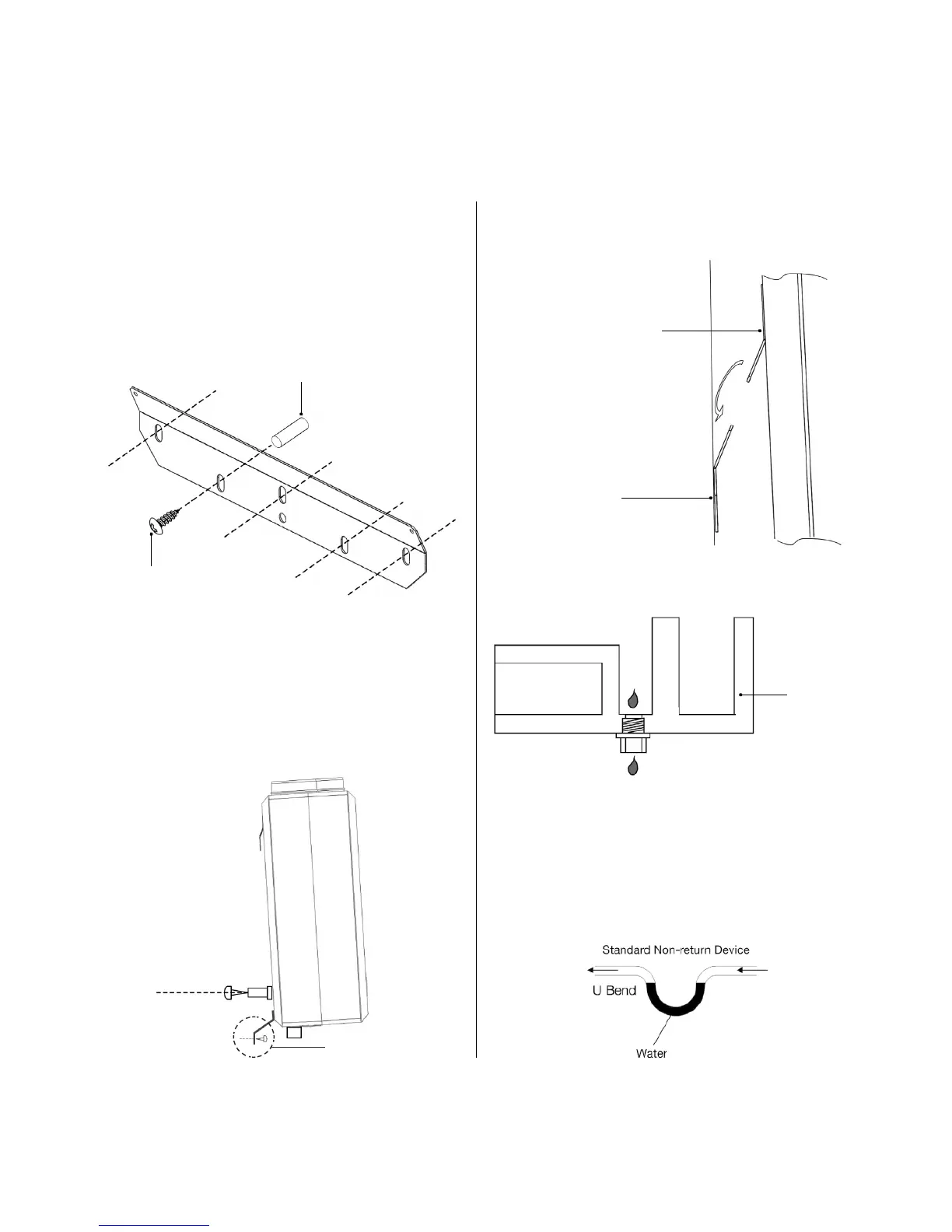

Installing Vertically Hung unit
1. Attach the wall bracket to a flat stable
surface that is capable of bearing the
unit’s weight, 12Kg. Ensure that the
bracket is positioned so that there is
enough space for the condensate drain and
ducts to be connected. Fixing kit provided.
3.
Slide
the
unit
onto
the
wall
bracket
and
attach ducting and drain.
Pre fixed bracket
on the back of the
Duplexvent unit
Raw
Plugs x 5
W
all bracket
Screws x 5
Connect 22mm PVC drain fitting
2.
Attach
spacers
x
2
with
screws
provided.
The spacers ensure that the unit tilts
forward to improve drainage. Use
the
tie down cable if required to secured
the
bottom of the unit.
Anti – Vibration Mount
Foam
casing
4.
The
drainage
from
the
unit may
be
connected
to
an
internal
waste
water system or soil pipe with an
appropriate non-return device. One way
valve device is recommended. Insulate
pipes in an unheated loft space.
Wall fit only
