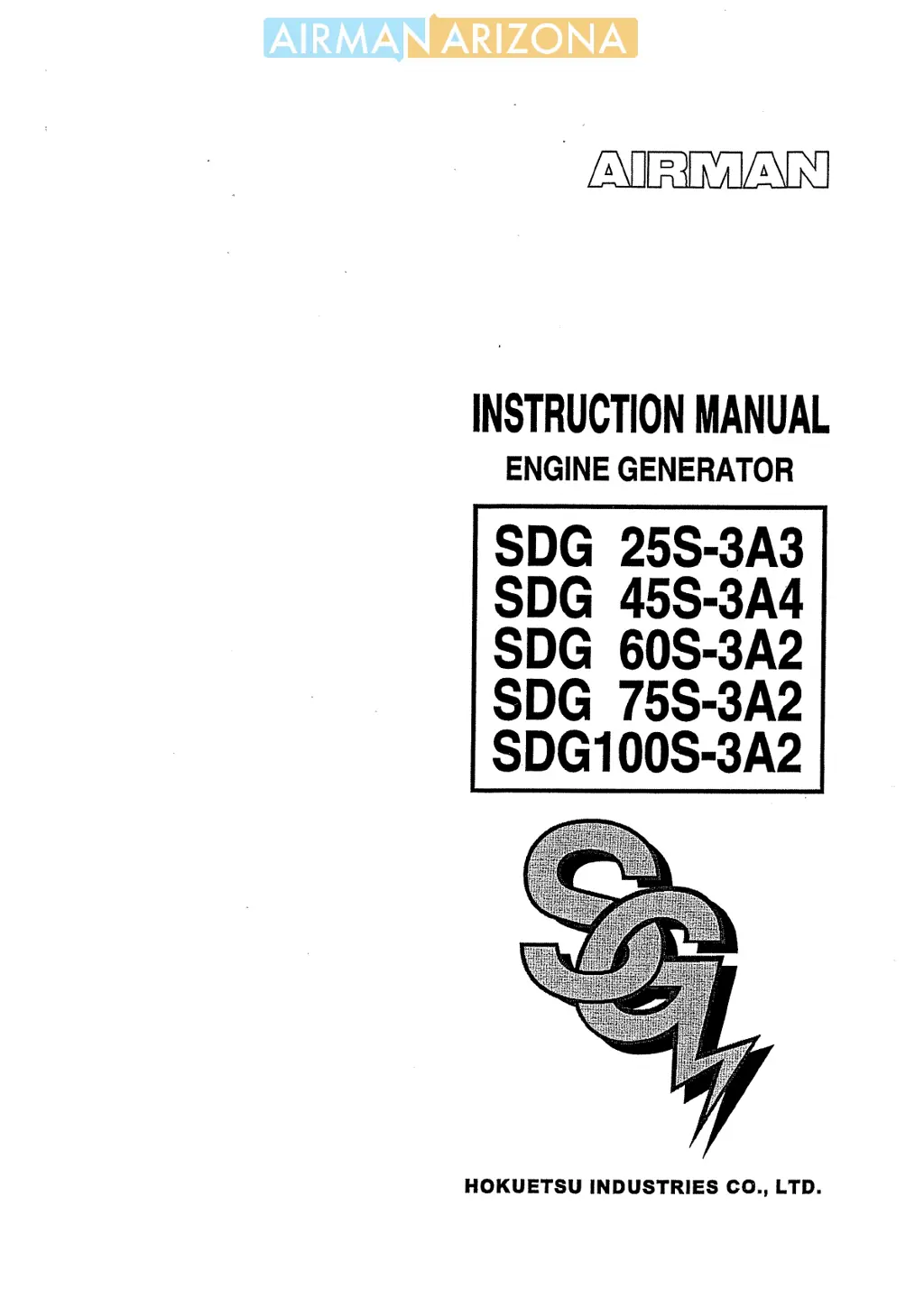

AirMan SDG100S-3A2 - User Manual

76 pages

Save Page as PDF

To Next Page

To Next Page

Loading...

www.AirmanArizona.com

REQUEST PARTS ON LINE

www.AirmanArizona.com

REQUEST PARTS ON LINE

Table of Contents

Questions and Answers

E
Eric BrownAug 10, 2025
What to do if the engine oil pressure warning lamp turns on in my AirMan SDG100S-3A2 Inverter?
- J
  Jennifer ColeAug 10, 2025
  If the engine oil pressure warning lamp illuminates, it could be due to several reasons. First, check if there is an engine oil shortage and replenish the oil if needed. Other potential causes include a clogged engine oil filter (change it), a malfunctioning oil pressure switch (replace it), or loosened/disconnected wiring or connectors (check and fasten them).
B
Blake BairdAug 17, 2025
Why does the over crank warning lamp go on in my AirMan SDG100S-3A2 Inverter?
- M
  matthew16Aug 17, 2025
  The over crank warning lamp might activate due to several issues. It could be caused by a fuel filter clogging, in which case you should disassemble, clean, and change the filter. Another cause might be a filter clogging in the fuel air-bleeding electromagnetic pump (SDG45S/60S/75S), so change the filter. Also, a malfunctioning fuel cut off solenoid may be the reason, so replace the solenoid. The warning lamp can also indicate that there is no diesel fuel oil, so replenish the fuel. Finally, air mixing in fuel pipings may be the cause, so bleed the air.
M
Michael TrevinoAug 25, 2025
How to fix a coolant temperature warning lamp that turns on in AirMan SDG100S-3A2 Inverter?
- J
  Jill CaldwellAug 26, 2025
  If the coolant temperature warning lamp turns on, consider the following potential causes: 1. Radiator clogging (clean it). 2. Faulty thermostat (change it). 3. Faulty coolant temperature switch (change it). 4. Shortage of coolant (replenish it). 5. Slip of fan belt (adjust tension). 6. Looseness or disconnection of wiring or connectors (check and fasten).
A
Amy TorresSep 1, 2025
What causes the charge warning lamp to turn on in AirMan SDG100S-3A2?
- P
  pcampbellSep 1, 2025
  The charge warning lamp turning on may indicate an alternator problem (check or change it), a slipping fan belt (fasten or change it), or looseness/disconnection of wiring or connectors (check and fasten them).
