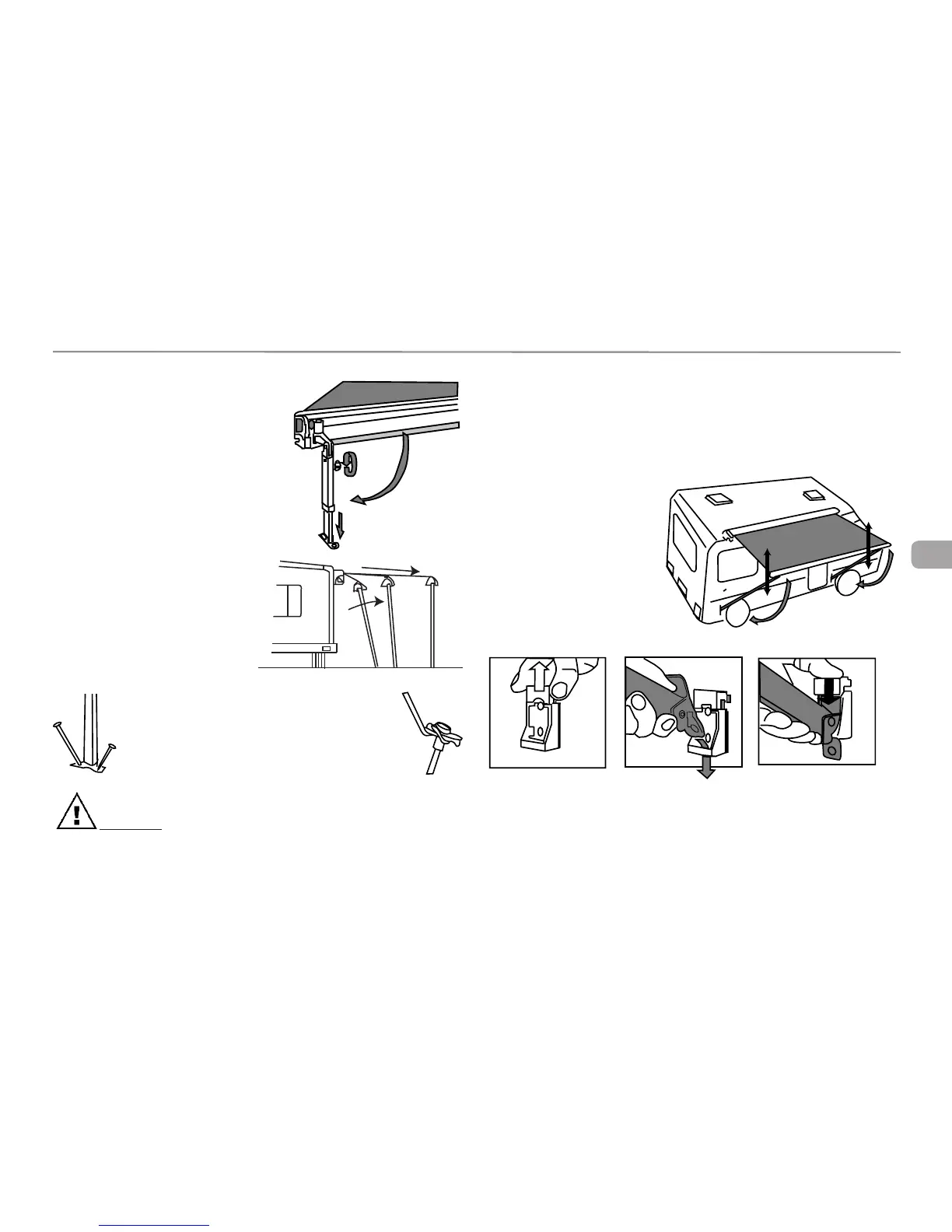

4. After leg clears case, rotate leg down
and extend leg to the ground. Use leg ten-
sion knob to secure leg length to ground.
Repeat with other leg. NOTE: Awning poles
are stored on the floor behind the rear center
sofa and are accessed by opening the rear
cargo doors. When traveling store the poles
securely using the straps provided.
4a. To use the carport position, legs
sitting on the ground, crank the
awning completely out while moving
the support arms each time when
necessary.
Drive ground stakes through the holes in the carport
foot and into the ground for support or tie off on a
rope stake.
CaUTiOn. GROUND STAKES WILL NOT PREVENT THE AWNING
FROM MOVING IN THE WIND!
4b. To use the bottom brackets, swing each arm toward the vehicle, lift the
bracket pin and position foot into bracket and then release the pin. Then turn
crank until awning is all of the way out. Turn the crank back a partial turn to
back wind the awning slightly. This tightens the fabric.
After unrolling the awning completely fix the legs at the chosen height.
