Maintenance
8-22 Flying Cloud
19 Flying Cloud
Main Circuit, 30 Amp
Circuit 1, 20 Amp
A Air Conditioner 16.0 Amps
Circuit 2, 20 Amp (15 Amp - CSA)
B Converter (Wired Direct) 8.0 Amps
C Curbside Living Area Receptacle 1.5 Amps
C Curbside Living Area Receptacle
- CSA
1.0 Amps
D Blu-Ray Player Receptacle 1.5 Amps
D Blu-Ray Player Receptacle - CSA 1.0 Amps
Circuit 3, 20 Amp (15 Amp - CSA)
E Microwave Receptacle 12.0 Amps
Circuit 4, 20 Amp (15 Amp - CSA)
F Bathroom Receptacle (GFI) 1.5 Amps
F Bathroom Receptacle (GFI) - CSA 1.0 Amps
G TV Receptacle 1.5 Amps
G TV Receptacle - CSA 1.0 Amps
H Refer Receptacle 2.7 Amps
J Outside Receptacle 1.5 Amps
J Outside Receptacle - CSA 1.0 Amps
K Galley Receptacle 1.5 Amps
K Galley Receptacle - CSA 1.0 Amps
L Dinette Receptacle 1.5 Amps
L Dinette Receptacle - CSA 1.0 Amps
Circuit 5, 20 Amp (15 Amp - CSA)
M Water Heater (Wired Direct) 12.0 Amps
5 Amp DC to AC Inverter Circuit
N 600 Watt Inverter, 7 Amp Breaker, 10 Amp
Transfer Switch
P Inverted Living Area Receptacle
R Inverted Blu-Ray Player Receptacle
S Inverted TV Receptacle (Single)

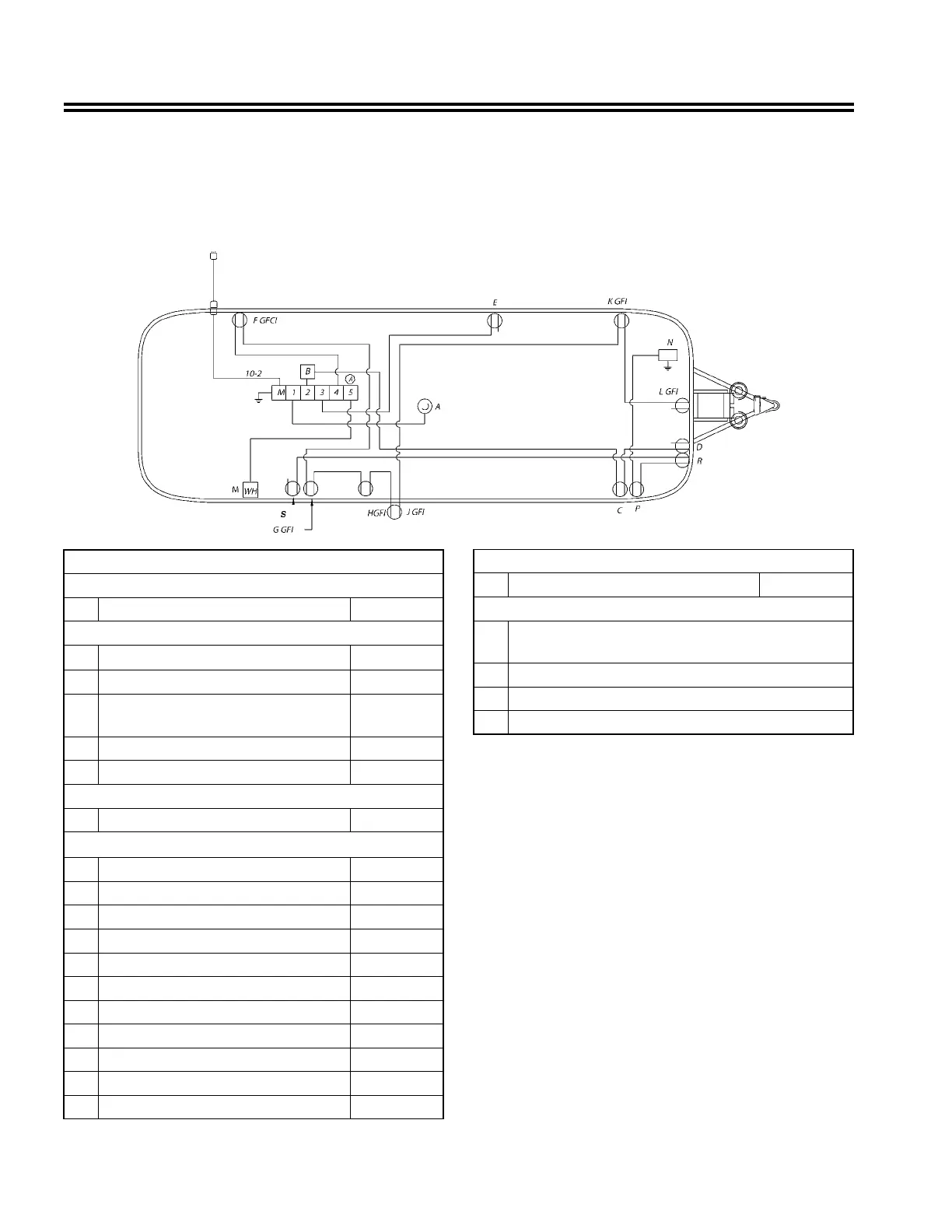

110-Volt/30- and 50-Amp Diagrams
The following electrical diagrams are representative of the National Electric Code (NEC) and Canadian Standards
Association (CSA). All circuits are NEC with the exception of CSA circuits as specied in each respective table.
