Airstream 2015 Flying Cloud - Page 94

Maintenance
8-24 Flying Cloud
23D Flying Cloud

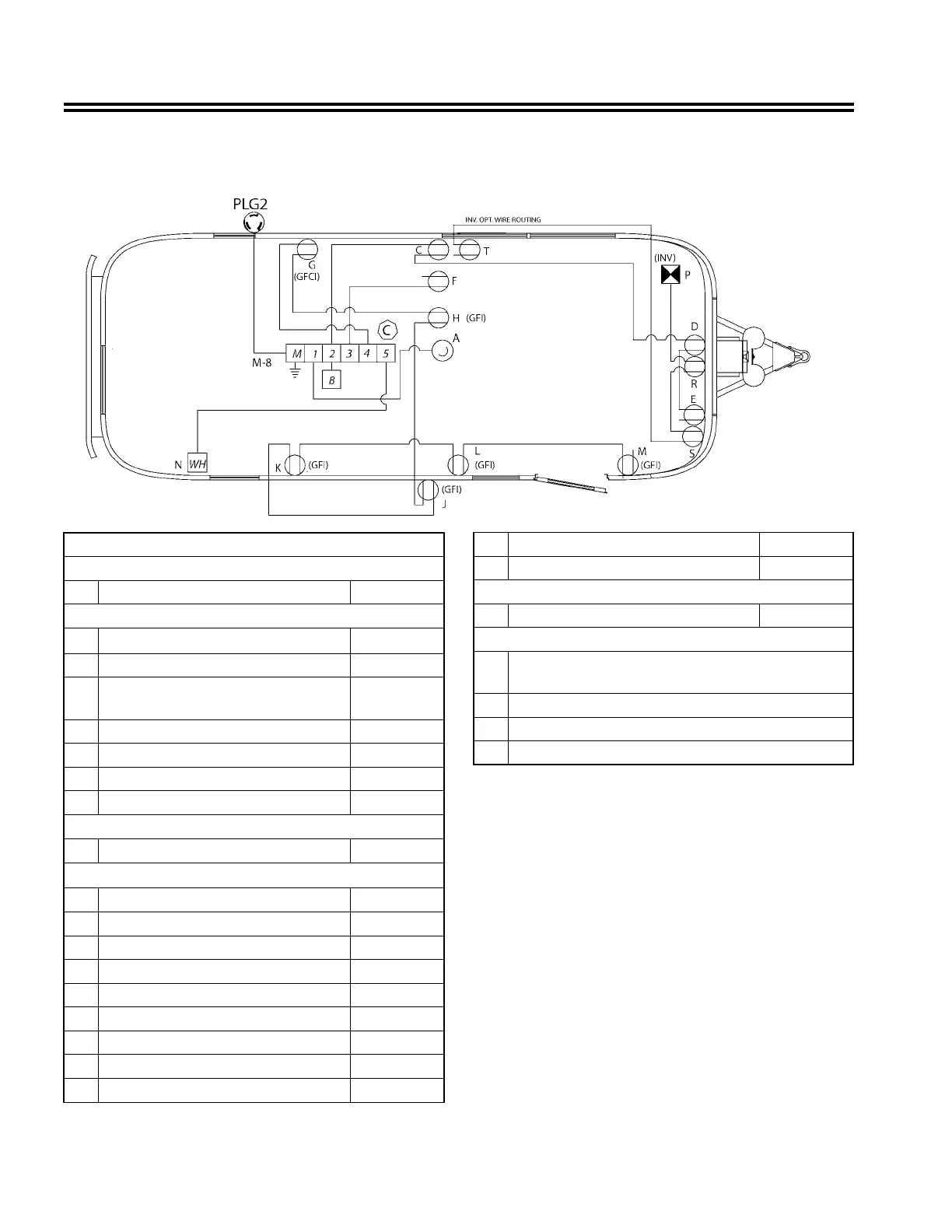

Main Circuit, 30 Amp
Circuit 1, 20 Amp
A Air Conditioner 16.0 Amps
Circuit 2, 20 Amp (15 Amp - CSA)
B Converter (Wired Direct) 8.0 Amps
C Main Area TV Receptacle (Single) 1.5 Amps
C Main Area TV Receptacle (Single)
- CSA
1.0 Amps
D Dinette Receptacle 1.5 Amps
D Dinette Receptacle - CSA 1.0 Amps
E Blu-Ray Player Receptacle 1.5 Amps
E Blu-Ray Player Receptacle - CSA 1.0 Amps
Circuit 3, 20 Amp (15 Amp - CSA)
F Microwave Receptacle 12.0 Amps
Circuit 4, 20 Amp (15 Amp - CSA)
G Bathroom Receptacle (GFI) 1.5 Amps
G Bathroom Receptacle (GFI) - CSA 1.0 Amps
H Refer Receptacle (Single) 2.7 Amps
J Outside Receptacle 1.5 Amps
J Outside Receptacle - CSA 1.0 Amps
K Bedroom/TV Receptacle 1.5 Amps
K Bedroom/TV Receptacle - CSA 1.0 Amps
L Galley Receptacle 1.5 Amps
L Galley Receptacle - CSA 1.0 Amps
M Entrance Receptacle 1.5 Amps
M Entrance Receptacle - CSA 1.0 Amps
Circuit 5, 20 Amp (15 Amp - CSA)
N Water Heater (Wired Direct) 12.0 Amps
5 Amp DC to AC Inverter Circuit
P 600 Watt Inverter, 7 Amp Breaker, 10 Amp
Transfer Switch
R Inverted Dinette Receptacle
S Inverted Blu-Ray Receptacle
T Inverted Main Area TV Receptacle (Single)
